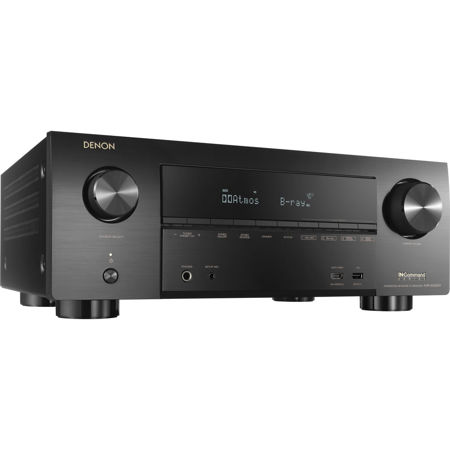

Denon AVR-X3500H 7.2-Channel 4K Ultra HD Receiver with 3D Audio

SKU: DENAVRX3500H

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Scott S : Is this a brand new item in a sealed box? Are you guys authorized dealers? Thank-you TANDREW R : I'm not sure I understand your question. The item in this product listing is new (not used or refurbished). Items we sell are NEW unless otherwise indicated. As with most of the equipment we sell, Adorama Camera is an authorized Denon dealer

Reviews about this item

Review Summary

Denon AVR-X3500H Specifications

Amplifier

Amplifier

Jump to...
  • Channels

    7.2

  • Output Power

    105W per channel at 8 Ohms, 20 Hz to 20 kHz, 0.08% THD

  • Object-Based Audio Support

    Dolby Atmos (up to 5.1.2), DTS:X (up to 5.1.2), DTS Virtual:X

  • Pass-Through

    4K/60 Hz, 4:4:4 color resolution, HDR10, HLG, Dolby Vision and BT.2020

  • HDCP Version

    2.2

  • Tuner

    AM / FM

  • Wireless Connectivity

    Bluetooth, dual-band Wi-Fi, Apple AirPlay 2

  • Inputs

    8x HDMI (1 front)
    2x optical TOSLINK
    2x digital coaxial
    2x component video
    3x composite video
    6x stereo RCA audio (1 phono with ground screw)
    1x USB (front)

  • Outputs

    3x HDMI
    1x component video
    2x subwoofer pre-out
    1x Zone 2 stereo pre-out
    1x 7-channel pre-out
    1x 1/4" / 6.35 mm headphone out (front)

  • Other Ports

    1x 1/8" / 3.5 mm setup microphone input (front)
    2x Wi-Fi / Bluetooth antennas
    1x FM antenna
    1x AM antenna
    1x Ethernet LAN
    1x 1/8" / 3.5 mm IR remote in
    1x 1/8" / 3.5 mm IR remote out
    1x RS-232C DE-9
    1x 1/8" / 3.5 mm 12 VDC / 150 mA trigger out

  • Speaker Connectors

    7x color-coded binding post pairs

  • HDMI CEC

    Yes

General

Jump to...
  • Power Requirements

    120 VAC, 60 Hz

  • Dimensions (WxHxD)

    17.1 x 6.6 x 15" (43.43 x 16.76 x 38.10cm)

  • Weight

    23.8 lbs (10.80kg)

  • UPC Code

    883795004589

About Denon AVR-X3500H

The 7.2-channel AVR-X3500H 4K Ultra HD AV receiver supports Dolby Atmos, DTS:X and passes-through Dolby Vision, HDR10 and HLG. An advanced HDMI section (8 in/3 out) supports HDCP 2.2 processing on all ports and Enhanced Auto Return Channel (eARC). Stream Spotify, Pandora, Tidal and more with HEOS built-in, unparalleled music playback options, thanks to our built-in HEOS technology, Apple AirPlay 2 and Amazon Alexa voice compatibility for seamless control. Featuring three-dimensional audio formats Dolby Atmos, DTS:X and DTS Virtual:X, the AVR-X3500H powers exceptional home theater.

The AVR-X3500H supports the latest video technologies Dolby Vision, HDR10, HLG and 4K Ultra HD. An advanced HDMI section (8 in/3 out) supports HDCP 2.2 processing on all ports and Enhanced Auto Return Channel (eARC). Stream Spotify, Pandora, Tidal and more with HEOS built-in or Bluetooth. Features Amazon Alexa voice compatibility, an award-winning Denon Setup Assistant and provides a seamless setup experience with advanced remote monitoring suite. Ideal for custom integrations and enthusiasts alike, the AVR-X3500H features "ihiji Invision" remote system management technology and "Domotz Pro" remote monitoring and management technology reduced downtime.

Amazing 3D-Sound
Enjoy a superb surround sound experience with the latest audio formats including Dolby Atmos and DTS:X. The AVR-X3500H's 7 amplifier design means you can run two dedicated overhead speakers in a 5.2.2 configuration.

Blockbusting 3D-Sound
Immerse yourself in multi-dimensional audio with Dolby Atmos, DTS:X and DTS Virtual:X.

Dolby Atmos

Sound In The Right Place
Feel every dimension in Dolby Atmos. Dolby Atmos transports you into the story with moving audio that flows all around you with breathtaking realism. Enjoy a 5.2.2 surround sound speaker system using Dolby Atmos elevation speakers or dedicated overhead speakers, for the ultimate home theater experience. Includes Dolby Surround upmixer for legacy content.

DTS:X

Be Closer To The Action
DTS:X immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favorite movies. The included DTS Neural:X gives your movies, games and music a realism unmatched by traditional 5.1 surround sound.

DTS Virtual:X

Life-like Sound Without Dedicated Height Speakers
DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 5.1, 7.1 or 2.1 speaker arrangement.

Geared Up For 4K Ultra HD
Enjoy your favorite movies, shows and games with the best picture quality available.

Advanced HDMI Video Section With EARC
The latest HDMI specs for the best home theater experience. All eight HDMI inputs - and three HDMI outputs - feature HDCP 2.2 support that lets you enjoy copy-protected content uninhibited. Watch movies and shows with 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC (enabled via firmware update) 21:9 video, 3D and BT.2020 pass-through support for exceptional color, clarity and contrast. Certified by the Imaging Science Foundation, the AVR X3500H features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes.

HDR / Dolby Vision

Brilliant Picture Quality
The AVR-X3500H supports High Dynamic Range (HDR) video format, Dolby Vision and HLG (Hybrid Log-Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast and color. HLG offers HDR technology over broadcast content.

Advanced Sound Processing
Experience extraordinary sound quality from both music and movies.

DSP

TV Connectivity
Incredible power for your music and movie needs. The AVR-X3500H includes an advanced DSP (Digital Sound Processor) chip for tremendous power processing. With four 300MHz DSP cores that are capable of processing over one billion computations per second, the AVR-X3500H supports the latest video, sound and processing needs.

High-resolution Audio Support
Enjoy superb audio fidelity with your favorite high-resolution audio tracks. The AVR-X3500H with AKM 32-bit D/A converters features high resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/192-kHz. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB or over network sources. The AVR-X3500H also supports other file types such as MP3 and WMA.

Phono Input For Turntable / Vinyl Support
With the included phono input, the AVR-X3500H lets you connect your turntable and play vinyl records. Enjoy your vintage collection with exceptional quality and sound.

Dual Subwoofer Outputs
Immerse yourself in evenly distributed, accurate bass. The AVR-X3500H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips - just powerful, room-filling bass.

Multi-source, Multi-room
With the Denon AVR-X3500H, it's possible to enjoy 5.1 channel surround sound in one room and a separate source or music stream in another. Watch a movie in one room while another family member listens to music in a different zone without interruption.

Easy Setup Experience
The included AVR-X3500H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X3500H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step-by-step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.

Smart TV

TV Connectivity
Control the Denon AVR-X3500H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the AVR's setup menu and four Quick Selects.

Audyssey MultEQ XT32

Audyssey Suite
The AVR-X3500H easily guides you through the set-up process to ensure the most accurate configuration. Optimize all settings for the best possible sound and video quality with your system from the get-go. The most advanced Audyssey MultEQ XT32 room measurement system includes Audyssey Dynamic Volume, Dynamic EQ, LFC (Low Frequency Containment) and SubEQ HT. For the best sound in every room, use the Audyssey MultEQ Editor app, which takes you under the hood to set the AVR-X3500H to your exact specifications.

Connectivity

Built-in Bluetooth, Wi-Fi and Airplay 2 Capability
The heart of your wireless network. With Bluetooth and Wi-Fi wireless streaming connectivity, the Denon AVR-X3500H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.

Denon AVR Remote App For Seamless Control
Better control in your back pocket. The free Denon AVR Remote for iOS and Android makes using the AVR-X3500H even easier - adjust volume, turn it on or off, mute the music, select a source or switch to HEOS. Download the free Denon AVR Remote to your smartphone or tablet today.

Quick Selects for User-friendly Audio Tuning
The Denon AVR-X3500H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-Ray, media players and more and the AVR-X3500H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AVR remote for faster control.

12V Trigger Output
Whether it's a cooling fan or a projector control, the AVR-X3500H comes with a 12v trigger output that operates even when the AVR is on standby.

Support For Major Voice Control Agents
Enjoy effortless voice control and total flexibility from the leading voice agents. Speak commands with Amazon Alexa , Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice agents or pick a favorite to use - the choice is yours. Functionality varies by voice agent.

HEOS Multi-room Streaming
Enjoy your favorite music in any room of your home wirelessly with built-in HEOS technology. Play the same song in every room or select a different song for each connected room - the choice is yours. Also works with Amazon Alexa providing cutting-edge voice control and incredible sound for all your home entertainment. Stream music stored on your home network - connect to HEOS wireless speakers or other HEOS-enabled receivers and listen throughout the whole house. Enjoy music from TuneIn, Internet Radio, Pandora, Spotify, Amazon Prime Music, iHeartRadio, SiriusXM, SoundCloud, Tidal, Napster or Deezer.

What's in the box:

  • Denon AVR-X3500H 7.2-Channel 4K Ultra HD Receiver with 3D Audio
  • Remote Control with Batteries
  • 2x Wi-Fi / Bluetooth Antennas
  • FM Antenna
  • AM Antenna
  • Audyssey Microphone
  • Cardboard Microphone Stand
  • Wire Labels
  • Quick Start Guide
  • Denon 3 Year Limited Warranty
