Denon Pro DN-470A Specifications

  • Total Harmonic Distortion

    < 0.1%

  • Frequency Response

    100 Hz - 15 kHz (0 +/-1 dBv)

  • Signal to Noise Ratio

    > 95 dB

  • Channel Separation

    > 70 dB

  • Input Sensitivity

    0.9 - 1.1 V (0 +/-1 dBv)

  • Input Impedance

    20 KOhms balanced or 10 KOhms unbalanced

  • Connectors

    (8) Euroblock channel outputs - (2) per channel (70V, 100V)
    (4) Euroblock channel inputs (ground, -, +)
    (1) IEC AC power inlet

  • Power

    Connection: IEC
    Input Voltage: 100 - 240 VAC, 50/60 Hz

  • Dimensions (WxDxH)

    19 x 11.1 x 1.7" (48.26 x 28.19 x 4.32cm)

  • Weight

    10.4 lbs (4.72kg)

  • UPC Code

    694318023921

About Denon Pro DN-470A

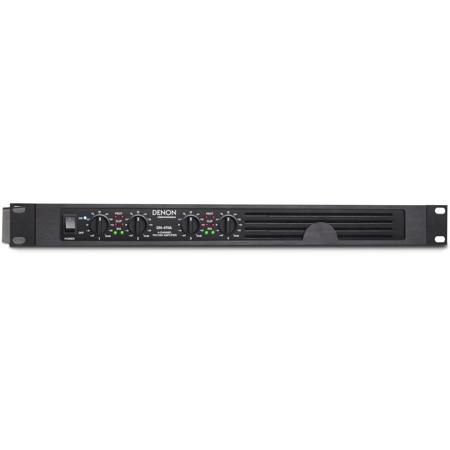

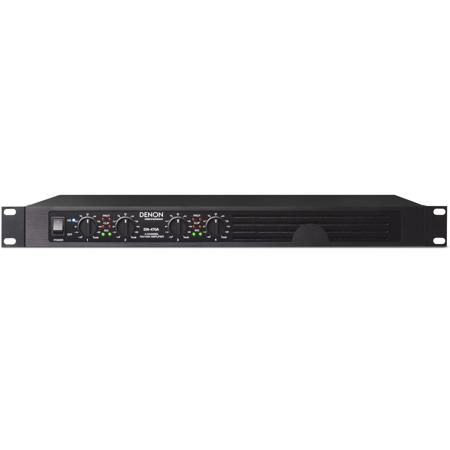

The DN-470A 4-Channel 70V/100V Amplifier is designed for contractor/install applications and only for installed speaker systems requiring 70V/100V inputs. This very versatile, one rack space, 120W per channel amplifier has built-in short-circuit protection and LED indicators for signal present, clipping status and thermal interruption on the front panel. Engineered strictly for the distribution of multiple 70V/100V speaker systems over long cable runs, such as in-ceiling speakers, surface-mount speakers and paging horns.

Denon Pro DN-470A Features

  • 4-Channel Class-D amplifier designed for 70V/100V applications
  • 120W per channel
  • High-current switching power design
  • Euroblock inputs and outputs
  • Separate gain controls for each channel
  • Signal, clipping and thermal interruption indicators
  • Short-circuit and open-circuit protection

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Denon Pro DN-470A 4-Channel 120W 70V/100V Amplifier
  • 2x 6-Pin Euroblock Connectors
  • 4x 4-Pin Euroblock Connectors
  • Power Cable
  • Rack Ears with Screws
  • User Guide
  • Safety & Warranty Manual
  • Denon Pro 1 Year Limited Warranty
