Dell P2016 Specifications

Display

Display

Jump to...
  • Viewable image size

    49.40cm (19.5") (diagonal)

  • Active display area

    Horizontal: 418.61mm (16.48")
    Vertical: 262.35mm (10.33")

  • Maximum resolution

    1440 x 900 at 60Hz

  • Aspect ratio

    16:10

  • Pixel pitch

    0.2915 x 0.2915mm

  • Brightness

    250 cd/m2 (typical)

  • Color gamut

    85% (typical)

  • Color depth

    16.7 million colors

  • Contrast ratio

    1000:1 (typical)

  • Dynamic contrast ratio

    2 million:1 (max)

  • Viewing angle

    Vertical/horizontal: 178 deg. / 178 deg. (typical)

  • Response time

    Fast mode: 6 ms gray-to-gray (typical)
    Normal mode: 8 ms gray-to-gray (typical)

  • Panel technology

    In-plane switching, anti-glare with 3H hardness

  • Backlight

    LED

  • Display Type

    Widescreen Panel Display

  • Audio Output

    No

Connectivity

Jump to...
  • Connectors

    1x DisplayPort 1.21, 1x VGA, 2x USB 2.0

  • Stand

    Height-adjustable stand, tilt (typical: 5 deg. forward or 21 deg. backward), pivot, swivel and built in cable management

  • VESA mounting support

    Dell Quick Release feature (100 mm x 100 mm)

  • Security

    Security lock slot (security lock not included)

  • AC input voltage/frequency/current

    100 to 240 VAC/50 or 60 Hz +/- 3 Hz/1.5 A (max)

  • Power consumption

    16W (typical)
    Standby/sleep mode: <0.3 W

General

Jump to...
  • Preset Display Area (HxV)

    109821.81 sq mm (170.22 sq inch)

  • Compliant Standards

    ENERGY STAR
    EPEAT Gold
    TCO

  • Dimensions (HxWxD)

    With stand:
    Compressed: 351 x 455.2 x 180mm (13.82 x 17.92 x 7.09")
    Extended: 481 x 455.2 x 180mm (18.94 x 17.92 x 7.09")
    Without stand:
    299 x 46.5 x 455.2mm (11.77 x 1.83 x 17.92")

  • Weight

    Panel only: 2.34kg (5.16 lbs)
    With stand: 4.42kg (9.74 lbs)

  • UPC Code

    884116186014

About Dell P2016

See more. Do more
Optimize collaboration and the viewing of special applications with a reliable, highly adjustable monitor featuring wide viewing angles and a 16:10 aspect ratio.

A bigger view, top-to-bottom

Get larger screen real estate
Work easily on a 19.5" 16:10 screen that has 4.79% more active viewing area than a 19" 16:10 screen.

Collaborate on one screen
An ultra-wide 178 deg. /178 deg. viewing angle ensures that imagery stays sharp and colors are consistent for you and viewers sitting next to you.

Get more from custom applications
If your office is running applications designed to support a 16:10 aspect ratio, the Dell 20 Monitor - P2016 displays those applications the way they were intended, helping to maximize productivity across your office.

Convenient and easy to use

Full adjustability
Work comfortably with tilt, pivot, swivel and height adjustment capabilities.

Easy integration
A VGA port makes it easy to connect to legacy PCs.

Digital connectivity

Connect to newer PCs using DisplayPort 1.2 or to an external keyboard, mouse or hard drive with two USB 2.0 ports.

Designed to be reliable and eco-conscious

Pixel perfection
The Dell 20 Monitor - P2016 comes with our Premium Panel Guarantee. Should you experience a single bright pixel on your monitor during its warranty period, you will receive a replacement panel.

Eco-conscious design

The Dell 20 Monitor is a BFR/PVC-free monitor (excluding cables) and it has an arsenic-free and mercury-free panel. Plus it uses more than 25% post-consumer recycled materials in its chassis. It also meets the latest regulatory and environmental standards, including ENERGY STAR, EPEAT Gold, CEL and TCO Certified Displays.

What's in the box:

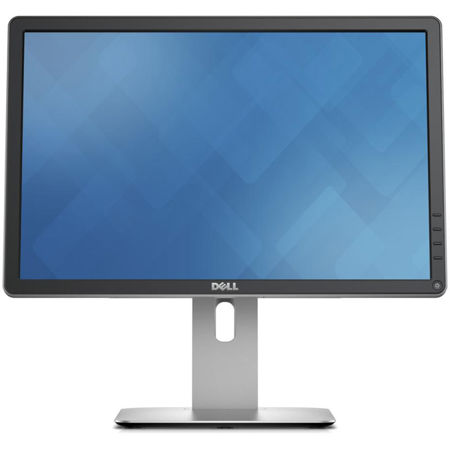

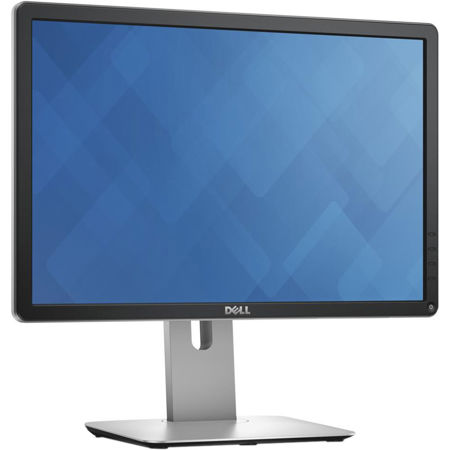

  • Dell P2016 19.5" Widescreen IPS LED Monitor
  • Stand
  • Cable Cover
  • Power Cable
  • DisplayPort Cable
  • USB 2.0 Upstream Cable
  • Divers and Documentation Media (CD)
  • Quick Setup Guide
  • Safety and Regulatory Information
  • Dell 3 Year Advanced Exchange Service and Hardware Limited Warranty (Premium Panel Guarantee)
