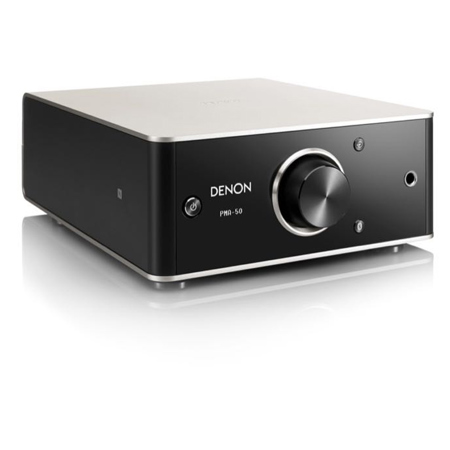

Denon PMA-50 Digital Amplifier with USB-DAC and Bluetooth

SKU: DEPMA50

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Denon PMA-50 Specifications

  • Rated output

    Both channels driven
    25 W+25 W (8 Ohms /ohms, 1 kHz, T.H.D. 0.1 %)
    50 W+50 W (4 Ohms /ohms, 1 kHz, T.H.D. 1.0 %)

  • Output connectors

    Speaker: 4-16 Ohms /ohms
    Headphones: Dia. 6.3 mm jack

  • Total harmonic distortion

    0.004 % (Digital in, Rated output -3 dB, 8 Ohms /ohms, 1 kHz

  • S/N ratio

    110 dB (Digital in, 25 W, 8 Ohms /ohms, 1 kHz, IHF-A)

  • Digital input signal: Audio formats

    Digital audio interface (Linear PCM)

  • Digital input signal: Coaxial input

    0.5 Vp-p/50Ohms

  • Digital input signal: Optical input

    More than - 27 dBm

  • Digital input signal: Wavelength

    660 nm

  • Input sensitivity / Input impedance

    AUX: 0.13V / 22kOhms

  • Bluetooth: Communication system

    Bluetooth version 3.0

  • Bluetooth: Transmission power

    Maximum 2.5 mW (Class2)

  • Bluetooth: Maximum communication range

    Approx. 32.8 ft/10 m in line of sight

  • Bluetooth: Frequency band

    2.4 GHz band

  • Bluetooth: Modulation method

    FHSS (Frequency-Hopping Spread Spectrum)

  • Bluetooth: Supported profiles

    A2DP 1.3/AVRCP 1.5

  • Bluetooth: Supported codecs

    aptX Low Latency/AAC/SBC

  • Power supply

    AC120 V, 60 Hz

  • Power consumption

    35 W

  • Power consumption in standby mode

    0.2 W

  • Weight

    2.5kg / 5.51lbs

  • UPC Code

    883795003469

About Denon PMA-50

The Denon amplifier section incorporates DDFA technology from CSR. The output stage circuit has a discrete construction which realizes higher S/N and lower distortion compared to conventional class D amplifiers. Additionally, the high 50 W/4 Ohms output which exceeds the size of the housing lets you enjoy Denon's ideal audio playback environment that delivers "delicate yet powerful sound".

Advanced AL32 Processing
Equipped with Advanced AL32 Processing, Denon's unique analog wave reproduction technology. Reproducibility of weak signals is increased by expanding the 16-bit digital data to 32 bits.

Supports playback of high resolution audio files
DSD signals and up to 192 kHz/24 bit PCM signals are supported. You can enjoy high-quality audio playback from this unit by inputting music files into this unit from a computer via USB connection.

Wireless connection with Bluetooth enabled devices
You can connect Bluetooth enabled devices such as smartphones and tablets with this unit to listen to music while browsing email and Web sites in the Internet away from this unit. In addition, this unit supports high quality audio codecs, aptx and AAC, to enjoy music and games with a powerful sound.

NFC function included that enables one touch Connection
You can just touch this unit with an NFC enabled smartphone or tablet to turn on power to this unit and establish the Bluetooth connection.

Supports vertical installation
This unit can be installed vertically or horizontally. The display automatically rotates to match the installation orientation.

What's in the box:

  • Denon PMA-50 Digital Amplifier
  • Quick Start Guide
  • Owner's Manual
  • Safety Instructions
  • Notes on Radio
  • Power Cord
  • USB Cable
  • Remote Control Unit
  • Caps
  • Denon Warranty
