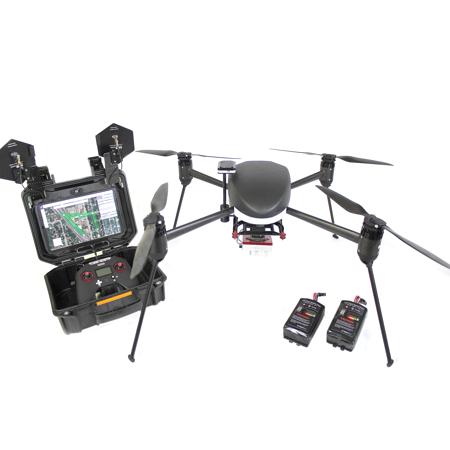

Draganfly Innovations Commander2 Ready to Fly System Ag Package with Rededge MX Mapping Camera System

SKU: DFCMDR2AG

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Draganfly Innovations Commander2 Specifications

Payload

Payload

Jump to...
  • Sensor

    MicaSense RedEdge-MX multispectral sensor

  • MicaSense Rededge MX sensor Wavelengths

    Blue: 475nm center, 32nm bandwidth
    Green: 560nm center, 27n bandwidth
    Red: 668nm center, 14nm bandwidth
    Rededge: 717nm center, 12nm bandwidth
    NIR: 842nm center, 57nm bandwidth

  • Stabilized Gimbal

    2 axis

Commander2

Jump to...
  • Automated Mission Types

    Grid and 90degree double grid
    Corridor Mapping
    Target Stare Point
    Waypoint

  • Max climb rate

    393'/min (2m/s)

  • Max descent rate

    393'/min (2m/s)

  • Max turn rate

    90degrees/sec

  • Max mission speed

    64km/hr (18m/s)

  • Minimum air speed

    0kmr/hr (0m/s)

  • Launch type

    VTOL

  • Typical flight time

    30 min (with payload)

  • Ceiling ASL

    8,000' Density Altitude (2,438m)

  • Top Diameter

    42" (107cm)

  • Payload Capacity

    2.2 lbs (1kg)

  • Max Take-off Weight

    8.26 lbs (3.75kg)

  • Battery Info

    Required, included

  • Battery Material

    lithium

  • Battery Quantity

    2

  • Battery Type

    non-universal

  • Dimensions (L x W x H)

    34.4 x 34.4 x 11.6" (87.3 x 87.3 x 29.4cm)

  • Weight

    6 lbs (2.75kg) (with battery)

3 Accessories for Draganfly Innovations Commander2 Ready to Fly System Ag Package with Rededge MX Mapping Camera System

  • All Accessories (3)
  • Landing Gear (1)
  • Light And Light Accessories (1)
  • Safety & Security Accessories (1)

About Draganfly Innovations Commander2

The Draganflyer Commander2 Ag-Pro Package includes everything you need to perform crop health assessment, irrigation monitoring and yield optimization. Combining the MicaSense RedEdge-MX multispectral sensor and the Draganflyer Commander2 UAV, this Ag Pro Package is ideal for projects requiring long flight times, a high level of data resolution and accuracy, and the utmost data security. The automated flight and data collection process makes crop monitoring efficient and repeatable allowing for creation of accurate vegetation indices throughout the growing season. The Rededge MX is integrated on 2 axis stabilized gimbal to keep the sensor oriented NADIR throughout flight for consistent overlap and repeatable results.

Draganfly Innovations Commander2 Features

  • Designed, Manufactured, and Supported in North America
  • Flexible mission planning and automated flight
  • 2 axis stabilized gimbal with remote control of tilt. Gimbal is stabilized on pitch and roll only to maintain NADIR orientation for mapping
  • Remote operation of shutter
  • Incorporates MicaSense DLS2
  • MicaSense Rededge MX sensor

Key Features

  • Designed, Manufactured, and Supported in North America
  • Flexible mission planning and automated flight
  • Incorporates MicaSense DLS2
  • MicaSense Rededge MX sensor
  • Remote operation of shutter

What's in the box:

  • Draganfly Commander2 Ready to Fly Airframe
  • Ground Control Basestation with and Held Controller and Display Tablet
  • DGroundControl Mission Planning Software
  • 2x Draganfuel 6750mAh 4S Flight Batteries
  • Hardshell Transport Case
  • Spare Propeller Pair
  • MicaSense Rededge MX with Calibration Panel
  • Quick Attach 2 Axis Stabilized Mapping Gimbal
  • Payload Transport Case
  • Draganfly 1 Year Limited Warranty
