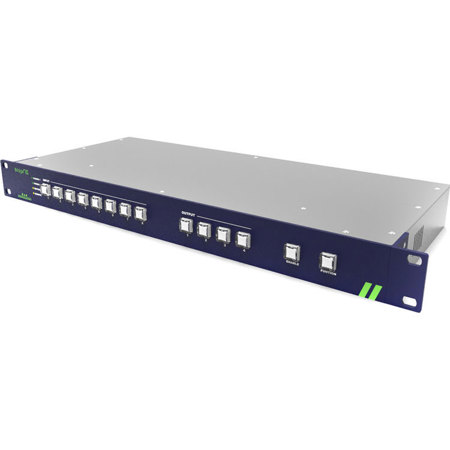

Digital Forecast Bridge RS 8x4 3G/HD/SD-SDI Matrix Routing Switcher with 1x HDMI Output

SKU: DFRSSDI8X4 MFR: RS SDI 8X4
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 SDI sources with this reliable video switcher.
  • Enjoy wide compatibility with SD, HD, and 3G-SDI formats for versatile use.
  • Route high-quality video signals with low latency using this SDI matrix.
  • Easily manage your video distribution with the intuitive RS-422 remote control.
  • This video switcher supports SMPTE standards for professional broadcasting needs.
  • Utilize the HDMI output for convenient monitoring and display options.
See More Product Details
Special Order?Estimated to Ship: 01/16/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What video formats does the 8x4 3G/HD/SD SDI Matrix Routing Switcher support?

The switcher supports SD, HD, and 3G SDI sources, making it compatible with a wide range of video formats.

Can the 8x4 3G/HD/SD SDI Matrix Routing Switcher be controlled via a network?

Yes, the switcher features APC network control, allowing for seamless integration and control within your existing network.

Does the 8x4 3G/HD/SD SDI Matrix Routing Switcher maintain signal quality during routing?

Absolutely, the switcher offers reclocked SDI output, ensuring that your video signals maintain their quality and integrity during the routing process.

What is the purpose of the vertical sync feature in the 8x4 3G/HD/SD SDI Matrix Routing Switcher?

The vertical sync feature ensures smooth, uninterrupted video playback by synchronizing source signals. It's particularly useful in scenarios such as video production and live events.

Is the 8x4 3G/HD/SD SDI Matrix Routing Switcher compatible with HDMI?

Yes, in addition to SDI video I/Os, this switcher also features a single HDMI output, expanding its compatibility to accommodate a wider array of devices.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Forecast Bridge RS SDI Switcher Specifications

Connections

Connections

Jump to...
  • SDI Video Input

    8x BNC SD/HD-SDI, 3Gb/s SDI and ASI

  • SDI Video Output

    4x BNC SD/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking

  • HDMI Output

    1x HDMI Out

  • Remote Control

    RS-422 (RJ45)

  • Reference Input

    1x BNC B.B, TRI

  • Net

    TCP/IP (RJ45)

Electrical

Jump to...
  • Voltage

    90 - 240V AC 50/60Hz

  • Power Dissipation

    < 28W (12V DC, 3.33A)

  • Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Standards

Jump to...
  • SD Format Support

    NTSC (480i, 59.94) and PAL (576i, 50)

  • HD Format Support

    720p (60/59.94/50)
    1080i (60/59.94/50)
    1080P (30/29.97/25/24/23.98)
    1080p (60/59.94) 3G

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B

  • SDI Video Sampling

    4:2:2 and 4:4:4.

  • SDI Video Rates

    SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD SDI

  • SDI Auto Switching

    Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard

General

Jump to...
  • Country of Origin

    China

  • Dimensions (W x H x D)

    12.99 x 1.57 x 4.33" (330 x 40 x 110mm)

  • Weight

    3.42 lbs (1.55kg)

About Digital Forecast Bridge RS SDI Switcher

Overcome your video routing challenges with the advanced 8x4 3G/HD/SD SDI Matrix Routing Switcher with 1x HDMI Output. This high-tech device, brought to you by Digital Forecast, is a sophisticated solution for managing multiple video sources. It boasts an impressive 8x4 SDI video I/Os, making it an ideal choice for those seeking a routing switcher with a high number of inputs.

Designed to support SD, HD, and 3G SDI sources, this innovative switcher is compatible with a broad range of video formats, enhancing its versatility. It's not just about SDI; this state-of-the-art switcher also features a single HDMI output, expanding its compatibility to accommodate a wider array of devices.

The switcher is equipped with APC network control, allowing for seamless integration and control within your existing network. It also offers reclocked SDI output, ensuring that your video signals maintain their quality and integrity during the routing process.

One of the standout features of this switcher is its ability to vertically sync source signals. This function ensures smooth, uninterrupted video playback, making it an invaluable tool for video production, live events, and any application that requires the routing and switching of multiple video sources to a single output.

In a market saturated with switchers, the 8x4 3G/HD/SD SDI Matrix Routing Switcher with 1x HDMI Output stands out for its advanced features, superior compatibility, and high input capacity. It's more than just a switcher; it's a comprehensive solution for your video routing needs.

Digital Forecast Bridge RS SDI Switcher Features

  • Support SMPTE 292M, SMPTE 310M, SMPTE 259M, SMPTE 425M
  • Re-clocking
  • Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)
  • 3G/HD/SD-SDI 8 in x 4 out
  • 1 HDMI Output
  • Auto equalizing (HD grade: Compensate for up to 100m, SD: Up to 300m of Belden 1694 Cable)
  • RS-422 deck control ports (RJ45)
  • DC 12V 3.33A Power supply

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between 8 SDI sources with this reliable video switcher.
  • Enjoy wide compatibility with SD, HD, and 3G-SDI formats for versatile use.
  • Route high-quality video signals with low latency using this SDI matrix.
  • Easily manage your video distribution with the intuitive RS-422 remote control.
  • This video switcher supports SMPTE standards for professional broadcasting needs.
  • Utilize the HDMI output for convenient monitoring and display options.

What's in the box:

  • Digital Forecast Bridge RS 8x4 3G/HD/SD-SDI Matrix Routing Switcher
  • DC 12V 3.33A Power Supply
  • Digital Forecast 2 Year Limited Warranty
