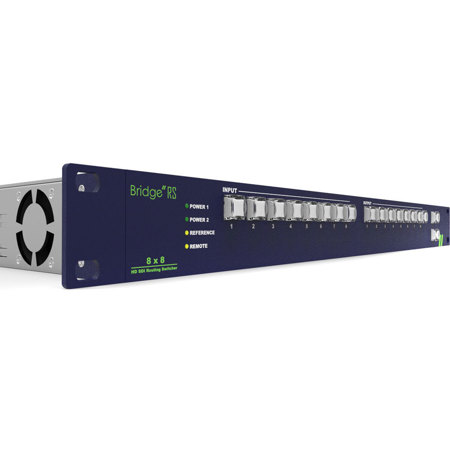

Digital Forecast 8x8 3G/HD/SD SDI Matrix Routing Switcher

SKU: DFRSSDI8X8 MFR: RS SDI 8X8
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 HD/SD/ASI inputs with this reliable SDI matrix switcher.
  • Enjoy wide compatibility with NTSC, PAL, 720p, and 1080p formats for versatile use.
  • Control remotely via RS422 port for convenient operation of your video switcher.
  • Ensure stable performance in various conditions with a wide operating temperature range.
  • Compact 19-inch design fits easily into any rack for efficient space utilization.
  • Dual 12VDC power supply ensures continuous, dependable performance for live broadcasts.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Digital Forecast Routing Switcher Specifications

  • Inputs

    8x HD/SD/ASI input (SD/SD/3G)
    8x HD/SD/ASI input (SD/SD/3G)

  • LED

    Front status

  • Remote

    Remote controller via RS422 port

  • Power Supply

    Dual 12 VDC, 3A

  • Formats

    NTSC (480i 59.94), PAL (576i 50), 720p (60/59.94/50), 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98), 1080p (60/59.94) 3G

  • Operating Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Humidity

    0 to 95% RH, non-condensing

  • Power Consumption

    25W

  • Dimensions (WxHxD)

    483 x 91 x 44mm (19.02 x 3.58 x 1.73")

  • Weight

    1.5kg (3.31 lbs)

About Digital Forecast Routing Switcher

After extensive research and development, we present the 8x8 3G/HD/SD SDI Matrix Routing Switcher, a broadcast-grade device designed to meet all your signal management requirements. This advanced switcher boasts eight SDI video inputs and outputs, ensuring seamless integration with your existing setup.

Engineered to support a wide range of signal sources, this switcher is compatible with SD, HD, and 3G SDI, making it a versatile addition to any professional broadcast environment. The RS 8x8 Routing Switcher is not just a device, but a solution that brings together a multitude of signal sources without compromising on quality or performance.

One of the standout features of this switcher is its DIP switch configuration. This allows for easy setup and adjustments, providing you with the flexibility to tailor the device to your specific needs.

In addition, the RS 8x8 Routing Switcher comes with APC network control. This feature enables you to manage and control your device remotely, adding a layer of convenience to your operations.

The switcher also offers reclocked SDI output. This ensures that your signals maintain their integrity, even over long distances. This feature is crucial for maintaining the high-quality output that is expected in professional broadcasting.

Finally, the vertical sync of source signals is another key feature of this switcher. This ensures that all your video feeds are perfectly synchronized, providing a smooth and consistent viewing experience.

In summary, the 8x8 3G/HD/SD SDI Matrix Routing Switcher is a high-performance, feature-rich device that is designed to meet the needs of professional broadcasters. Its combination of versatility, ease of use, and high-quality output makes it a valuable addition to any broadcast setup.

Digital Forecast Routing Switcher Features

  • HD/SD SDI Input
  • Network control APC
  • Network EMS support via Livenet
  • Reclock SDI output
  • Dipswitch Configuration
  • State LED expression
  • 12V 3A DC Power supply (Dual)

Key Features

  • Seamlessly switch between 8 HD/SD/ASI inputs with this reliable SDI matrix switcher.
  • Enjoy wide compatibility with NTSC, PAL, 720p, and 1080p formats for versatile use.
  • Control remotely via RS422 port for convenient operation of your video switcher.
  • Ensure stable performance in various conditions with a wide operating temperature range.
  • Compact 19-inch design fits easily into any rack for efficient space utilization.
  • Dual 12VDC power supply ensures continuous, dependable performance for live broadcasts.

What's in the box:

  • Digital Forecast 8x8 3G/HD/SD SDI Matrix Routing Switcher
  • Digital Forecast 2 Year Limited Warranty
