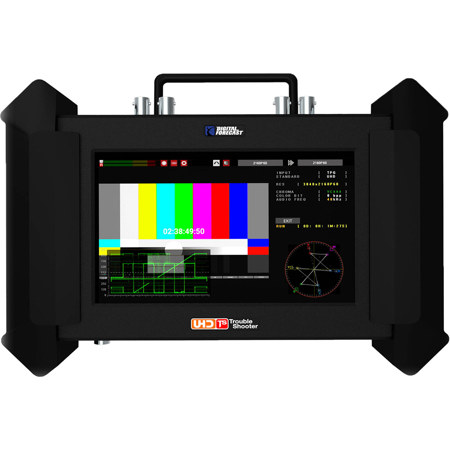

Digital Forecast Bridge UHD X_TS 12GSDI/HDMI/Optic Signal Converter w/7" Display
See all Digital Forecast items

Digital Forecast Bridge UHD X_TS 12G-SDI/HDMI/Optic Signal Converter with 7" Touchscreen Display

SKU: DFUHDXTS MFR: UHD X_TS
Be the first to review this itemAsk a Question
$5,169.00
OR
$431/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert 12G-SDI, HDMI, and optic signals with this versatile Digital Forecast Bridge UHD X_TS.
  • Monitor your video feeds with clarity on the integrated 7" touchscreen display, perfect for on-location adjustments.
  • Achieve pristine 4K video resolution up to 60fps, ensuring professional-grade output for all your projects.
  • Experience broad compatibility with SMPTE standards, making this signal converter ideal for diverse broadcast setups.
  • Enjoy flexible power options, including V-mount battery support, for reliable performance in any environment.
  • Its compact and lightweight design, at just 1.2 lbs, makes this converter highly portable for field productions.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Digital Forecast Bridge UHD X_TS Specifications

Inputs/Outputs

Inputs/Outputs

Jump to...

  • Video I/O

    Input:
    1x LC Fiber (12G-SDI)
    1x BNC (12G-SDI)
    1x HDMI 2.0

    Output:
    1x LC Fiber (12G-SDI)
    1x BNC (12G-SDI)
    1x HDMI 2.0

  • Audio I/O

    Input: 1x Block 2-Pin
    Output: 1x Block 2-Pin

  • Other I/O

    Input:
    1x USB-A
    1x Mini-USB

  • Expansion Slots

    No

Format Support

Jump to...

  • Video Resolution

    Fiber Input/Output:
    3840x2160 at 25/29.97/30/50/59.94/60 fps
    1920x1080 at 50/59.94/60 fps
    1280x720 at 50/59.94/60 fps

    BNC Input/Output:
    3840x2160 at 25/29.97/30/50/59.94/60 fps
    1920x1080 at 50/59.94/60 fps
    1280x720 at 50/59.94/60 fps

    HDMI Input/Output:
    3728x2160 at 25/29.97/30/50/59.94/60 fps
    1920x1080 at 50/59.94/60 fps
    1280x720 at 50/59.94/60 fps

  • Embedded Audio

    Fiber/HDMI/SDI

Standards

Jump to...

  • Video Standard Compliance

    SMPTE: 274M/292M/296M/424M/ST-2081/ST-2082

  • HDR Support

    No

  • Broadcast System Compatibility

    NTSC, PAL

Hardware

Jump to...

  • Media/Memory Card Slot

    Single Slot: SD (Unspecified Type)

  • Wireless

    No

Display

Jump to...

  • Display

    7" (17.78cm) (1024 x 600) LCD

Power

Jump to...

  • Power I/O

    1x Barrel (12 VDC ) Input

  • Battery Support

    1x V-Mount

  • Power Consumption

    40 W

Battery

Jump to...

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

General

Jump to...

  • Color

    Black

  • Operating Conditions

    32 to 158 Degree F (0 to 70 Degree C) up to 95% Humidity

  • Country of Origin

    China

  • Dimensions

    10.3 x 6.9 x 2.2" (261 x 174 x 57mm)

  • Weight

    1.2 lbs (560g)

Other

Jump to...

  • UPC Code

    704006295094

About Digital Forecast Bridge UHD X_TS

UHD X_TS is Multi-Platform UHD Signal Converter with Measurement and Test Pattern Generator. UHD X_TS can be effectively used in the installation and maintenance service of UHD video signal. Very handy but powerful functions of UHD X TS series enables to conveniently check a variety of UHD signal status through 7" Touch screen LCD from video display up to SDI EYE monitor and SDI Cable conditions.

Digital Forecast Bridge UHD X_TS Features

  • UHD Up/Down/Cross/Scan converter
  • Standard UHD & FHD Video signal supported (12G SDI, HDMI 2.0, 12G Optic)
  • Embedded Audio signal Monitor & Speaker out
  • EYE monitoring for SDI signal (720p, 1080i, 1080p, 2160p)
  • Test Pattern Generator (Still , Moving UHD Generator)
  • 12G SDI signal integrity check (Loss, CRC Error count)
  • HDMI 2.0 signal integrity check (Loss, Resolution, HDCP)
  • Audio Level Monitoring (Up to 8 channels)
  • 7" Touch Screen LCD (1024x600)
  • Support V-Mount Battery Plate

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert 12G-SDI, HDMI, and optic signals with this versatile Digital Forecast Bridge UHD X_TS.
  • Monitor your video feeds with clarity on the integrated 7" touchscreen display, perfect for on-location adjustments.
  • Achieve pristine 4K video resolution up to 60fps, ensuring professional-grade output for all your projects.
  • Experience broad compatibility with SMPTE standards, making this signal converter ideal for diverse broadcast setups.
  • Enjoy flexible power options, including V-mount battery support, for reliable performance in any environment.
  • Its compact and lightweight design, at just 1.2 lbs, makes this converter highly portable for field productions.

What's in the box:

  • Digital Forecast Bridge UHD X_TS 12G-SDI/HDMI/Optic Signal Converter with 7" Touchscreen Display
  • Power Adapter
  • Hard Case
  • Digital Forecast 2 Year Limited Warranty
