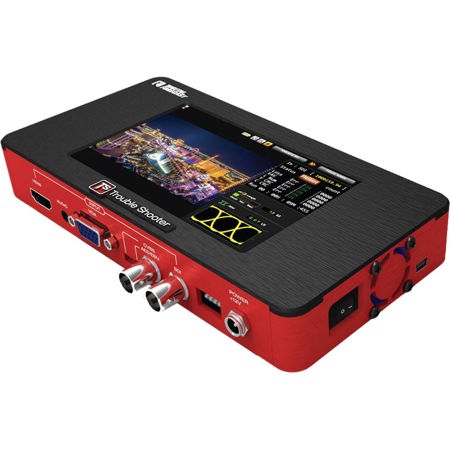

Digital Forecast Bridge X-TS Trouble Shooter Expanded Kit
See all Digital Forecast items

Digital Forecast Bridge X-TS Trouble Shooter Expanded Kit

SKU: DFXTSPK

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHRISTIAN K : It has a better rep than the marshall signal generator I was usingDEREK W : work

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Digital Forecast Bridge X-TS Specifications

  • Screen Size

    5" (12.7cm)

  • Screen Resolution

    800 x 480

  • Inputs

    1x Coaxial power
    1x BNC, SD/HD/3G-SDI
    1x BNC, composite video, AES/EBU
    1x VGA
    1x 3.5 mm stereo analog audio
    1x HDMI Type-A

  • Outputs

    1x BNC, SD/HD/3G-SDI
    1x BNC, composite video, AES/EBU
    2x HDMI Type-A (1 mirror output)
    1x VGA
    1x 3.5 mm stereo analog audio

  • HDMI Format Support

    v1.3

  • Resolution Support

    1080p 23.98/24/25/29.97/30/59.94/60
    1080i 50/59.94/60
    720p 50/59.94/60
    NTSC
    PAL

  • SMPTE Standards Supported

    SMPTE-424M, SMPTE-292M, SMPTE-274M, SMPTE-296M, SMPTE-125M

  • Power Supply

    12 VDC

  • UPC Code

    190831640060

About Digital Forecast Bridge X-TS

Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in a installation construction, maintenance service of video or audio signal. You can see the signal status to the LCD panel. Even if any one of the input signal, the converted signals are all output. Also this device has the ability to measure the built-in SDI Jitter and Cable length.

Digital Forecast Bridge X-TS Features

  • Up/Down/Cross/Scan converter
  • Multiple standard Video / Audio signal
  • (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
  • Analog audio MUX / DEMUX
  • User selectable output format
  • Test Pattern Generator (Stop screen and Moving Box screen)
  • Menu OSD function
  • Audio level check (Most 8 channels are monitored)
  • Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
  • External battery mount (Option)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Up/Down/Cross/Scan converter
  • Multiple standard Video / Audio signal
  • (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
  • Analog audio MUX / DEMUX
  • User selectable output format
  • Test Pattern Generator (Stop screen and Moving Box screen)

What's in the box:

  • X-TS Main Body
  • Hard Case
  • Power Supply
  • Stand
  • Sony Battery Plate
  • Component to VGA Adapter
  • Stereo RCA to 3.5mm Adapter
  • HDMI Cable
  • BNC SDI Cable
  • Digital Forecast 1 Year Limited Warranty
