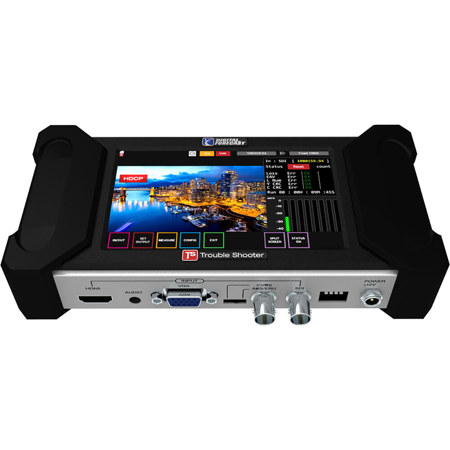

Digital Forecast Bridge X_TS V3 Multi-Platform Signal Converter with 5" Touchscreen Display

SKU: DFXTSV3 MFR: X-TS V3
Earn VIP Reward Points

Key Features

  • Seamlessly convert diverse video signals with the multi-platform signal converter.
  • Enjoy crystal-clear visuals on the integrated 5" touchscreen display for easy monitoring.
  • Effortlessly manage various video formats, including 1080p and 4K, for professional workflows.
  • Connect all your gear with extensive video inputs like HDMI, SDI, and VGA for ultimate flexibility.
  • Power your productions on the go with optional Sony L-Series battery support.
  • Achieve precise audio integration with embedded HDMI/SDI audio and analog inputs.
See More Product Details
Temporarily On Backorder?Expected Availability: 03/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Digital Forecast Bridge X_TS V3 Specifications

Inputs/Outputs

Inputs/Outputs

Jump to...
  • Video Inputs

    1x BNC (3G-SDI) Female
    1x BNC (Composite) Female
    1x DE-15/DB-15 (VGA) Female
    1x HDMI (1.3) Female

  • Audio Inputs

    1x 1/8" (3.5mm) TRS Stereo Analog Female

  • Video Outputs

    1x BNC (3G-SDI) Female
    1x BNC (Composite) Female
    1x HDMI (1.3) Female (Loop Output)
    1x DE-15/DB-15 (VGA) Female

  • Audio Outputs

    1x 1/8" (3.5mm) TRS Stereo Analog Female

  • Expansion Slots

    No

Format Support

Jump to...
  • Input/Output Video Format

    Component / HDMI / SDI:
    1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i at 50/59.94/60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps

  • Embedded Audio

    HDMI/SDI

Standards

Jump to...
  • Video Standard Compliance

    SMPTE 125M/274M/292M/296M/424M

  • HDR Support

    No

Hardware

Jump to...
  • Display Size

    5" (12.7cm)

  • Resolution

    800 x 480

  • Pixel area (W x H)

    0.135 x 0.135mm

  • Display area (W x H)

    4.25 x 2.55" (108 x 64.8mm)

  • Battery Support

    1x Sony L-Series / NP-F Type

  • Power I/O

    1x Barrel (12V DC) Input

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Country of Origin

    China

  • Dimensions (W x L x H)

    7.18 x 3.64 x 1.14" (182.4 x 92.6 x 29mm)

  • Weight

    1.16 lbs (530g)

  • UPC Code

    704006295858

About Digital Forecast Bridge X_TS V3

X_TS is Multi-Platform Signal Converter with Measurement and Test Pattern Generator. X_TS can be effectively used in the installation and maintenance service of video and audio signal. Very handy but powerful functions of X_TS series enables to conveniently check a variety of signal status through 5" LCD touch screen from video display up to SDI jitter and Cable conditions.

Digital Forecast Bridge X_TS V3 Features

  • Up/Down/Cross/Scan converter
  • Standard Video / Audio signal supported (SDI, HDMI, CVBS, Component, VGA, DVI, Analog Audio, AES / EBU)
  • Analog Audio Mux / DeMux
  • Jitter Measurement for SDI signal (720p, 1080i, 1080p)
  • Test Pattern Generator: 8 types provided
  • SDI signal integrity check (Loss, TSR, CRC, Line number)
  • HDMI signal integrity check (Loss, Resolution, HDCP)
  • Audio Level Monitoring (up to 8 channels)
  • 5" Touch Screen LCD (800x480)
  • Battery Mounting Plate for Sony and Cannon type (optional)

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly convert diverse video signals with the multi-platform signal converter.
  • Enjoy crystal-clear visuals on the integrated 5" touchscreen display for easy monitoring.
  • Effortlessly manage various video formats, including 1080p and 4K, for professional workflows.
  • Connect all your gear with extensive video inputs like HDMI, SDI, and VGA for ultimate flexibility.
  • Power your productions on the go with optional Sony L-Series battery support.
  • Achieve precise audio integration with embedded HDMI/SDI audio and analog inputs.

What's in the box:

  • Digital Forecast Bridge X_TS V3 Multi-Platform Signal Converter with 5" Touchscreen Display
  • Power Supply
  • Stereo RCA to 3.5mm Adapter
  • Digital Forecast 2 Year Limited Warranty
