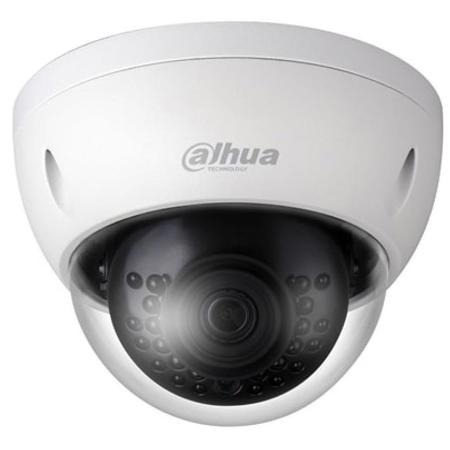

Dahua Lite 1.3MP IR MiniDome Network Camera with 2.8mm F2.0 Manual Lens

SKU: DH110E28

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua DH-IPC-HDBW11A0EN-2.8MM Specifications

  • Image Sensor

    1/3" CMOS

  • Effective Pixels

    1920(H) x 960(V)

  • ROM / RAM

    8MB / 128MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 - 1/100,000s

  • Minimum Illumination

    Color: 0.1 Lux@F2.0;
    B/W: 0.01 Lux@F2.0;
    0 Lux (IR on)

  • S/N Ratio

    More than 50dB

  • IR Distance

    Distance Up to 30m (98ft)

  • IR On/Off Control

    Auto / Manual

  • IR LEDs

    24

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    2.8mm

  • Max Aperture

    F2.0

  • Angle of View

    H: 89 Degree

  • Focus Control

    Fixed

  • Pan/Tilt Range

    Pan: 0 Degree - 355 Degree ; Tilt: 0 Degree - 65 Degree , Rotation: 0 Degree - 355 Degree

  • Compression

    H.264/MJPEG

  • Streaming Capability

    2 Streams

  • Resolution

    1.3MP (1280 x 960) / 720p (1280 x 720) /D1 (704 x 576/704 x 480) / CIF (352 x 288/352 x 240)

  • Frame Rate

    Main Stream 1.3MP (1 - 30fps)
    Sub Stream 1 D1/CIF (1 - 30fps)

  • Bit Rate Control

    CBR / VBR

  • Bit Rate

    H.264: 4K - 8192Kbps

  • Day/Night

    Auto (ICR) / Color / B/W

  • BLC Mode

    BLC / HLC / DWDR

  • White Balance

    Auto / Sunny / Night / Outdoor / Customized

  • Gain Control

    Auto / Manual

  • Noise Reduction

    3D DNR

  • Motion Detetion

    Off / On (4 Zone, Rectangle)

  • Region of Interest

    Off / On (4 Zone)

  • Smart IR

    Support

  • Digital Zoom

    16x

  • Flip

    0 Degree /90 Degree /180 Degree /270 Degree

  • Mirror

    Off / On

  • Privacy Masking

    Off / On (4 Area, Rectangle)

  • Ethernet

    RJ-45 (10/100Base-T)

  • Protocol

    IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, CGI

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    20

  • Web Viewer

    IE10

  • Management Software

    Smart PSS, DSS

  • Smart Phone

    Android, Ios

  • Certifications

    FCC (SEFD1509190-A )
    UL (E234884-A60-UL)

  • Power Supply

    12V DC +/-25%, PoE (af Class 0)

  • Power Consumption


    Max. 4W (12V DC, IR On),
    Max. 5.6W (PoE, IR On)

  • Operating Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Storage Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Ingress Protection & Vandal Resistance

    IP67, IK10

  • Casing

    Metal

  • Dimensions

    109.9mm x 81mm (4.33" x 3.19")

  • Net Weight

    0.38Kg (0.84lb)

  • UPC Code

    856920006208

About Dahua DH-IPC-HDBW11A0EN-2.8MM

The IR Megapixel Fixed MiniDome camera delivers 1.3MP resolution with a choice of 2.8mm or 3.6mm wide angle lens options. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Regions of Interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.

Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Image Flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90 Degree increments for better video optimization.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust to IP67 standards, making it suitable for indoor or outdoor environments. With its IK10 rated impact resistant design, the camera provides maximum durability against vandals making it capable of withstanding the equivalent of 55 kg (120lbs) of force.

Supporting +/-25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 8KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Streaming
With a choice of unicast or multicast streaming, bandwidth-efficient viewing, recording and third-party video management can easily be achieved. Dual streaming enables bandwidth-efficient viewing and recording. Depending on the resolution and frame rate selected on the first stream, the second stream provides a copy at a lower resolution.

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Dahua DH-IPC-HDBW11A0EN-2.8MM Features

  • Max 25/30fps@1.3MP (1280 x 960)
  • DWDR
  • True Day/Night
  • Fixed Lens 2.8mm
  • Smart IR 30m (98ft)
  • Outdoor Rated IP67

Key Features

  • Max 25/30fps@1.3MP (1280 x 960)
  • DWDR
  • True Day/Night
  • Fixed Lens 2.8mm
  • Smart IR 30m (98ft)
  • Outdoor Rated IP67

What's in the box:

  • Network Camera
  • Dahua 3 Year Limited Warranty
