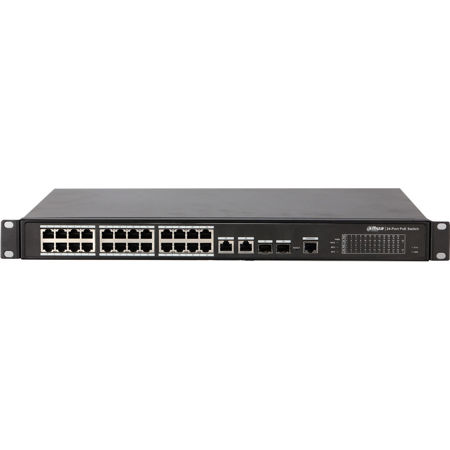

Dahua DH-PFS4226-24ET-360 24-Port Layer 2 Managed PoE Switch, 360W
See all dahua items

Dahua DH-PFS4226-24ET-360 24-Port Layer 2 Managed PoE Switch, 360W

SKU: DH42224ET360
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-PFS4226-24ET-360 Specifications

  • Ethernet Ports

    Two (2) 10/100/1000 Base-T (Combo Port)
    Two (2) 1000 Base-X (Combo Port)
    24 x 10/100 Base-T Ports (PoE Power Supply)

  • PoE Power Consumption

    Ports 1 and 2: Hi-PoE (60 W), PoE+, PoE
    Maximum per Port: <= 30 W
    Total Power Consumption: <= 360 W

  • PoE Protocol

    PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE

  • Switching Capacity

    8.8 Gbps

  • Packet Forwarding Rate

    6.55 Mpps

  • Power Requirements

    100 VAC to 240 VAC

  • Working Temperature

    14 Degree F to 131 Degree F (-10 to 55 Degree C)

  • Application Humidity

    10% to 90%

  • Lightning Protection

    Common Mode: 4 KV
    Differential Mode: 2 V

  • Safety

    EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013
    UL 60950-1 + CAN/CSA C22.2 No. 60950-1-07

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 subpart B
    EN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55032:2015, EN 6100-3-2:2014, EN 61000-3-3:2013

  • Dimensions

    17.32 x 11.81 x 1.73" (440 x 300 x 44mm)

  • Weight

    7.74 lb (3.51kg)

  • UPC Code

    819290020434

About Dahua DH-PFS4226-24ET-360

DH-PFS4226-24ET-360 is a dedicated PoE switch designed especially for the security industry. The PoE management function displays power control and real-time port consumption. The switch provides long-distance (250 m / 820 ft) PoE transmission and a port for Hi-PoE powered devices.

Dahua DH-PFS4226-24ET-360 Features

  • Layer 2 Managed PoE Switch
  • Supports PoE, PoE+, and Hi-PoE (use with PFT1300 PoE Extender)
  • 360 W PoE Budget
  • 250 m (820 ft ) PoE Transmission
  • PoE Management, PoE Setting/Event Statistics/Green PoE
  • Search and Upgrade via Configuration Tool
  • High Lightning Protection Design
  • Non-blocking Video Transmission

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Layer 2 Managed PoE Switch
  • Supports PoE, PoE+, and Hi-PoE (use with PFT1300 PoE Extender)
  • 360 W PoE Budget
  • 250 m (820 ft ) PoE Transmission
  • PoE Management, PoE Setting/Event Statistics/Green PoE
  • Search and Upgrade via Configuration Tool

What's in the box:

  • DH-PFS4226-24ET-360 24-Port Layer 2 Managed PoE Switch (360W)
  • Dahua 3 Year Limited Warranty
