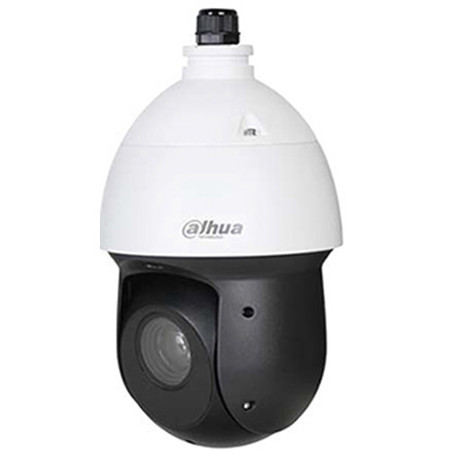

Dahua 49225TNI Lite Series 2MP 1080p Outdoor Starlight IR WDR PTZ Network Dome Camera with 4.8-120mm F1.6-4.4 Varifocal Lens, 25x Optical Zoom, IP66, H.265+

SKU: DH49225TNI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua 49225TNI Specifications

Camera
  • Image Sensor

    1/2.8-in. STARVIS CMOS Sensor

  • Effective Pixels

    1920(H) x 1080(V), 2 MP

  • RAM/ROM

    1024 MB / 128 MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 s to 1/300,000 s

  • Minimum Illumination

    Color: 0.005 lux at F1.6
    0 lux at F1.6 with IR on

  • S/N Ratio

    More than 55 dB

  • IR Distance

    Distance up to 100.0 m (328.08 ft)

  • IR On/Off Control

    Auto, Manual

  • IR LEDs

    Six (6)

  • Focal Length

    4.8 mm to 120 mm

  • Max. Aperture

    F1.6 to F4.4

  • Angle of View

    Horizontal: 59.2 Degree to 2.4 Degree

  • Optical Zoom

    25x

  • Focus Control

    Auto, Manual

  • Close Focus Distance

    100 mm to 1000 mm

  • DORI Distance

    Detect (8 ppf) 5292' (1613m)
    Observe (19 ppf) 2119' (646m)
    Recognize (38 ppf) 1060' (323m)
    Identify (76 ppf) 528' (161m)

  • Pan/Tilt Range

    Pan: 0 Degree to 360 Degree endless
    Tilt: 15 Degree to 90 Degree
    Auto Flip 180 Degree

  • Manual Control Speed

    Pan: 0.1 Degree to 200 Degree /s
    Tilt: 0.1 Degree to 120 Degree /s

  • Preset Speed

    Pan: 240 Degree /s
    Tilt: 200 Degree /s

  • Presets

    300

  • PTZ Mode

    5 Pattern, 8 Tour, Auto Pan ,Auto Scan

  • Speed Setup

    Human-oriented Focal Length, Speed Adaptation

  • Power up Action

    Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset, Scan, Tour, Pattern if there is no command in the specified period

  • Protocol

    DH-SD

  • Compression

    Smart H.265+, H.265, Smart H.264+, H.26

  • Streaming Capability

    Three (3) Streams

  • Resolution

    1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

  • Frame Rate

    Main Stream: 1080p or 720p at 60 fps; 1.3 MP at 30 fps
    Sub Stream 1: D1 or CIF at 30 fps
    Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps

  • Bit Rate Control

    CBR, VBR

  • Bit Rate

    H.265/H.264: 448 K to 8192 Kbps, MJPEG: 5120 K to 10240 Kbps

  • Day/Night

    Auto (ICR), Color, B/W

  • Backlight Compensation

    BLC, HLC, True WDR (120 dB)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto, Manual

  • Noise Reduction

    Ultra DNR (2D/3D)

  • Advanced Features

    Motion Detection, Region of Interest, Defog

  • Digital Zoom

    16x

  • Flip

    180 Degree

  • Privacy Masking

    Up to 24 areas

  • Compression

    G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

Jump to...
  • Ethernet

    RJ-45 (10/100 Base-T)

  • Protocol

    IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    20 users

  • Edge Storage

    Network Attached Storage (NAS)
    Local PC for instant recording
    Micro SD card, up to 128 GB

  • Web Viewer

    IE 10, Firefox, Safari

  • Management Software

    Smart PSS, DSS

  • Mobile Operating System

    IOS, Android, Windows

Certifications

Jump to...
  • CE

    EN 55032
    EN 55024
    EN 50130-4

  • UL

    UL60950-1 + CAN/CSA C22.2, No.60950-1

  • Electromagnetic Compatibility (EMC)

    FCC Part 15 Subpart B
    ANSI C63.4-2014

Interface

Jump to...
  • Audio

    Input: One (1) Channel
    Output: One (1) Channel

  • Alarm

    Input: Two (2) Channels
    Output: One (1) Channel

Electrical

Jump to...
  • Power Supply

    12 VDC, 3 A, PoE+ (802.3at)

  • Power Consumption

    13 W, 20 W with IR on

Enviromental

Jump to...
  • Operating Conditions

    -40 to +158 Degree (-40 to 70 Degree C) with built-in heater
    Less than 90% RH

  • Ingress Protection

    IP66

Construction

Jump to...
  • Casing

    Metal

  • Dimensions (Diameter x H)

    6.3 x 11.61" (160 x 295mm)

  • Weight

    6.61 lb (3.0kg)

Wall Mount

Jump to...
  • Color

    White

  • Material

    Aluminum

  • Load Bearing

    11.02 lb (5.0kg)

  • Operating Temperature

    -40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)

  • Humidity

    < 90% RH

  • Compatible Mount

    DH-PFA106, DH-PFA120, DH-PFA150, DH-PFA151

  • Dimensions

    7.87 x 6.3 x 4.53" (200 x 160 x 115mm)

  • Weight

    1.92 lb (0.87kg)

About Dahua 49225TNI

The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS CMOS imager with a 25x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for indoor and outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.

Functions

Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers light sensitivity that captures details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.

Environmental
With a built-in heater and a temperature range of -40 Degree C to +70 Degree C (-40 Degree F to 158 Degree F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Protection
This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.


- PFB305W Wall Mount -
• Aluminum Material
• Safety tether hook for secure and reliable installation

Dahua 49225TNI Features

  • 1/2.8-in. 2 MP STARVIS CMOS Sensor
  • Powerful 25x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 1080p/720p at 30 fps Maximum Resolution
  • Intelligent Video System (IVS) Analytics
  • Maximum IR Distance up to 100 m (328 ft)
  • IP66 Ingress Protection
  • Designed for Extreme Temperature Environments

Key Features

  • 1/2.8-in. 2 MP STARVIS CMOS Sensor
  • Powerful 25x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 1080p/720p at 30 fps Maximum Resolution

What's in the box:

  • 49225TNI Lite Series 2MP 1080p Outdoor Starlight IR WDR PTZ Network Dome Camera
  • Wall Mount (PFB305)
  • Dahua 5 Year Limited Warranty
