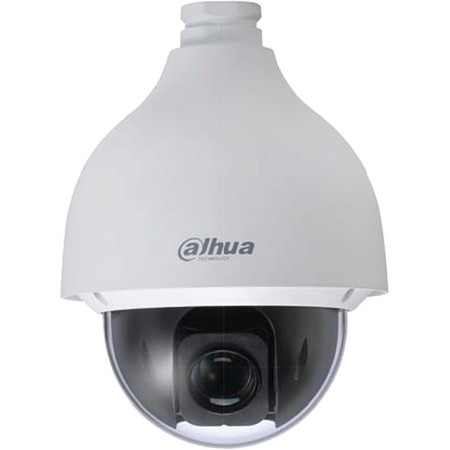

Dahua 50430UNI Pro Series 4MP 1080p Outdoor IR WDR PTZ Network Dome Camera with 4.5-135mm F1.6-4.4 Varifocal Lens, 30x Optical Zoom, IVS, IP67, IK10, H.265+

SKU: DH50430UNI

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua 50430UNI Specifications

Camera
  • Image Sensor

    4 MP 1/3" CMOS

  • Effective Pixels

    2592 x 1520 (H x V), 4 MP

  • RAM

    1024 MB

  • ROM

    128 MB

  • Scanning System

    Progressive

  • Minimum Illumination

    Color: 0.05 lux at f/1.6
    B&W: 0 lux at f/1.6

  • S/N Ratio

    More than 55 dB

  • Focal Length

    4.5 to 135mm

  • Maximum Aperture

    f/1.6 to 4.4

  • Angle of View

    Horizontal: 2.2 to 60 Degree

  • Optical Zoom

    30x

  • Focus Control

    Auto, Manual

  • Close Focus Distance

    0.3 to 3.2' (0.1 to 1m)

  • DORI Distance

    Detect (8 ppf) 8858' (2700m)
    Observe (19 ppf) 3543' (1080m)
    Recognize (38 ppf) 1772' (540m)
    Identify (76 ppf) 886' (270m)

  • Range

    Pan: 0 to 360 Degree endless
    Tilt: 0 to 90 Degree
    Auto Flip: 180 Degree

  • Manual Control Speed

    Pan: 0.1 to 350 Degree /s
    Tilt: 0.1 to 250 Degree /s

  • Preset Speeds

    Pan: 500 Degree /s
    Tilt: 500 Degree /s

  • Presets

    300

  • PTZ Mode

    5 Patterns, 8 Tours, Auto Pan, Auto Scan

  • Setup

    Speed Setup: Human-oriented focal length, speed adaptation

  • Action Type

    Power Up: Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period

  • Protocol

    DH-SD

Intelligent Video

Jump to...
  • Auto Tracking

    Supported

  • Intelligent Video Analytics

    Tripwire, Intrusion, Abandoned/Missing Object, Face Detection

  • Compression

    H.265, H.264, MJPEG

  • Streaming Capability

    3 streams

  • Resolution

    4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

  • Frame Rate

    Main Stream: 4 MP or 3 MP at 30 fps 1080p, 1.3 MP, or 720p at 60 fps
    Sub Stream 1: D1, CIF (1 to 30 fps)
    Sub Stream 2: 1080p, 1.3 MP, 720p at 30 fps)

  • Bit Rate Control

    CBR, VBR

  • Bit Rate

    H.265/H.264: 448 to 8192 kbps
    MJPEG: 5120 to 10240 kbps

  • Day/Night

    Auto (ICR), color, B&W

  • Backlight Compensation

    BLC, HLC, WDR (120 dB)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto / manual

  • Noise Reduction

    Ultra DNR (2D/3D)

  • Digital Zoom

    16x

  • Image Flip

    180 Degree

  • Privacy Masking

    Up to 24 areas

  • Compression

    G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

Jump to...
  • Ethernet

    RJ45 (10/100Base-T)

  • Protocol

    IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast / multicast

  • Maximum User Access

    20 users

  • Edge Storage

    NAS
    Local PC for instant recording

  • Web Viewer

    IE 10, Chrome, Firefox, Safari

  • Management Software

    Smart PSS, DSS

  • Mobile OS Support

    iOS, Android, and Windows

Certification

Jump to...
  • Safety

    CE
    EN 55032
    EN 55024
    EN 50130-4
    UL60950-1 + CAN/CSA C22.2, No.60950-1

  • Electromagnetic Compatibility

    FCC Part 15 Subpart B
    ANSI C63.4-2014

Interface

Jump to...
  • Audio Interface

    In: 1x Channel
    Out: 1x Channel

  • Alarm

    In: 2x Channel
    Out: 1x Channel

Electrical

Jump to...
  • Power Supply

    24 VAC, 1.5 A ( +/- 10%), PoE+ (802.3at)

  • Power Consumption

    13 W, 23 W with heater on

Enviromental

Jump to...
  • Operating Conditions

    -40 to 140 Degree F (-40 to 60 Degree C)
    less than 90% RH

  • Ingress protection

    IP67

  • Vandal Resistance

    IK10

Construction

Jump to...
  • Casing

    Metal

  • Dimensions (Diameter x H)

    7.2 x 9.96" (186 x 253mm)

  • Weight

    5.51 lb (2.5kg)

Wall Mount

Jump to...
  • Material

    Aluminum

  • Pipe Thread

    G1 1/2"

  • Operating Temperature

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Humidity

    0 - 90% RH

  • Load Bearing

    6.6 lb (3.3kg)

  • Compatibility

    Dome Camera: SD50(52C)220T/230T-HN,SD40212T-HN,SD4023C-H,SD59212I-HC,SD59220I-HC,SD59230I-HC,SD50220I-HC,SD40212I-HC,SD50120I-HC,SD59112I-HC,SD59120I-HC,SD40112I-HC, SD59220T-HN,SD59230T-HN,SD50220T-HN,SD50230T-HN,SD50120T-HN,SD59430U-HN,SD50430U-HN,TPC-SD5300,TPC-SD5300-T,TPC-SD5600,TPC-SD5600-T,SD50230I-HC

  • Dimension

    4.52 x 6.3 x 8.9" (115 x 160 x 228mm)

  • Weight

    1.08 lb (0.49kg)

Mount Adapter

Jump to...
  • Material

    Aluminum

  • Pipe Thread

    G1 1/2"

  • Operating Temperature

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Humidity

    0 - 90% RH

  • Compatibility

    Dome Camera: SD50120,SD50220I-HC,SD50230I-HC-S2,SD50120/220/230S-HN, SD50120/220/230T-HN,SD50230/430U-HN,SD4023/23C-H, SD40112/212I-HC,SD40212S-HN,SD40212T-HN,SD5923C-H,SD59112/120/212/220/230I-HC,SD59230I-HC-S2,SD59120/212/220/230S-HN, SD59120/220/230T-HN, SD59230/430U-HN

  • Dimensions (Diameter x H)

    2.32 x 2.08" (59 x 53mm)

  • Weight

    0.44 lb (0.20kg)

  • UPC Code

    816116023082

About Dahua 50430UNI

The 4 MP PTZ Dome camera features a 1/3-in CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.

Functions

Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

PFA Technology
The camera uses innovative PFA Technology to improve zoom accuracy and to decrease focus time. A series of advanced algorithms more accurately judge the direction and the distance to a subject, improving picture clarity throughout the zooming process.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.

Environmental
With a built-in heater and a temperature range of -40 Degree C to +60 Degree C (-40 Degree F to 140 Degree F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.


- PFB300S Wall Mount -
•Neat & Integrated design
• Aluminum & PC Construction for Durability


- PFA110 Aluminum Mount Adapter -
• Neat & Integrated design

Dahua 50430UNI Features

  • 1/3-in. 4 MP Progressive Scan CMOS
  • Powerful 30x Optical Zoom
  • Smart H.265+ and H.264 Video Compression Encoding
  • 4MP / 3MP at 30 fps or 1080p at 30/60 fps
  • True Wide Dynamic Range
  • Predictive Focus Algorithm
  • Auto-tracking and Intelligent Video System (IVS)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE+ Support

Key Features

  • 1/3-in. 4 MP Progressive Scan CMOS
  • Powerful 30x Optical Zoom
  • Smart H.265+ and H.264 Video Compression Encoding
  • 4MP / 3MP at 30 fps or 1080p at 30/60 fps
  • True Wide Dynamic Range
  • Predictive Focus Algorithm

What's in the box:

  • 50430UNI Pro Series 4MP 1080p Outdoor IR WDR PTZ Network Dome Camera
  • Wall Mount (PFB300S)
  • Mount Adapter (PFA110)
  • AC24V/1.5A Power Adapter
  • Dahua 5 Year Limited Warranty
