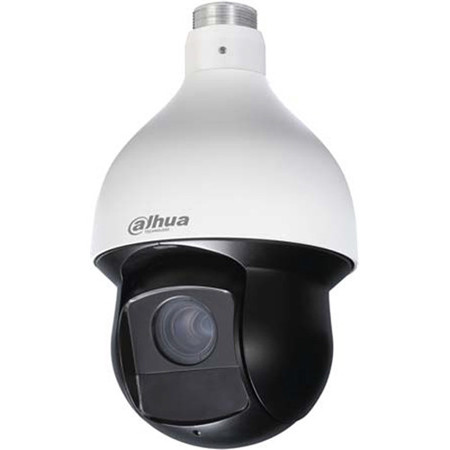

Dahua 59430IC Ultra Series 4MP 2592x1520 Outdoor IR HDCVI Pendant PTZ Dome Camera with 4.5-135mm F1.6-4.4, 30x Optical Zoom, Heater

The 4 MP IR PTZ HDCVI Dome camera features a 1/3-in. CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera features 120 dB True WDR, suitable for applications with complex dynamic range, ensuring both the bright and dark areas are seen clearly. The camera is also equipped with quick and accurate pan/tilt/zoom control for excellent camera control.

Functions
Three Signals over One Coaxial Cable
HDCVI technology simultaneously transmits three signals (video, audio, and control) over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. Moreover, HDCVI technology supports PoC for construction fl exibility.

Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

Dual Video Output Signals
The camera offers one (1) BNC video output connection to transmit an HDCVI or a CVBS signal. These output signals allow the camera to integrate with various devices, including analog matrix systems and monitors.

True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.

Defog
Utilizing Dahua's advanced algorithm technology, the Defog feature dynamically adjusts the camera's contrast setings to provide improved image quality in scenes affected by fog, smog, mist, smoke or other low-contrast interference.

Environmental
With a built-in heater and a temperature range of -40 Degree C to +70 Degree C (-40 Degree F to +158 Degree F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Protection
This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.

- PFB300S Wall Mount -
The Dahua PFB300S Aluminum Wall Mount Bracket is specially designed for SD50(52C)220T/230T-HN, SD40212T-HN, SD4023C-H, SD59212I-HC, SD59220I-HC, SD59230I-HC, SD50220I-HC, SD40212I-HC, SD50120I-HC, SD59112I-HC, SD59120I-HC, SD40112I-HC, SD59220T-HN, SD59230T-HN, SD50220T-HN, SD50230T-HN, SD50- 120T-HN, SD59430U-HN, SD50430U-HN, TPC-SD5300, TPC-SD5300-T, TPC-SD5600, TPC-SD5600-T, SD50230I-HC Dome Cameras.

Features
• Neat & Integrated design
• Aluminum & PC Construction for Durability

- PFA110 Mount Adapter -
The Dahua PFA110 Mount Adapter is specially designed for SD50120, SD50220I-HC, SD50230I-HC-S2, SD50120/220/230S-HN, SD50120/220/230T-HN, SD50230/430U-HN, SD4023/23C-H, SD40112/212I-HC, SD40212S-HN, SD40212T-HN, SD5923C-H, SD59112/120/212/220/230I-HC, SD59230I-HC-S2, SD59120/212/220/230S-HN, SD59120/220/230T-HN, SD59230/430U-HN Dome Cameras.

Features
• Neat & Integrated design
