2 MP 1/2.8" CMOS
3.95 to 177.7mm
f/1.6 - f/4.95
Optical: 45x
Digital: 16x
Horizontal: 70.3 to 1.8 Degree
Mechanical
Yes
Color: 0.005 Lux
B&W: 0 Lux
1/30000 to 1 Seconds
1920 x 1080 at 30/60 fps
1280 x 960 at 30/60 fps
1280 x 720 at 30/60 fps
704 x 380 at 30 fps
352 x 340 at 30 fps
H.264, H.264+, H.265, H.265+
Yes, 3 Streams
Yes
Two-Way
AAC, G.711, G.722, G.726, G.729, MP2
3.5 mm
3.5 mm
IEEE 802.1X, IP Address Filtering
Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
ONVIF, PSIA, CGI
IVS
Yes
Alarm
Yes
iOS, Android
-40 to 140 Degree F (-40 to 60 Degree C)
IP67
1024 MB RAM / 128 MB Flash
microSD (up to 128 GB)
Programmed Pan: 360 Degree
Programmed Tilt: 120 Degree (-20 to 90 Degree)
7 / 2
1x BNC
1x Power
1x RJ45
1x 9-Pin Serial (RS-485)
1804.46' / 550 m
Smart PSS, DSS
Local PC, NAS
AC, PoE 802.3at (30 W)
24 W
Metal (Unspecified Type)
9.4 x 14.1" (238.8 x 358.1mm)
14.99 lb (6.8kg)
Aluminum
G1 1/2 in.
-40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)
0 to 90% RH
2.36 x 1.93" (60.0 x 49.0mm)
0.55 lb (0.25kg)
Dome Camera: SD6A220I-HC,SD6A230I-HC,SD63220I-HC,SD63230I-HC,SD6AE530U-HN,SD60120T-HN,SD60220T-HN,SD60230T-HN,SD65F230F-HNI,SD6C230U-HN,SD6AE230F-HNI
Aluminum
G 1 1/2"
-40 to 140 deg. F (-40 to 60 deg. C)
0 - 90% RH
15.4 lb (7kg)
4.52 x 6.3 x 10.03" (115 x 160 x 255mm)
1.45 lb (0.66kg)
819290024050

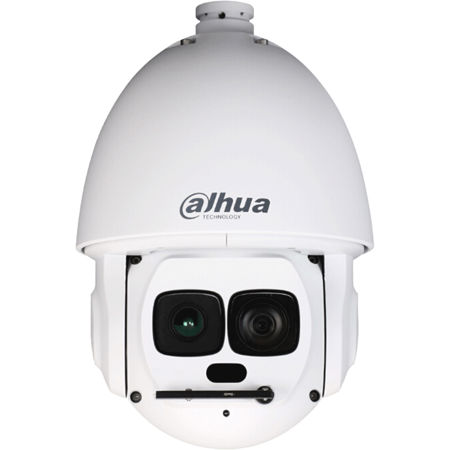

The 2MP Laser IR PTZ Dome camera features a 1/2.8-in STARVIS CMOS imager with a 45x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Functions
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
PFA Technology
The camera uses innovative PFA Technology to improve zoom accuracy and to decrease focus time. A series of advanced algorithms more accurately judge the direction and the distance to a subject, improving picture clarity throughout the zooming process.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Environmental
With a built-in heater and a temperature range of -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
- PFA111 Mount Adapter -
Features
Aluminum Construction
Designed for Use with Applicable Network and HDCVI PTZ Cameras
- PFB303W Waterproof Wall Mount Bracket -
The Dahua PFB303W Waterproof Wall Mount Bracket is specially designed for SD6A220I-HC, SD6A230I-HC, SD63220I-HC, SD63230I-HC, SD6AE530U-HN, SD60120T-HN, SD60220T-HN, SD60230T-HN, SD65F230F-HNI, SD6C230U-HN, SD6AE230F-HNI Dome Cameras.
Features
Aluminum Construction for Durability
Waterproof for Outdoor Use
Neat & Integrated design
