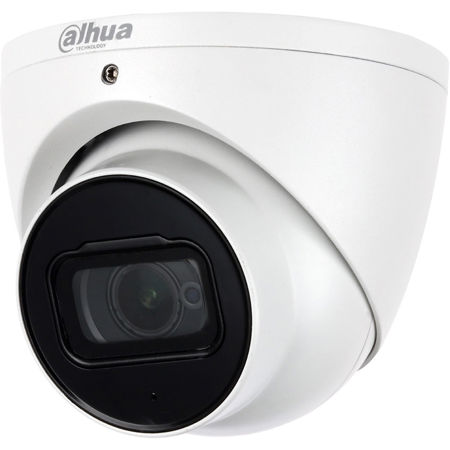

Dahua A82AG52 Pro Series 8MP 4K Outdoor Starlight IR HDCVI Fixed Eyeball Camera with 2.8mm F1.6 Fixed Lens

SKU: DHA82AG52

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua A82AG52 Specifications

Camera
  • Image Sensor

    1/1.8" Progressive Scan CMOS Sensor

  • Effective Pixels

    3840 x 2160, 8 MP

  • Electronic Shutter Speed

    1/100,000 to 1/3 Second

  • Minimum Illumination

    Color: 0.005 lux at f/1.6, 30 IRE
    B&W: 0 lux with IR

  • S/N Ratio

    >65 dB

  • IR Range

    164' (50m)

  • IR Control

    On/Off Control (Auto, Manual)

  • IR LEDs

    2

  • Lens Type

    Fixed Lens, Fixed Iris

  • Mount Type

    Board-In

  • Focal Length

    2.8mm

  • Maximum Aperture

    f/1.6

  • Horizontal Angle of View

    87 Degree

  • Focus Control

    Auto, Manual

  • Close Focus Distance

    70.87" (1800mm)

Camera Adjustment Range

Jump to...
  • Angle Adjustment

    Horizontal: 0 to 360
    Vertical: 0 to 70
    Rotation: 0 to 360

  • Maximum Resolution

    3840 x 2160 (8 MP)

  • Frame Rate

    HD-CVI: 8 MP at 15 fps, 6 MP at 20 fps, 4 MP at 30 fps
    HD-TVI: 5 MP at 20 fps, 4 MP at 30 fps
    AHD: 5 MP at 20 fps, 4 MP at 30 fps
    CVBS: 960H

  • Video Output

    1x HD-CVI (BNC, 4K UHD)
    1x CVBS (BNC, Switchable)

  • Transmission

    Over RG-59/U Coax
    720p: 2624.67' (800m)
    1080p: 1640.42' (500m)
    4K UHD: 1640.42' (500m)

    Over RG-6/U
    720p: 3937.01' (1200m)
    1080p: 2624.67' (800m)
    4K UHD: 2296.59' (700m)

    Cat 6 UTP (Separately Available Balun Required)
    720p: 1476.38' (450m)
    1080p: 984.25' (300m)
    4K UHD: 984.25' (300m)

  • Day/Night

    Auto (IR Cut Filter), Manual

  • OSD Menu

    Multi-Language

  • BLC Modes

    BLC, HLC, True WDR

  • WDR

    120 dB

  • Automatic Gain Control

    Supported

  • Noise Reduction

    2D-DNR, 3D-DNR

  • White Balance

    Auto, Manual

  • Smart IR

    Auto, Manual

Interface

Jump to...
  • Audio

    Built-In Microphone
    1x Audio Input (RCA)

Electrical

Jump to...
  • Power Supply

    12 VDC, +/-30%

  • Power Consumption

    Maximum 8 W at 12 VDC (IR On)

Environmental

Jump to...
  • Operating Conditions

    -22 to 140 Degree F (-30 to 360 Degree C)
    Less than 90% RH

  • Storage Conditions

    -22 to 140 Degree F (-30 to 360 Degree C)
    Less than 90% RH

  • IP Rating

    IP67

Certifications

Jump to...
  • CE

    EN55032, EN55024, EN50130-4

  • Safety

    UL60950-1, CAN/CSA C22.2 No.60950-1

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014

Construction

Jump to...
  • Casing

    Aluminum

  • Dimensions (Diameter x H)

    4.17 x 3.9" (106 x 99.2mm)

  • Weight

    1.1 lb (0.5kg)

  • UPC Code

    819290024173

About Dahua A82AG52

Experience the superior clarity of Dahua's Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production.

Functions
Three Signals over One Coaxial Cable
HDCVI technology simultaneously transmits video, audio and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.

Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.

Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. This HDCVI camera transmits audio signals over the coaxial cable, eliminating the need for separate audio wiring. In addition, the camera uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information.

Multiple-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.

True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua's advanced 3DNR technology delivers remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. 3DNR, in addition, effectively decreases the bandwidth and saves storage space.

Protection
The camera allows for +/-30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 4KV lightning rating provides effective protection for both the camera and its structure against lightning, and its IP67 ingress protection make it the choice for installation in even the most unforgiving environments.

Dahua A82AG52 Features

  • 1/1.8-in. 8MP Progressive-scan CMOS Imager
  • 4K (3840 x 2160) at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Ultra Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • HD or SD Output, Switchable
  • Built-in Microphone
  • Maximum IR Length 50 m (164 ft), Smart IR
  • IP67 Ingress Protection

Key Features

  • 1/1.8-in. 8MP Progressive-scan CMOS Imager
  • 4K (3840 x 2160) at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Ultra Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • HD or SD Output, Switchable

What's in the box:

  • A82AG52 Pro Series 8MP 4K Outdoor Starlight IR HDCVI Fixed Eyeball Camera
  • Dahua 5 Year Limited Warranty
