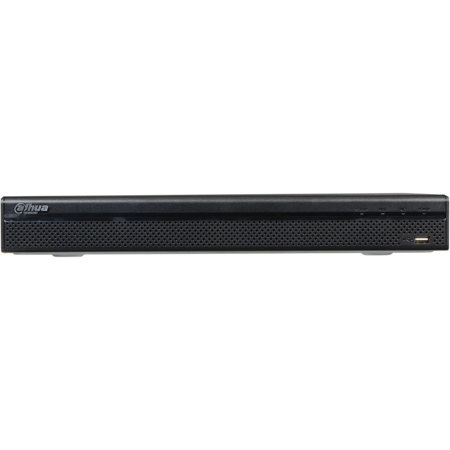

Dahua Pro Series C52A3N 16-Channel Tribrid 4K 1U 8MP HDCVI Digital Video Recorder with 8TB HDD

Dahua, a global leader in security systems, introduces HCVR technology - the perfect affordable solution to upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. HCVR technology utilizes tri-brid access technology to seamlessly record video from HDCVI, CVBS, and IP sources simultaneously.

The HCVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. HCVR technology is the ideal solution for actively monitoring and recording video feeds in wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.

Camera Connections
Record and monitor video from analog/HDCVI camera inputs and IP camera inputs simultaneously. The C52 series supports a maximum of 24 channels, with up to 16 channels of HDCVI/CVBS inputs and up to an additional 8 channels of IP inputs. The flexibility of the HCVR allows all 24 channels to record input from IP cameras, or from a combination of input from analog and IP sources (not to exceed the maximum number of analog cameras allowed per HCVR). In addition, the HCVR supports a maximum of 16 local live-view channels and 16 playback channels.

Flexible Recording
The HCVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time. The HCVR monitors incoming video and can be programmed to record if motion is detected. The HCVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.

Functions
Spot Output
Spot Output allows an operator to view a secondary monitor assigned to selected cameras or video inputs in a high-security area.

Smart H.264+
The Smart H.264+ video compression standard can reduce bit rate and storage requirements by up to 70% without having to invest in new cameras.

HDCVI/CVBS Auto-detect
The HCVR automatically recognizes the incoming signals of each attached camera without any setup, making installation easy and operation convenient.

8 MP Resolution
The HCVR supports 8 MP (3480 x 2160) resolution on HDCVI channel one and all IP camera inputs for recording and live viewing. Remaining analog channels support up to 4 MP each.

Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A device with IVS quickly and accurately responds to monitoring events in a specific area. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Smart Search
Smart Search allows an operator to specify a region in the playback video to search for a motion detection event, saving time and manpower.
