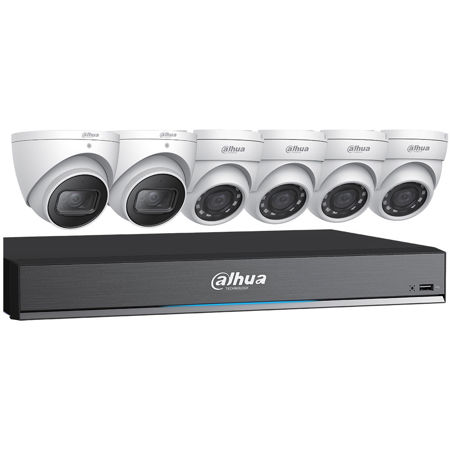

Dahua C788E63 HDCVI Security System Includes 4x 5MP Cameras and 2x 4K Eyeball Cameras & 8-Channel 4K Penta-Brid DVR with 3TB HDD
SKU: DHC788E63
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Dahua HDCVI Security System
The Dahua HDCVI Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The HDCVI cameras offer the clarity of 4K video, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dahua's HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments.
Intelligent Video System (IVS)
The HDCVI DVR offers IVS, a built-in video analytic algorithm that delivers standard intelligent functions to monitor a scene for Tripwire violations,intrusion detection, and abandoned or missing objects. IVS quickly and accurately responds to monitoring events in a specific area. In addition, the HDCVI DVR feature face detection technology that identifies human faces in digital images.
Smart H.265+
The HDCVI DVR uses Smart H.265+ video compression to reduce bit rate and storage requirements by up to 70% when compared to standard H.265 video compression. Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.
Multi-format Support
The camera and HDCVI DVR supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs. The HDCVI DVR automatically recognizes the incoming signals of each attached camera without any setup, making installation easy and operation convenient.
Environmental
With a built-in heater and a temperature range of -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F), the cameras are designed for extreme temperature environments. The cameras, subjected to rigorous dust and water immersion tests, are certified to the IP67 rating making them suitable for demanding outdoor applications.
The HDCVI DVR features an operating temperature of -10 Degree C to +55 Degree C (+14 Degree F to +131 Degree F)
Dahua HDCVI Security System Features
- 5 MP HDCVI Cameras Features
- 5 MP at 20 fps Maximum Resolution (Default camera resolution is set to 4 MP.)
- 2.8 mm Fixed Lens
- Maximum IR Length: 30 m (98 ft) with Smart IR
- IP67 Ingress Protection
- 4K HDCVI Cameras Features
- 8 MP at 15 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length: 50 m (164 ft) with Smart IR
- IP67 Ingress Protection
- 4K HDCVI DVR Features
- Embedded Processor
- 8 Channel Penta-brid Recorder
- Support for 8 + 8 IP Channels
- Smart H.265+ and Smart H.264+ Dual Codec
- 4K at 7 fps Recording Resolution on all HDCVI Channels
- Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
- 64 Mbps Incoming Bandwidth
