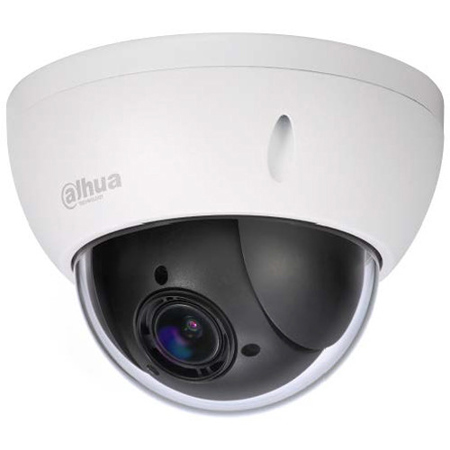

Dahua Lite 2MP IR PTZ Network Dome Camera with 2.7-12mm Motorized Lens, IVS
See all dahua items

Dahua Lite 2MP IR Vandal Network Mini PTZ Dome Camera with 2.7-12mm Motorized Lens, Smart Detection

SKU: DHD22204TGI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Are they in color?ANDREW R : I'm afraid I don't understand your question.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-SD22A204TN-GNI Specifications

  • Image Sensor

    1/2.7" CMOS

  • Effective Pixels

    1920(H) x 1080(V), 2Megapixels

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 - 1/30,000s

  • Min. Illumination

    Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

  • S/N Ratio

    More than 50dB

  • Day/Night

    Auto(ICR) / Color / B/W

  • Backlight Compensation

    BLC / HLC / WDR

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    Ultra DNR (2D/3D)

  • Privacy Masking

    Up to 24 areas

  • Digital Zoom

    16x

  • Focal Length

    2.7mm-11mm (4x Optical zoom)

  • Max Aperture

    F1.6 - F2.8

  • Focus Control

    Auto / Manual

  • Angle of View

    H: 93.5 Degree - 30.24 Degree

  • Close Focus Distance

    100mm - 1000mm

  • Pan/Tilt Range

    Pan: 0 Degree - 355 Degree; Tilt: 0 Degree - 90 Degree, auto flip 180 Degree

  • Manual Control Speed

    Pan: 0.1 Degree - 100 Degree /s; Tilt: 0.1 Degree - 60 Degree /s

  • Preset Speed

    Pan: 100 Degree /s; Tilt: 60 Degree /s

  • Preset

    300

  • PTZ Mode

    5 Pattern, 8 Tour, Auto Pan, Auto Scan

  • Speed Setup

    Human-oriented focal length/ speed adaptation

  • Power up Action

    Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

  • Resolution

    1080p (1920 x 1080) / 720p (1280 x 720) / D1(704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)

  • Frame Rate Main Stream

    1080P/ D1 (1 - 30fps), 720P(1 - 60fps)

  • Frame Rate Sub Stream 1

    D1/CIF(1 - 30fps)

  • Frame Rate Sub Stream 2

    720P/ D1/ CIF (1 - 25/30fps)

  • Bit Rate

    H.264: 448K - 8192Kbps, MJPEG: 5120K - 10240Kbps

  • IVS

    Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection,

  • Face Detection

    Support

  • Ethernet

    RJ-45 (10/100Base-T)

  • Protocol

    IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • ONVIF

    ONVIF Profile S

  • Max. User Access

    20 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Memory Slot

    Micro SD, Max 128GB

  • Power Supply

    DC12V, POE

  • Power Consumption

    10W

  • Working Environment

    -30 Degree- C - 60 Degree- C / Less than 90% RH

  • Ingress Protection

    IP66 & IK10

  • Dimensions

    122mm x 89mm (4.80" x 3.50)

  • Weight

    0.6kg

  • UPC Code

    856920006703

About Dahua DH-SD22A204TN-GNI

Dahua DH-SD22A204TN-GNI Features

  • 4x optical zoom
  • H.264 & MJPEG Triple-streams encoding
  • Max. 30fps@1080P(1920x1080) & 60fps@720P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100 Degree/s pan speed
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, POE

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 4x optical zoom
  • H.264 & MJPEG Triple-streams encoding
  • Max. 30fps@1080P(1920x1080) & 60fps@720P resolution
  • WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 100 Degree/s pan speed

What's in the box:

  • Network PTZ Camera
  • Dahua 3 Year Limited Warranty
