Dahua DH-PFS3010-8ET-96 60W 8-Port Fast Ethernet PoE+ Layer 2 Commerical Switch
See all dahua items

Dahua DH-PFS3010-8ET-96 60W 8-Port Fast Ethernet PoE+ Layer 2 Commerical Switch

SKU: DHD30108ET96
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-PFS3010-8ET-96 Specifications

Interfaces

Interfaces

Jump to...

  • Ports

    8x 10/100 Mb/s Ethernet (RJ45) PoE+ (Type 2)
    2x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Protocols

Jump to...

  • Layer Services Supported

    Layer 2 Support

  • Supported Protocols

    Auto-MDIX/MDI

  • MAC Address Table Size

    16K

Standards

Jump to...

  • Supported IEEE Standards

    802.3, 802.3af, 802.3at, 802.3u, 802.3x

Performance

Jump to...

  • Forwarding Rate

    4.17 Mpps

  • Switching Bandwidth

    5 Gb/s

  • Packet Buffer

    4 MB

Electrical

Jump to...

  • DC Input Power

    48 to 57 VDC

  • PoE Power Budget

    96W

  • PoE per Port

    30 to 60 W

Environmental

Jump to...

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    10 to 90%

  • Certifications

    CE, FCC, UL, as per Manufacturer

General

Jump to...

  • Dimensions (W x D x H)

    7.48 x 3.94 x 1.18" (190 x 100 x 30mm)

  • Weight

    17.63 oz (500g)

Other

Jump to...

  • UPC Code

    819290023916

About Dahua DH-PFS3010-8ET-96

The DH-PFS3010-8ET-96 commercial PoE switch is specially designed for long-distance video transmission applications. The switch uses LD PoE technology to transmit power and data up to 250 m (820 ft). LD PoE extends transmission distances beyond the industry-standard 100 m, even with third-party PoE-compliant cameras. The switch provides eight (8) 10/100 Mbps PoE ports and two (2) 1000 Mbps uplink ports. The switch is also equipped with two transmission modes, Default and Extend, that are set by on-bard dip switches.

Dahua DH-PFS3010-8ET-96 Features

  • Layer 2 Commercial Switch
  • Long-distance PoE (LD PoE) Transmits Power and Data 820' (250 m)
  • Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
  • Conforms to IEEE802.3af and IEEE803.3at
  • Supports Hi-PoE (60 W)
  • MAC Auto-learning and Aging; 16K MAC Address Capacity
  • MDI/MDIX Self-adaptation
  • Metal Enclosure

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Layer 2 Commercial Switch
  • Long-distance PoE (LD PoE) Transmits Power and Data 820' (250 m)
  • Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
  • Conforms to IEEE802.3af and IEEE803.3at
  • Supports Hi-PoE (60 W)
  • MAC Auto-learning and Aging; 16K MAC Address Capacity

What's in the box:

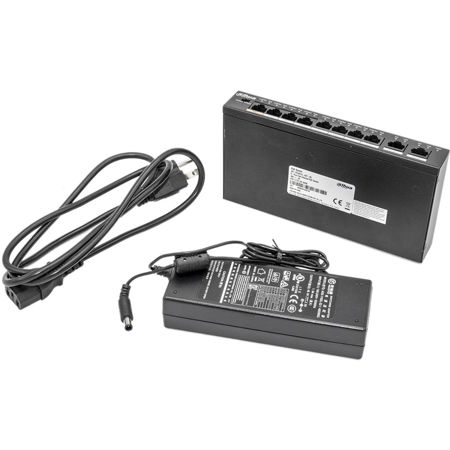

  • DH-PFS3010-8ET-96 60W 8-Port Fast Ethernet PoE+ Layer 2 Commerical Switch
  • Dahua 3 Year Limited Warranty
