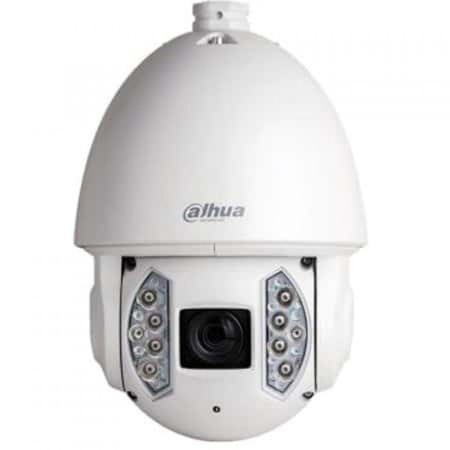

Dahua Super 2MP IR StarLight Network PTZ Dome Camera, 6-180mm Lens, 30X Optical
See all dahua items

Dahua Super 2MP IR StarLight Network PTZ Dome Camera with 6-180mm Lens, 30x Optical Zoom

SKU: DHD6E230FH

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-SD6AEA230FN-HN Specifications

  • Image Sensor

    1/1.9" Exmor CMOS

  • Effective Pixels

    1944(H) x 1092(V), 2 Megapixels

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/1 - 1/30,000s

  • Minimum Illumination

    Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)

  • S/N Ratio

    More than 56dB

  • Video Output

    BNC(1.0Vp-p/75Ohm), PAL / NTSC

  • Day/Night

    Auto(ICR) / Color / B/W

  • Backlight Compensation

    BLC / HLC / WDR (120dB)

  • White Balance

    Auto, ATW, Indoor, Outdoor, Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    Ultra DNR (2D/3D)

  • Privacy Masking

    Up to 24 areas

  • Digital Zoom

    16x

  • EIS

    Support

  • Defog

    Support

  • Focal Length

    6mm - 180mm (30x Optical zoom)

  • Max Aperture

    F1.6 - F4.8

  • Focus Control

    Auto / Manual

  • Angle of View

    H: 61.2 Degree - 2.32 Degree

  • Close Focus Distance

    100mm - 1000mm

  • Pan/Tilt Range

    Pan: 0 Degree - 360 Degree endless; Tilt: -10 Degree - 90 Degree, auto flip 180 Degree

  • Manual Control Speed

    Pan: 0.1 Degree - 240 Degree/s; Tilt: 0.1 Degree - 120 Degree/s

  • Preset Speed

    Pan: 240 Degree/s; Tilt: 200 Degree/s

  • Preset

    300

  • PTZ Mode

    5 Pattern, 8 Tour, Auto Pan, Auto Scan

  • Speed Setup

    Human-oriented focal length / speed adaptation

  • Power up Action

    Auto restore to previous PTZ and lens status after power failure

  • Idle Motion

    Activate Preset / Pan / Scan / Tour / Pattern if there is no command in the specified period

  • Time Task

    Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

  • PTZ Protocol

    DH-SD, Pelco-P/D (Auto recognition)

  • Video Compression

    H.264 / MJPEG

  • Resolution

    1080P (1920 x 1080) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)

  • Frame Rate Main Stream

    1080P / D1 (1 - 30fps), 720P(1 - 60fps)

  • Frame Rate Sub Stream 1

    D1/CIF(1 - 30fps)

  • Frame Rate Sub Stream 2

    720P / D1 / CIF (1 - 30fps)

  • Bit Rate

    H.264: 56K - 8192Kbps, MJPEG: 56K - 20480Kbps

  • Audio Compression

    G.711a / G.711u (32kbps) / PCM (128kbps)

  • Interface

    1/1 channel In/Out

  • Ethernet

    RJ-45 (10/100Base-T)

  • Network Protocol

    IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Compatibility

    ONVIF PSIA CGI

  • Max. User Access

    20 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Memory Slot

    Micro SD, Max 64GB

  • RS485

    1

  • Alarm

    7/2 channel In/Out

  • Power Supply

    AC24V/3A(+/-25%), Hi-POE

  • Power Consumption

    20W, 43W (IR on)

  • Working Environment

    -40 Degree C - 70 Degree C / Less than 90% RH

  • Ingress Protection

    IP67, IK10

  • Dimensions

    9.45 x 15.04" (240 x 382mm))

  • Weight

    14.88 lbs (6.75kg)

  • UPC Code

    816116020739

About Dahua DH-SD6AEA230FN-HN

Dahua DH-SD6AEA230FN-HN Features

  • Powerful 30x optical zoom
  • Ultra-low light star-light camera
  • H.264 & MJPEG Three-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240 Degree/s pan speed, 360 Degree endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP67, IK10, Hi-POE
  • IR Distance up to 200m

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Powerful 30x optical zoom
  • Ultra-low light star-light camera
  • H.264 & MJPEG Three-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240 Degree/s pan speed, 360 Degree endless pan rotation

What's in the box:

  • Network PTZ Camera
  • Dahua 3 Year Limited Warranty
