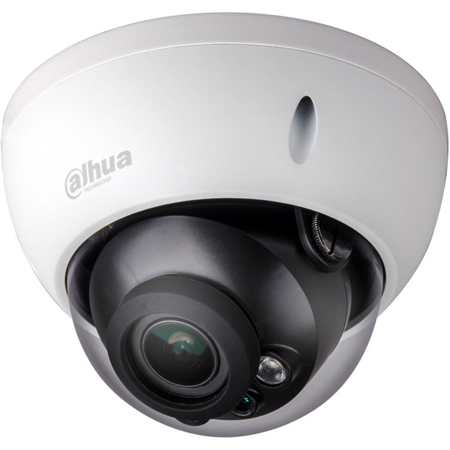

Dahua Super 2MP Starlight IR HDCVI Vandal Dome Camera, 2.7-12mm Motorized Lens
See all dahua items

Dahua Super 2MP Starlight IR HDCVIVandal Dome Camera with 2.7-12mm Motorized Lens

SKU: DHDBW321EZ

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-HAC-HDBW32A1EN-Z Specifications

  • Image Sensor

    1/2.8" 2.1Megapixel CMOS

  • Effective Pixels

    1945(H) x 1097(V)

  • Electronic Shutter

    1s-1/30,000s

  • Video Frame Rate

    30/60fps@720P; 30fps@1080P

  • Synchronization

    Internal

  • Min. Illumination

    0.005Lux/F1.4, 0Lux IR on

  • Video Output

    1-channel BNC HDCVI high definition video output & CVBS standard definition video output
    SD Tester out

  • Max. IR LEDs Length

    50m, Smart IR

  • Day/Night

    Auto(ICR) / Color / B/W

  • Noise Reduction

    2D/3D

  • OSD Menu

    Support

  • Focal Length

    2.7 - 12mm

  • Angle of View

    H: 95 Degree - 36 Degree

  • Lens Type

    Motorized / Auto Iris

  • Mount Type

    14

  • Alarm

    1 channel in/out

  • Audio

    1 channel in

  • Heater

    Optional

  • Power Supply

    AC24V +/- 25% / DC12V +/- 25%

  • Power Consumption

    Max 12.5W

  • Working Environment

    -30 Degree C - +60 Degree C / Less than 95%RH (no condensation)

  • Transmission Distance

    Over 500m via 75-3 coaxial cable

  • Ingress Protection

    IP67, IK10

  • Dimensions

    159mm x 117.9mm (6.26" x 4.61")

  • Weight

    0.9kg

  • Material

    Metal

  • UPC Code

    856920006529

About Dahua DH-HAC-HDBW32A1EN-Z

Dahua DH-HAC-HDBW32A1EN-Z Features

  • 1/2.8" 2.1Megapixel CMOS
  • 30fps@1080P, 30/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD dual-output (SDI optional), SD Tester out
  • OSD Menu, control over coaxial cable
  • 120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • Audio, Alarm
  • 2.7 - 12mm motorized lens, Auto Iris
  • Max. IR LEDs length 50m, Smart IR
  • IP67, IK10, AC24V/DC12V

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1/2.8" 2.1Megapixel CMOS
  • 30fps@1080P, 30/60fps@720P
  • High speed, long distance real-time transmission
  • HD and SD dual-output (SDI optional), SD Tester out
  • OSD Menu, control over coaxial cable
  • 120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR

What's in the box:

  • Starlight Camera
  • Dahua 3 Year Limited Warranty
