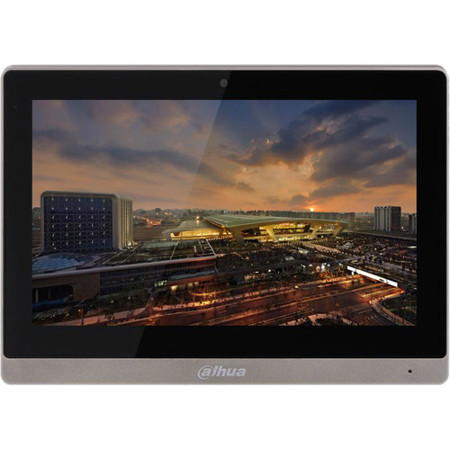

Dahua DHI-VTH1660CH 10.2" Color Indoor Touchscreen Video Intercom Monitor
See all dahua items

Dahua DHI-VTH1660CH 10.2" IP Color Indoor Touchscreen Video Intercom Monitor with Built in Speaker, 800x400

SKU: DHDHIH1660CH
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTH1660CH Specifications

System

System

Jump to...

  • Main Processor

    Embedded microprocessor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Viewing Area

    10.2" TFT LCD, capacitive

  • Inputs

    Touchscreen display

Interface

Jump to...

  • Audio

    Two-way talk

  • Audio Input

    Omnidirectional Microphone

  • Audio Output

    Built-in speaker

  • Audio Compression

    G.711

  • Alarm Input

    8

  • Alarm Output

    1

  • Memory

    microSD

Network

Jump to...

  • Video Compression

    H.264

  • Ethernet

    10/100 Mbps, self-adaptive

  • Network Protocol

    TCP/IP

Certifications

Jump to...

  • Safety

    EN 60950:2006+A2:2013

  • Electromagnetic Compatibility

    FCC CFR 47 part 15 subpart B

  • ANSI C63.4 - 2009

    EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    10 to 15 VDC or supplied by special switching power

  • Power Consumption

    Standby: 1 W or less
    Operation: 7 W or less

Environmental

Jump to...

  • Operating Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    10 to 90%, relative

Construction

Jump to...

  • Installation

    Surface mount

  • Dimensions

    10.2 x 7.4 x 0.9" (26 x 18.9 x 2.3cm)

  • Weight

    2.2 lb (1kg)

Other

Jump to...

  • UPC Code

    819290020311

About Dahua DHI-VTH1660CH

The DHI-VTH1660CH indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH1660CH indoor monitor is used as part of a video intercom solution with compatible outdoor stations.

Dahua DHI-VTH1660CH Features

  • 10.2-in. Capacitive Touch Screen, 800 x 480 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Control a Single Door and Monitor up to 32 IP Cameras
  • Embedded 8 GB Micro SD Card, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • Setup and Activate up to Eight (8) Alarm Inputs
  • Flush-mounted

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 10.2-in. Capacitive Touch Screen, 800 x 480 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Control a Single Door and Monitor up to 32 IP Cameras
  • Embedded 8 GB Micro SD Card, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)

What's in the box:

  • DHI-VTH1660CH 10.2 " IP Color Indoor Touchscreen Video Intercom Monitor
  • Mounting Bracket
  • Dahua 5 Year Limited Warranty
