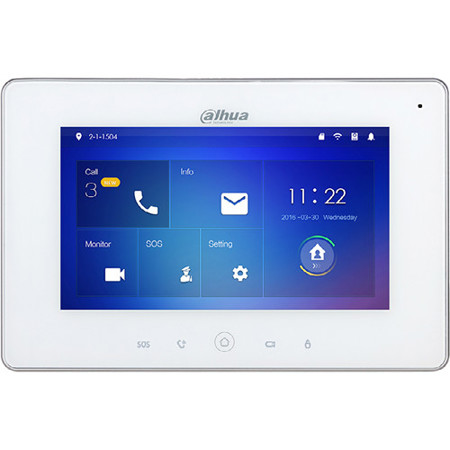

Dahua DHI-VTH5221DW 7" Color Indoor Touchscreen WiFi LCD Monitor, White
See all dahua items

Dahua DHI-VTH5221DW 7" Color Indoor Touchscreen WiFi LCD Monitor with Built-In Speaker, 1024x600, White

SKU: DHDHIH5221DW
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTH5221DW Specifications

System

System

Jump to...

  • Main Processor

    Embedded Micro Processor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Viewing Area

    7-in. LCD, Capacitive

  • Resolution

    1024 x 600

  • Inputs

    Touchscreen Display

Interface

Jump to...

  • Audio

    Input: Omnidirectional Microphone
    Output: Built-in Speaker
    Two-way Talk

  • Audio Compression

    G.711

  • Alarm

    Input: Six (6) Channels
    Output: One (1) Channel

  • RS485

    One (1) Port

  • Memory

    Micro SD Slot, 32 GB maximum

Network

Jump to...

  • Video Compression

    H.264

  • Wi-Fi

    IEEE 802.11b/g

  • Ethernet

    10/100 Mbps, Self-adaptive

  • Network Protocol

    TCP/IP

  • Management Software

    SmartPSS Device Connection - Peer-to-Peer (P2P)

Certifications

Jump to...

  • Saftey

    UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 +A2:2013IEC 60950-1:2005 (Second Edition); AM1:2009 +AM2:2013

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 subpart BANSI C63.4 - 2009EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    12 VDC or PoE (802.3af)Requires a separate 12 VDC power supply, or power via a PoE switch

  • Power Consumption

    Standby: <= 1 W
    Operation: <= 7 W

Environmental

Jump to...

  • Operating Temperature

    -10 Degree C to +55 Degree C (14 Degree F to +131 Degree F)

  • Operating Humidity

    10% to 90%, Relative

  • Installation

    Surface-mount

Construction

Jump to...

  • Dimensions

    8.4 x 5.5 x 0.8" (215 x 140 x 21mm)

  • Weight

    1.7 lb (0.80kg)

About Dahua DHI-VTH5221DW

Dahua DHI-VTH5221DW Features

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Alarm Integration and Group Call
  • Two-door Control
  • Micro SD Card Slot, maximum 32 GB
  • Record and Snapshot Functions (requires SD card)
  • WiFi-enabled and PoE Power Supply
  • Surface-mounted

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Alarm Integration and Group Call
  • Two-door Control
  • Micro SD Card Slot, maximum 32 GB
  • Record and Snapshot Functions (requires SD card)

What's in the box:

  • DHI-VTH5221DW 7 " Color Indoor Touchscreen Wireless WiFi LCD Monitor
  • Dahua 3 Year Limited Warranty
