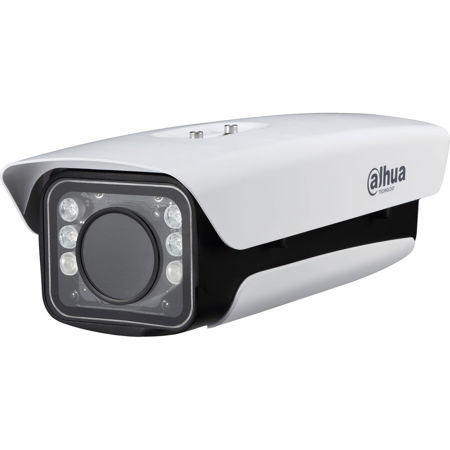

Dahua DHI-ITC237-PU1B-IR 2MP 1080p Outdoor IR WDR Varifocal Ultra License Plate Bullet Camera with 5-50mm F1.6 Fixed Lense, IP66, H.265

SKU: DHDHIIPU1BIR

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Dahua DHI-ITC237-PU1B-IR Specifications

Camera
  • Sensor

    2 MP 1/2.8" CMOS

  • Lens Mount

    CS

  • Focal Length

    5 to 50mm

  • Maximum Aperture

    f/1.6

  • Zoom

    Optical: 10x

  • Lens Field of View

    Horizontal: 5.6 to 50 Degree
    Vertical: 4.2 to 37.5 Degree

  • Day/Night

    Yes

  • Minimum Illumination

    Color: 0.005 Lux
    B&W: 0 Lux

  • Shutter Speed

    1/10000 to 1/50 Seconds

  • Streaming Resolution

    1920 x 1080 at 25/30 fps

  • Supported Video Compression

    H.264, H.265

  • Multi-View Streaming

    Yes, 2 Streams

  • Automatic Gain Control

    Yes

  • Streaming

    Two-Way

  • Built-In Mic

    No

  • External Audio Input

    3.5 mm

  • Built-In Speaker

    No

  • External Audio Output

    3.5 mm

Networking

Jump to...
  • Supported Protocols

    DHCP, DNS, HTTP, IPv4/v6, NTP, TCP, UDP

System Integration

Jump to...
  • Application Programming Interface (API)

    CGI, ONVIF

  • Analytics

    License Plate Recognition

  • Event Trigger

    No

  • Event Action

    Recording, Alarm

Environmental

Jump to...
  • Operating Temperature

    -22 to 140 Degree F / -30 to 60 Degree C

  • Operating Humidity

    0 to 95%

  • IP Rating

    IP66

General

Jump to...
  • Recording Media

    microSD (up to 64 GB)

  • Pan/Tilt

    None

  • Alarm I/O

    2/2

  • I/O Connections

    1x BNC
    1x RJ45

  • IR Illuminators

    6 x 850 nm

  • IR Range

    131.23' (40m)

  • Video Management Software

    DSS, PMS, EMS

  • Internal Storage

    None

  • External Storage Options

    Local PC

  • Power Source

    PoE 802.3at (30 W)

  • Power Consumption

    PoE+: 17 W

  • Dimensions (H x W x L)

    17.6 x 9.4 x 9.2" (447 x 240 x 233mm)

  • Weight

    9.04 lb (4.1kg)

  • UPC Code

    816116028254

About Dahua DHI-ITC237-PU1B-IR

The DHI-ITC237-PU1B-IR is a license plate capture camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/2.8-in STARVIS CMOS sensor. The camera includes a 5 mm to 50 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 50 Degree to 5.6 Degree horizontal angle of view. The camera can capture license plates of vehicles traveling up to 25 mph (40 kph).

The camera can be mounted between 4 m and 30 m (13 ft and 98 ft) from where the vehicles will be traveling and can capture plates from two lanes at once. The DHI-ITC237-PU1B-IR coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management and parking solution.

Functions

License Plate Capture
The License Plate Capture camera paired with an LPC-enabled NVR or the DSS Video Management System creates a system that automatically captures and stores vehicle license plate images. During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period. License plate capture technology offers effective entrance/exit management, traffic surveillance, and parking lot monitoring.

Ultra Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Environmental
With a temperature range of -30 Degree C to +60 Degree C (-22 Degree F to +140 Degree F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Protection
Supporting +/-30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Dahua DHI-ITC237-PU1B-IR Features

  • 1/2.8-in 2 MP STARVIS CMOS Sensor
  • License Plate Capture Distance up to 40 m (131 ft)
  • Capture License Plates in up to Two (2) Lanes
  • Dual-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution
  • 5 mm to 50 mm Vari-focal Lens
  • Ultra Wide Dynamic Range (140 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 40 m (131 ft)
  • IP66 Ingress Protection

Key Features

  • 1/2.8-in 2 MP STARVIS CMOS Sensor
  • License Plate Capture Distance up to 40 m (131 ft)
  • Capture License Plates in up to Two (2) Lanes
  • Dual-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution

What's in the box:

  • DHI-ITC237-PU1B-IR 2MP 1080p Outdoor IR WDR Varifocal Ultra License Plate Bullet Camera
  • Dahua 5 Year Limited Warranty
