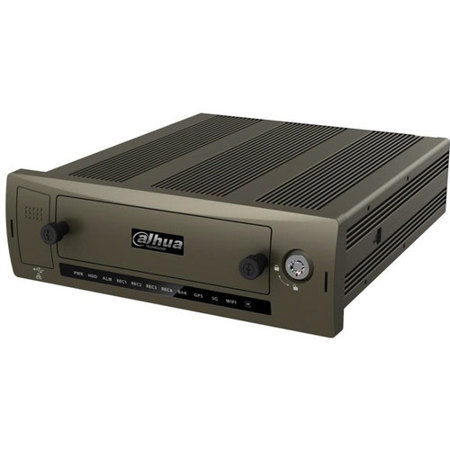

Dahua DHI-MCVR5104 Mobile 4-Ch 1080p, GPS, Wi-Fi, HD-CVI, 1x SATA, DVR, No HDD
See all dahua items

Dahua DHI-MCVR5104 Mobile Series 4-Channel 1080p, GPS, Wi-Fi, 4G, HD-CVI, 1x SATA, Digital Video Recorder, H.264, No HDD

SKU: DHDHIMCVR510
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-MCVR5104-GFW Specifications

System

System

Jump to...

  • Main Processor

    Embedded Processor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Interface

    1 x VGA
    2 x TV

  • Resolution

    800 x 600

  • Multi-Screen Display

    1/4

  • Privacy Masking

    Each Camera: 4 Rectangular Zones

  • On-Screen Display

    Camera Title, Time, Video Loss, Camera Lock, Motion Detection, and Recording

Video Detection & Alarm

Jump to...

  • Trigger Events

    Recording, PTZ, Tour, Alarm Out, Email, FTP, Buzzer, and Screen Tips

  • Video Detection

    Motion Detection, Video Loss, and Camera Blank
    MD Zones: 396 (22 x 18)

  • Alarm Input

    7 Channels

  • Relay Output

    2 Channels

Playback & Backup

Jump to...

  • Playback

    1 Channel

  • Search Modes

    Time/Date, Alarm, Motion Detection, and Exact Search (Accurate to 1 Second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom

  • Backup Modes

    USB Device and Network

Storage

Jump to...

  • Internal HDD

    1 x SATA Port
    HDD Available Separately

  • Memory Slots

    1 x microSD Card Slot

Auxiliary Interface

Jump to...

  • USB

    2 x USB 2.0 Ports

  • Serial

    1 x RS-232 Port for PC Communication and Keyboard
    1 x RS-485 Port for PTZ Control

  • CAN

    Supported

  • Heater

    Available Separately

Video and Audio

Jump to...

  • Camera Inputs

    4 x HD-CVI / NTSC Channels

  • Video Connector

    M12 A-Coded

  • Resolution

    SD: NTSC (525 TVL)
    HD-CVI: 720p/1080p

  • Audio

    4-Channel Input
    1-Channel Output

  • Two-Way Talk

    1-Channel Input
    1-Channel Output

Recording

Jump to...

  • Video Compression

    H.264 and MJPEG

  • Audio Compression

    G.711

  • Recording Rate

    Main Stream
    2 x Channels: 1080p at 30 fps, Plus
    2 x Channels: 720p at 30 fps

    Sub Stream
    D1 at 8 fps or CIF at 30 fps

  • Bit Rate

    48 to 8192 kb/s per Channel

  • Recording Modes

    Manual, Schedule (Regular, Continuous), Motion Detection, and Stop

  • Recording Intervals

    1 to 120 Minutes (Default 60 Minutes)
    Pre-Record: 1 to 30 Seconds
    Post-Record: 10 to 300 Seconds

Network

Jump to...

  • Interface

    1 x RJ45 10/100 Mb/s

  • Network Functions

    TCP/IP, UDP, DDNS, FTP, Email, Alarm Server

  • Wireless Network Interface

    Built-In 3G/4G Wi-Fi Module

  • GPS

    Built-In High-Accuracy GPS Module

  • Max. User Access

    10 Users

  • Operating Systems

    iOS, Android, Windows

Electrical

Jump to...

  • Power Supply

    6 to 36 V

  • Power Consumption

    <=15 W, with HDD

Environmental

Jump to...

  • Operating Conditions

    14 to 140 Degree F (-10 to 60 Degree C)
    10 to 95% RH, 86 to 106 kPa

  • Vibration Suppression

    5 to 200 Hz: X/Y/Z, Each Direction 5.5 Hours
    5 to 5.5 Hz: Vibration Amplitude 0.5" (12.7mm)
    5.5 to 200 Hz: 15 m/Sq.S

Standards and Certifications

Jump to...

  • IK Rating

    IK10

  • Safety

    UL

  • Mobile Applications

    EN 50155

Construction

Jump to...

  • Electromagnetic Compatibility

    FCC Part 15 Subpart B

  • Dimensions

    7 x 8.66 x 1.97" (17.8 x 22 x 5cm)

  • Weight

    4.63 lb (2.1kg) with HDD

Other

Jump to...

  • UPC Code

    816116028698

1 Accessories for Dahua DHI-MCVR5104 Mobile Series 4-Channel 1080p, GPS, Wi-Fi, 4G, HD-CVI, 1x SATA, Digital Video Recorder, H.264, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DHI-MCVR5104-GFW

MCVR5104 is the first mobile video recorder which adopts the HDCVI technology, it can support 1080P high-definition real-time recording, it can support real-time vehicle location tracking and monitoring, and all the information such as GPS and video can be uploaded by wireless network: 3G/4G/WIFI. This device can also support to connect various accessories, such as card reader, fuel sensor and emergency button. It has already pass EN50155/ISO16750 in order to meet the requirements of mobile use. This device can be used in kinds of solutions for different applications, such as city bus/school bus/taxi/police car/train/truck.

Functions

Anti-vibration
Using shock-absorbing material and structure, the new designed hard disk box can cope with varying degrees of vibration, keeping the system work normally all the time.

Wide range of power supply
As the voltage output of vehicle battery changes during driving, the wide range of power supply can protect the device.

3G/4G/WIFI
Embedded with 3G/4G/WIFI module, the device can register into a public network to connect with VMS, and can send all the information(video/audio/alarm/GPS) through wireless network.

GPS
Embedded GPS module can receive location information and upload to VMS, and the vehicle can be tracked on the electric map of VMS.

Multiple ports
With kinds of ports, like CAN, RS232, RS485, I/O, the video recorder can connect with various of accessories, such as card reader, fuel sensor, panic button and so on. System), so that the video, audio, alarm and location information can be uploaded.

Dahua DHI-MCVR5104-GFW Features

  • Support HDCVI/Analog Video input
  • H.264 dual-stream video compression
  • Support 2 ch 1080P+2 ch 720P real-time recording
  • VGA/TV simultaneous video output
  • Support 1 SATA HDD, 2 USB2.0
  • Aviation connectors adopted
  • Multiple monitoring: Web viewer, CMS (DSS) & DM

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support HDCVI/Analog Video input
  • H.264 dual-stream video compression
  • Support 2 ch 1080P+2 ch 720P real-time recording
  • VGA/TV simultaneous video output
  • Support 1 SATA HDD, 2 USB2.0
  • Aviation connectors adopted

What's in the box:

  • DHI-MCVR5104 Mobile Series 4-Channel 1080p Digital Video Recorder (No HDD)
  • Dahua 5 Year Limited Warranty
