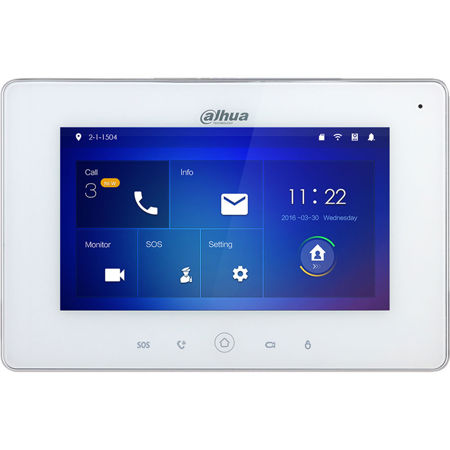

Dahua DHI-VTH5221D 7" 1024x600 Touchscreen Wi-Fi Color Indoor Monitor Station
See all dahua items

Dahua DHI-VTH5221D 7" 1024x600 Touchscreen Wi-Fi Color Indoor Monitor Station

SKU: DHDHIVH5221D
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTH5221D Specifications

System

System

Jump to...

  • Main Processor

    Embedded microprocessor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Viewing Area

    7" LCD, capacitive

  • Resolution

    1024 x 600

  • Inputs

    Touchscreen display

Interface

Jump to...

  • Audio

    Input: Omnidirectional microphone
    Output: Built-in speaker
    Two-way talk

  • Audio Compression

    G.711

  • Alarm

    Input: 6 x channels
    Output: 1 x channel

  • RS-485

    1x port

  • Memory

    microSD card slot, up to 32 GB cards supported (sold separately)

Network

Jump to...

  • Video Compression

    H.264

  • Wi-Fi

    IEEE 802.11b/g/n

  • Ethernet

    10/100 Mb/s, self-adaptive

  • Network Protocol

    TCP/IP

Certifications

Jump to...

  • Safety

    EN 60950:2006+A2:2013

  • Electromagnetic Compatibility

    FCC CFR 47 part 15 subpart B
    ANSI C63.4 - 2009
    EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    12 VDC or PoE (802.3af)

  • Power Consumption

    Standby: 1 W or less
    Operation: 8 W or less

Environmental

Jump to...

  • Operating Temperature

    14 to 131 Degree F (-10 to 55 Degree C)

  • Operating Humidity

    10 to 90%, relative

Construction

Jump to...

  • Installation

    Surface mounted

  • Dimensions

    8.46 x 5.51 x 0.83" (21.5 x 14.0 x 2.1cm)

  • Weight

    1.76 lb (0.8kg)

About Dahua DHI-VTH5221D

The DHI-VTH5221 Series indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH5221 Series indoor monitors are used as part of a video intercom solution with compatible outdoor stations.

Dahua DHI-VTH5221D Features

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Control Up to Two Doors and Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • WiFi-enabled and PoE Power Supply
  • Setup and Activate up to Six Alarm Inputs and One Alarm Output
  • Surface-mounted

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • Simplified Connection and Setup
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Control Up to Two Doors and Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)

What's in the box:

  • DHI-VTH5221D 7 " 1024x600 Touchscreen Wi-Fi Color Indoor Monitor Station
  • Dahua 5 Year Limited Warranty
