Dahua DHI-NVR0404MF Mobile 4-Ch 12MP, GPS, Wi-Fi, 4x PoE, 2x SATA, NVR, No HDD
See all dahua items

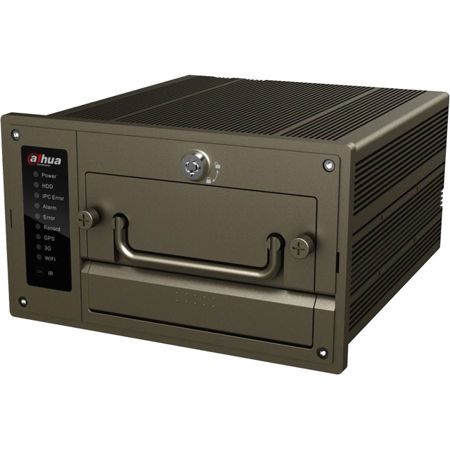

Dahua DHI-NVR0404MF Mobile Series 4-Channel 12MP, GPS, Wi-Fi, 4G, 4x PoE, 2x 2.5" SATA, Network Video Recorder, H.264, No HDD, RJ45

SKU: DHDHMFFWRJ45
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-NVR0404MF Specifications

System

System

Jump to...

  • Main Processor

    Dual-Core Embedded Processor

  • Operating System

    Embedded Linux

Display

Jump to...

  • Interface

    1 x HDMI
    1 x VGA
    2 x TV

  • Output Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Multi-Screen Display

    1/4

  • Privacy Masking

    Each Camera: 4 Rectangular Zones

  • On-Screen Display

    Camera Title, Time, Video Loss, Camera Lock, Motion Detection, and Recording

Video Detection & Alarm

Jump to...

  • Trigger Events

    Recording, PTZ, Tour, Alarm Out, Email, FTP, Buzzer, and Screen Tips

  • Video Detection

    Motion Detection, Video Loss, and Camera Blank
    MD Zones: 396 (22 x 18)

  • Alarm Input

    4 Channels

  • Relay Output

    3 Channels

Playback & Backup

Jump to...

  • Synchronous Playback

    1/4

  • Search Modes

    Time/Date, Alarm, Motion Detection, Exact Search (Accurate to 1 Second), and Smart Search

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom

  • Backup Modes

    USB Device, eSATA Device, Network, and Internal HDD

Storage

Jump to...

  • Internal HDD

    2 x SATA Ports, up to 2 TB Capacity for Each HDD
    HDDs Available Separately

  • eSATA

    1 x eSATA Port

  • Memory Slots

    1 x microSD Card Slot

Auxiliary Interface

Jump to...

  • USB

    2 x USB 3.0 Ports
    1 x USB Port

  • Serial

    1 x RS-232 Port for PC Communication and Keyboard
    1 x RS-485 Port for PTZ Control

  • G-Sensor

    Supported

  • UPS

    Supported

  • CAN

    Supported, Power Supply for PTZ

Video and Audio

Jump to...

  • IP Camera Inputs

    4 Channels

  • Audio

    1 x Mic In
    1 x Mic Out

Recording

Jump to...

  • Video Compression

    H.264 and MJPEG

  • Audio Compression

    G.711, PCM

  • Resolution

    12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p, and D1

  • Recording Rate

    Up to 200 Mb/s

  • Bit Rate

    48 to 8192 kb/s per Channel

  • Recording Modes

    Manual, Schedule (Regular, Continuous), Motion Detection, and Stop

  • Recording Intervals

    1 to 120 Minutes (Default 60 Minutes)
    Pre-Record: 1 to 30 Seconds
    Post-Record: 10 to 300 Seconds

Network

Jump to...

  • Interface

    RJ45, 10/100 BaseT

  • PoE

    4 x PoE Ports, IEEE 802.3af/at

  • Network Functions

    TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server

  • Wireless Network Interface

    Built-In 3G/4G Wi-Fi Module

  • GPS

    Built-In High-Accuracy GPS Module

  • Max. User Access

    128 Users

  • Operating Systems

    iOS, Android, Windows

Electrical

Jump to...

  • Power Supply

    6-36 V

  • Power Consumption

    <=15 W

Environmental

Jump to...

  • Operating Conditions

    -22 to 140 Degree F (-30 to 60 Degree C) with Optional Heater
    10 to 95% RH, 86 to 106 kPa

Standards and Certifications

Jump to...

  • IK Rating

    IK10

  • Safety

    UL

  • Mobile Applications

    EN 50155

  • Electromagnetic Compatibility

    FCC Part 15 Subpart B

Construction

Jump to...

  • Dimensions

    7.09 x 8.19 x 3.94" (18 x 20.8 x 10cm)

  • Weight

    6.61 lb (3kg) without HDDs

Other

Jump to...

  • UPC Code

    819290024692

1 Accessories for Dahua DHI-NVR0404MF Mobile Series 4-Channel 12MP, GPS, Wi-Fi, 4G, 4x PoE, 2x 2.5" SATA, Network Video Recorder, H.264, No HDD, RJ45

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DHI-NVR0404MF

Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution NVR (or MNVR) operates across different transportation networks. The MNVR simultaneously records up to four (4) IP cameras in real-time and provides up to four (4) simultaneous video output channels.The MNVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. MNVR technology is the ideal solution for actively monitoring and recording video feeds from mobile IP cameras. The recorder uses M12 aviation connectors to connect to cameras as an added level of stability.

Functions

Interfaces
Record and monitor video from up to four (4) IP camera inputs simultaneously. The mobile NVR supports four (4) channels of HDMI/VGA/TV simultaneous video playback, multiple alarm inputs and relay outputs, plus two-way talk connections - one (1) audio input and one (1) audio output.

Flexible Recording
The MNVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time. The HCVR monitors incoming video and can be programmed to record if motion is detected. The MNVR can also be programmed to record on a schedule or at different intervals.

Smart Search
Smart Search allows an operator to specify a region in the playback video to search for a motion detection event, saving time and manpower.

Dahua DHI-NVR0404MF Features

  • H.264 and MJPEG Compression
  • Four-channel Synchronous Real-time Playback with GRID Interface
  • HDMI/VGA/TV Simultaneous Video Ouput
  • Supports Two (2) 2.5-in. SATA HDDs, up to 2 TB each
  • Includes Four (4) PoE Ports (IEEE802.3 af/at)
  • Aviation Connectors for Increased Signal Stability
  • WiFi Module Available
  • Conforms to ONVIF Version 2.3
  • Multiple Network Monitoring Applications: Web Views, CMS, DSS

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • H.264 and MJPEG Compression
  • Four-channel Synchronous Real-time Playback with GRID Interface
  • HDMI/VGA/TV Simultaneous Video Ouput
  • Supports Two (2) 2.5-in. SATA HDDs, up to 2 TB each
  • Includes Four (4) PoE Ports (IEEE802.3 af/at)
  • Aviation Connectors for Increased Signal Stability

What's in the box:

  • DHI-NVR0404MF Mobile Series 4-Channel 12MP Network Video Recorder (No HDD/RJ45)
  • Dahua 5 Year Limited Warranty
