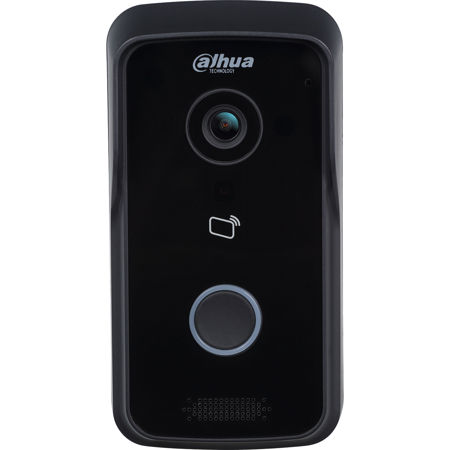

Dahua DHI-VTO2111D-WP 1MP IR Wi-Fi Residential Outdoor Station, 2.2mm Lens, IP65
See all dahua items

Dahua DHI-VTO2111D-WP 1MP IR Wi-Fi Residential Outdoor Station with 2.2mm Lens, Built-in Omnidirectional Microphone, IP65

SKU: DHDHO2111DWP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-VTO2111D-WP Specifications

System

System

Jump to...

  • Main Processor

    Embedded Micro Processor

  • Operating System

    Embedded Linux

Operation

Jump to...

  • Keypad

    Single Mechanical Button

  • Reader

    MIFARE Card

Video

Jump to...

  • Video Compression

    H.264

  • Image Sensor

    1/4-in. 1 MP CMOS Sensor

  • Image Sensor

    1/4-in. 1 MP CMOS Sensor

  • Lens

    2.2 mm

  • Angle of View

    Horizontal: 105 Degree
    Vertical: 125 Degree

  • Day/Night

    ICR

Interface

Jump to...

  • Audio

    Input: Omnidirectional Microphone
    Output: Built-in Speaker
    Two-way Talk

  • Audio Compression

    G.711

  • Door Control

    Two (2) Channels:
    One (1) Relay Out for Main Lock
    One (1) Channel Extended by Access Control Module

  • Alarm Input

    Two (2) Channels:
    One (1) Channel, Unlock Button
    One (1) Channel, Feedback

  • Relay Power

    Input: 12 VDC, 3 A
    Output: 12 VDC, 0.1 A

  • RS485

    One (1) Port

  • Tamper Switch

    One (1)

  • Memory

    Micro SD, 64 GB maximum, installed in internal memory slot

  • Management Software

    SmartPSS

Network

Jump to...

  • WiFi

    IEEE 802.11b/g/n

  • Ethernet

    10/100 Mbps, Self-adaptive

  • Network Protocol

    TC/IP

Certifications

Jump to...

  • Safety

    UL 60950-1
    EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011+
    A2: 2013
    IEC 60950-1:2005
    CAN/CSA C22.2 No. 60950-1-07

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 subpart B
    ANSI C63.4 - 2009
    EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
    EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
    EN 61000-3-3:2008, IEC 61000-4-2:2008,
    IEC 61000-4-3:2010, IEC 61000-4-4:2012,
    IEC 61000-4-5:2005, IEC 61000-4-6:2008,
    IEC 61000-4-8:2009, IEC 61000-4-11:2004

Electrical

Jump to...

  • Power

    12 VDC or PoE (IEEE 802.3af)
    Requires a separate 12 VDC power supply, or power via a PoE switch.

  • Power Consumption

    Standby: <= 1 W
    Operation: <= 7 W

Enviromental

Jump to...

  • Operating Temperature

    -22 to +140 Degree F (-30 to +60 Degree C )

  • Operating Humidity

    10% to 90%, Relative

  • Ingress Protection

    IP65

Construction

Jump to...

  • Installation

    Surface- or Flush-mount

  • Material

    Plastic

  • Dimensions

    5.31 x 2.77 x 1.35" (135 x 70.40 x 34.40mm)

  • Weight

    0.88 lb (0.40kg)

Other

Jump to...

  • UPC Code

    816116024027

About Dahua DHI-VTO2111D-WP

The DHI-VTO2111D-WP enables tenants to view and talk with visitors and remotely unlock doors all from an intuitive mobile app and an interior color indoor monitor. Each WiFi outdoor station includes a 1 MP wide angle camera, two-way talk, a built-in 13.56 MHz MIFARE card access reader and enables remote functions such as snapshot when ringing, plus video and audio message retrieval. The WiFi outdoor station is designed for single-tenant residential applications.

Dahua DHI-VTO2111D-WP Features

  • 1 MP Wide Angle Camera with Day/Night Motion Recording
  • Built-in Omnidirectional Microphone with Two-way Talk
  • Provides an Audible Alarm if Removed from the Wall
  • Records Call Sessions from the Indoor Monitor
  • Performs Door Unlock by Card or Remotely Using the Mobile App
  • Easily Leave and Retrieve Audio and Video Messages
  • View and Talk with Visitors Using the iDMSS/DMSS App
  • Simplified setup with QR Code Device Scan
  • Connect Outdoor Stations to an NVR for 24-hour Local Recording
  • IP65 Ingress Protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1 MP Wide Angle Camera with Day/Night Motion Recording
  • Built-in Omnidirectional Microphone with Two-way Talk
  • Provides an Audible Alarm if Removed from the Wall
  • Records Call Sessions from the Indoor Monitor
  • Performs Door Unlock by Card or Remotely Using the Mobile App
  • Easily Leave and Retrieve Audio and Video Messages

What's in the box:

  • DHI-VTO2111D-WP 1MP IR Wi-Fi Residential Outdoor Station
  • Dahua 3 Year Limited Warranty
