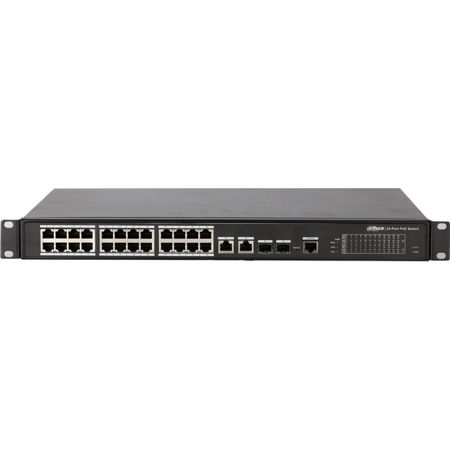

Dahua DH-PFS4226-24ET-240 24-Port Layer 2 Managed PoE Switch, 240W
See all dahua items

Dahua DH-PFS4226-24ET-240 24-Port Layer 2 Managed PoE Switch, 240W

SKU: DHDHPF4ET240
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-PFS4226-24ET-240 Specifications

General

General

Jump to...

  • Device Type

    Switch - 24 ports - managed

  • Enclosure Type

    Desktop

  • Subtype

    Fast Ethernet

  • Ports

    22 x 10/100 (PoE) + 2 x 10/100 (PoE+) + 2 x combo Gigabit SFP

  • Power Over Ethernet (PoE)

    PoE+

  • PoE Budget

    240 W

  • Performance

    Switching capacity: 8.8 Gbps
    Packet forwarding rate: 6.55 Mpps

  • MAC Address Table Size

    4K entries

  • Remote Management Protocol

    SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS

  • Compliant Standards

    IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.3at

  • Built-In Devices

    LED panel

Expansion / Connectivity

Jump to...

  • Interfaces

    22x 100Base-TX RJ-45 PoE - 30 W
    2x 100Base-TX RJ-45 PoE+ - 60 W
    2x 1000Base-T RJ-45
    2x 1000Base-X SFP

Power

Jump to...

  • Power Device

    Internal power supply

  • Voltage Required

    AC 120/230 V

Environmental Parameters

Jump to...

  • Min Operating Temperature

    14 Degree F (-10 Degree C)

  • Max Operating Temperature

    131 Degree F (55 Degree C)

  • Humidity Range Operating

    10 - 90%

Physical

Jump to...

  • Dimensions (W x D x H)

    17.3 x 11.8 x 1.7" (440.0 x 300.0 x 44.0mm)

  • Weight

    7.74 lb (3.51kg)

Other

Jump to...

  • UPC Code

    816116028889

About Dahua DH-PFS4226-24ET-240

DH-PFS4226-24ET-240 is a dedicated PoE switch designed especially for the security industry. The PoE management function displays power control and real-time port consumption. The switch provides long-distance (250 m / 820 ft) PoE transmission and a port for Hi-PoE powered devices.

Dahua DH-PFS4226-24ET-240 Features

  • Layer 2 Management PoE Switch
  • PoE budget: 240W
  • Supports PoE, PoE+, Hi-PoE
  • One Port Supports Hi-PoE (can be used with the PoE extender - PFT1300)
  • 250-Meter Long-distance PoE Transmission
  • PoE Management, PoE Setting/Event Statistics/Green PoE
  • Search and Upgrade via ConfigTool
  • Supports Web Management
  • Lightning Protection Design
  • Non-blocking Video Transmission

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Layer 2 Management PoE Switch
  • PoE budget: 240W
  • Supports PoE, PoE+, Hi-PoE
  • One Port Supports Hi-PoE (can be used with the PoE extender - PFT1300)
  • 250-Meter Long-distance PoE Transmission
  • PoE Management, PoE Setting/Event Statistics/Green PoE

What's in the box:

  • DH-PFS4226-24ET-240 24-Port Layer 2 Managed PoE Switch (240W)
  • Dahua 3 Year Limited Warranty
