Dahua 5GHz N300 Outdoor Wireless Base Station
See all dahua items

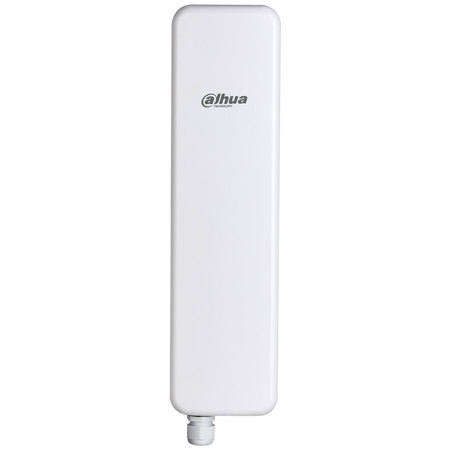

Dahua DH-PFWB5 5GHz N300 Outdoor Wireless Base Station

SKU: DHDHPFWB590N
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DH-PFWB5 Specifications

Wireless

Wireless

Jump to...

  • WLAN Standard

    IEEE802.11 a/n

  • Radio Mode

    MIMO 2 x 2

  • Radio Frequency Band

    5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

  • Transmit Power

    Up to 29 dBm (country dependent)

  • Receive Sensitivity

    Varying between -97 and -75 dBm depending on modulation

  • Channel Size

    5,10, 20, 40 MHz

  • Modulation Schemes

    802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

  • Data Rates

    802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
    802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

  • Error Correction

    FEC, Selective ARQ

  • Duplexing Scheme

    Time division duplex

  • Transmission Distance

    0-5km (recommended), max >= 7km

Antenna

Jump to...

  • Type

    Integrated directional panel antenna

  • Gain

    18dBi

Wired

Jump to...

  • Interface

    10/100 Base-T, RJ45

Software

Jump to...

  • Wireless Operating Modes

    Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT)

  • Wireless Techniques

    Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

  • Wireless Security

    WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

  • Wireless QoS

    4 queues prioritization on TDMA

  • Network Operating Modes

    Bridge, router iPv4, router IPv6

  • Network Techniques

    Routing with and without NAT, VLAN

  • WAN Protocols

    Static IP, DHCP client, PPPoE client

  • Services

    DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

  • Management

    HTTP(S) GUI, SSH, SNMP read, Telnet

  • Tools

    Site survey, link test, antenna alignment, spectrum analyzer, ping & trace

Power

Jump to...

  • Power Supply

    12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

  • Power Source

    100 - 240V AC

  • Power Consumption (max)

    4.5W

Environmental

Jump to...

  • Operating Temperature

    -30 Degree to - +70 Degree C

  • Humidity

    0 - 90 % (non-condensing)

Management

Jump to...

  • System Monitoring

    SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Jump to...

  • Certification

    FCC/CE

Internal Antenna

Jump to...

  • Frequency Range

    5.1 - 5.9 GHz

  • Gain

    18 dBi

  • Polarization

    Dual linear

  • Cross-pol Isolation

    24dBi

  • VSWR

    <1.7

  • Azimuth Beam Width (H pol)

    90 Degree

  • Azimuth Beam Width (V pol)

    90 Degree

  • Elevation Beam Width

    20 Degree

Receive Sensitivity (dBm)

Jump to...

  • 802.11n/TDMA (20/40MHz)

    -97@15 Mbps, -95@30 Mbps, -93@45 Mbps, -88@60 Mbps, -85@90 Mbps, -81@120 Mbps, -79@135 Mbps, -77@150 Mbps
    -94@30 Mbps, -92@60 Mbps, -89@90 Mbps, -85@120 Mbps, -82@180 Mbps, -78@240 Mbps, -77@270 Mbps, -75@300 Mbps

  • 802.11a

    -97@6 Mbps, -97@9 Mbps, -95@12 Mbps, -93@18 Mbps, -90@24 Mbps, -86@36 Mbps, -82@48 Mbps, -81@54 Mbps

Output Power (dBm, combined)

Jump to...

  • 802.11n/TDMA(20/40MHz)

    29@15Mbps, 28@30Mbps, 28@45Mbps, 28@60Mbps, 27@90Mbps, 27@120Mbps, 25@135Mbps, 24@150Mbps
    28@30Mbps, 28@60Mbps, 28@90Mbps, 28@120Mbps, 26@180Mbps, 26@240Mbps, 24@270Mbps, 23@300Mbps

  • 802.11a

    29@6Mbps, 29@9Mbps, 29@12Mbps, 29@18Mbps, 29@24Mbps, 27@36Mbps, 26@48Mbps, 25@54Mbps

Physical

Jump to...

  • Mounting

    Combination wall / pole mount included

  • Dimensions (L x W x H)

    14.96 x 3.93 x 1.37" (380 x 100 x 35mm)

  • Weight

    16.22 oz (460g)

Other

Jump to...

  • UPC Code

    819290021165

About Dahua DH-PFWB5

Dahua's DH-PFWB5-90n delivers the highest performance and stability available in the 5 GHz Base Station class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11 a standard devices.

The smart dynamic polling based protocol (TDMA) ensures reliable communication even in congested areas with 64 client devices connected to a base-station.

Equipped with Dahua's dual firmware image feature, remote software upgrades are assured even if a power failure interrupts the process.The device will restart using the prior firmware in the event of an upgrade failure.

The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DH-PFWB5-90n was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry.

It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges. The mounting bracket permits installation on a wall or a pole and provides up to 30 degrees of down-tilt adjustment.

Dahua DH-PFWB5 Features

  • Integrated 5 GHz (2x2) MIMO radio
  • Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
  • High performance and stability
  • IP-66 standards rated enclosure
  • Improved noise immunity
  • TDMA ensures reliable communication
  • Powerful OS
  • Dual firmware
  • Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
  • Recommended for 0-5km PTP/PTMP wireless connection(as a station in PTMP link)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Integrated 5 GHz (2x2) MIMO radio
  • Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
  • High performance and stability
  • IP-66 standards rated enclosure
  • Improved noise immunity
  • TDMA ensures reliable communication

What's in the box:

  • 5GHz N300 Outdoor Wireless Base Station
  • Dahua 1 Year Limited Warranty
