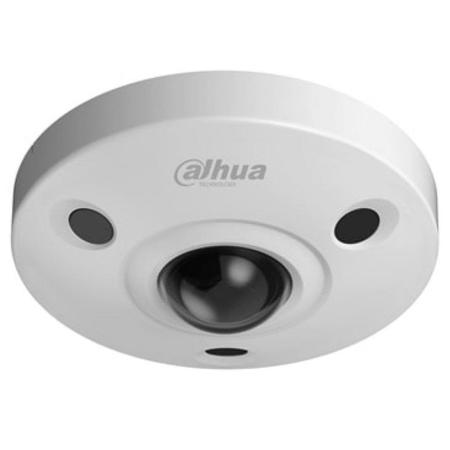

Dahua Super 6MP IR Fisheye Network Camera with 1.55mm F2.2 Manual Lens

SKU: DHEBW860

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua DH-IPC-EBW86A0N Specifications

  • Image Sensor

    1/1.8" CMOS

  • Effective Pixels

    3072 (H) x 2048 (V)

  • ROM / RAM

    128MB / 1GB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    1/3(4) - 1/100,000s

  • Minimum Illumination

    Color: 0.01Lux@F2.0;
    0Lux/F2.0 (IR on)

  • S/N Ratio

    More than 50dB

  • IR Distance

    10m (33ft)

  • IR On/Off Control

    Auto / Manual

  • IR LEDs

    3

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    1.55mm

  • Max Aperture

    F2.2

  • Angle of View

    185 Degree /185 Degree /185 Degree

  • Focus Control

    Fixed

  • Alarm In/Out

    2/1

  • Audio In/Out

    1/1 Channel In/Out (Built in Mic)

  • Compression

    H.264 / MJPEG

  • Streaming Capability

    2 Streams

  • Resolution

    6MP (3072 x 2048) / 3MP (2048 x 1536) / 1080p (1920 x 1080)

  • Frame Rate

    Main Stream 6MP / (1 - 30fps)
    Sub Stream 1 D1/CIF (1 - 30fps)

  • Bit Rate Control

    CBR / VBR

  • Bit Rate

    H.264: 40K - 8192Kbps

  • De-wrap Mode

    Original, Panoramic, Double Panoramic, 1+3, Eptz, 4 pictures

  • Day/Night

    Auto (ICR) / Color / B/W

  • BLC Mode

    BLC / HLC / DWDR

  • White Balance

    Auto / Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    3D DNR

  • Motion Detection

    Off / On (4 Zone, Rectangle)

  • Region of Interest

    Off / On (4 Zone)

  • Digital Zoom

    16x

  • Privacy Masking

    Off / On (4 Area, Rectangle)

  • Ethernet

    RJ-45 (10/100Base-T)

  • Protocol

    IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    20

  • Edge Storage

    NAS (Network Attached Storage), Local PC for instant recording, Micro SD 64GB

  • Web Viewer

    IE10

  • Management Software

    Smart PSS, DSS

  • Smart Phone

    Android, Ios

  • Certifications

    FCC (SEFD1412194-A) UL (E234884-A51-UL)

  • Power Supply

    12V DC +/-25%, PoE (af Class 0)

  • Power Consumption

    Max. 11W (12V DC, IR On)

  • Operating Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Storage Conditions

    -30 Degree C - +60 Degree C (-22 Degree F - +140 Degree F) / Less than 90% RH

  • Ingress Protection & Vandal Resistance

    IP67, IK10

  • Casing

    Metal

  • Dimensions

    150mm x 50.7mm (5.91" x 2.76" x 2.00")

  • Net Weight

    0.58Kg (1.28lb)

  • UPC Code

    856920006789

About Dahua DH-IPC-EBW86A0N

The Megapixel Fisheye camera delivers 6MP resolution. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications

Panorama
Dahua's Fisheye cameras allow for a 360-degree hemispherical image that can be dewarped in order to view individual elements separately. In environments that require broad coverage, panoramic cameras can do the job alone where several cameras would be needed otherwise. With a high resolution sensor providing a 360-degree view, blind spots are eliminated. Easy to install on a ceiling or wall, these cameras are well-suited for office buildings, parking garages, gas stations, and retail environments.

True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Smart IR
The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated IR illumination provides high performance in extreme low-light environments up to 10m (33ft).

Regions of Interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust to IP67 standards, making it suitable for indoor or outdoor environments. With its IK10 rated impact resistant design, the camera provides maximum durability against vandals making it capable of withstanding the equivalent of 55 kg (120lbs) of force.
Supporting +/-25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 8KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Streaming
With a choice of unicast or multicast streaming, bandwidth-efficient viewing, recording and third-party video management can easily be achieved. Multiple streaming enables bandwidth-efficient viewing and recording. Depending on the resolution and frame rate selected on the first stream, the second and third stream provides a copy at a lower resolution.

Dahua DH-IPC-EBW86A0N Features

  • Max 30fps@6.0MP (3072 x 2048)
  • True Day/Night
  • Smart IR 10m (33ft)
  • 2/1 Alarm in/out, 1/1 Audio in/out, Built in Mic
  • Outdoor Rated IP67
  • Vandal Resistant IK10
  • Onboard Storage

Key Features

  • Max 30fps@6.0MP (3072 x 2048)
  • True Day/Night
  • Smart IR 10m (33ft)
  • 2/1 Alarm in/out, 1/1 Audio in/out, Built in Mic
  • Outdoor Rated IP67
  • Vandal Resistant IK10

What's in the box:

  • Network Camera
  • Dahua 3 Year Limited Warranty
