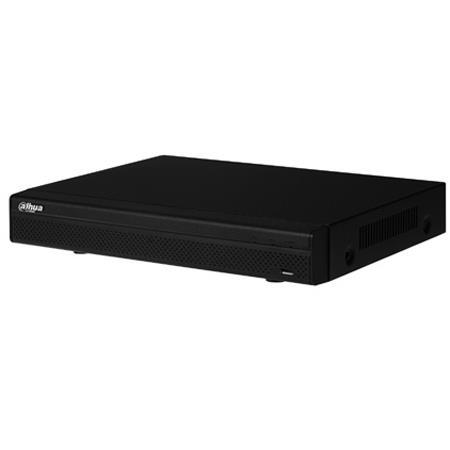

Dahua Lite 16 Channel Tribrid 720P Mini 1U HDCVI DVR, HDD Not Included
See all dahua items

Dahua Lite 16 Channel Tribrid 720P Mini 1U HDCVI DVR, 1 SATA, HDD Not Included

SKU: DHH5116HES3

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-HCVR51A16HE-S3 Specifications

  • Main Processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Camera Input

    16 channel, BNC

  • Analog

    NTSC

  • HDCVI

    1080P/720P HDCVI Camera

  • IP

    16+8 up to 5Mp

  • Audio Input

    16 channel, RCA

  • Output

    1 channel, RCA

  • Two-way Talk

    Reuse audio input/output channel 1

  • Interface

    1 HDMI, 1 VGA

  • Display Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Display Split

    1 / 4 / 8 / 9 / 16

  • Privacy Masking

    4 rectangular zones (each camera)

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Video/Audiompression

    H.264/G.711

  • Recording Resolution

    1080P(1920 x 1080)/1080N(960 x 1080)/720P(1280 x 720)/960H(960 x 576/960 x 480)/D1(704 x 576/704 x 480)/HD1(352 x 576/352 x 480)/BCIF(704 x 288/704 x 240) CIF(352 x 288/352 x 240)/QCIF(176 x 144/176 x 120)

  • Record Main Stream Rate

    1080P(1-15fps)
    1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1-30fps)

  • Record Extra Stream

    D1/CIF/QCIF(1-15fps)

  • Bit Rate

    1 - 6144Kb/s

  • Record Mode

    Manual, Schedule(Regular(Continuous), MD), Stop

  • Record Interval

    1 - 60 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22s x 18), Video Loss & Camera Blank

  • Alarm Input

    16 Channel

  • Relay Output

    3 Channel

  • Sync Playback

    1 / 4 / 9 / 16

  • Search Mode

    Time/Date, MD & Exact search (accurate to second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Internal SATA burner/Network

  • Ethernet

    RJ-45 port (10/100M/1000M)

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    1 SATA port with no HDD

  • USB Interface

    2 ports (1 Rear USB3.0, 1 Front USB2.0)

  • RS485

    1 port, For PTZ Control

  • Power Supply

    DC12V/2A

  • Power Consumption

    10W(without HDD)

  • Working Environment

    -10 Degree C - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Dimensions (W x D x H)

    Mini 1U, 12.80 x 10.04 x 2.17" (325 x 255 x 55mm)

  • Weight

    Without HDD: 3.3 lbs (1.5kg)

  • UPC Code

    816116020623

1 Accessories for Dahua Lite 16 Channel Tribrid 720P Mini 1U HDCVI DVR, 1 SATA, HDD Not Included

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DHI-HCVR51A16HE-S3

Dahua DHI-HCVR51A16HE-S3 Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • All channel 1080N/720P realtime or 1080P non-realtime recording
  • HDMI/VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • Support 1 SATA HDD up to 6TB, 1 USB3.0 & 1 USB2.0
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • All channel 1080N/720P realtime or 1080P non-realtime recording
  • HDMI/VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface & smart search
  • ONVIF Version 2.4 conformance

What's in the box:

  • HDCVI DVR
  • Dahua 3 Year Limited Warranty
