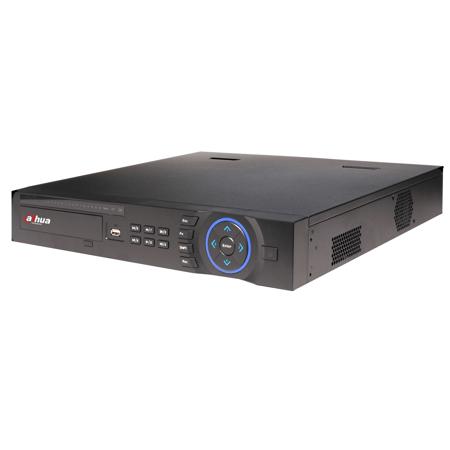

Dahua Pro 16 Channel Tribrid 720P 1.5U HDCVI DVR with 4 SATA 24TB HDD
See all dahua items

Dahua Pro 16 Channel Tribrid 720P 1.5U HDCVI DVR, 4 SATA 24TB HDD

SKU: DHH5416LV224

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-HCVR54A16L-V2-24T Specifications

  • Main Processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Video Input

    16 channel, BNC

  • Standard HDCVI

    1080P/720P HDCVI Camera

  • Standard Analog

    NTSC

  • Standard IP

    Support 2 channel 1080P/720P IP Camera

  • Audio Input

    4 channel, BNC

  • Output

    1 channel, BNC

  • Two-way Talk

    1 channel Input, 1 channel Output, BNC

  • Interface

    1 HDMI, 1 VGA, 1 TV

  • Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Display Split

    1 / 4 / 8 / 9 / 16

  • Privacy Masking

    4 rectangular zones (each camera)

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Video/Audio Compression

    H.264/G.711

  • Record Rate Main Stream

    1080P(1 - 15fps)/720P/960H/D1/HD1/2CIF/CIF(1 - 30fps)

  • Record Rate Extra Stream

    CIF/QCIF(1 - 30fps)

  • Record Bit Rate

    48 - 4096Kb/s

  • Record Mode

    Manual, Schedule(Regular(Continuous), MD), Stop

  • Record Interval

    1 - 60 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22 x 18), Video Loss & Camera Blank

  • Alarm Input

    16 Channel

  • Relay Output

    6 channel

  • Sync Playback

    1 / 4 / 9 / 16

  • Search Mode

    Time/Date, MD & Exact search (accurate to second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/eSATA Device/Internal SATA burner/Network

  • Ethernet

    RJ-45 port (10/100M/1000M)

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), with 24TB

  • External HDD

    1 eSATA port

  • USB Interface

    3 ports (2 Rear), USB2.0

  • RS232

    1 port, For PC communication & Keyboard

  • RS485

    1 port RS485 for PTZ control, 1 port RS422 for Keyboard

  • Power Supply

    AC 100 - 240 V, 50/60 Hz

  • Power Consumption

    40W(Without HDD)

  • Working Environment

    -10 Degree C - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Dimensions (W x D x H)

    1.5U: 17.32 x 16.38 x 2.68" (440 x 416 x 68mm)

  • Weight

    Without HDD: 13.22 lbs (6kg)

  • UPC Code

    816116021545

About Dahua DHI-HCVR54A16L-V2-24T

Dahua DHI-HCVR54A16L-V2-24T Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • All channel 720P realtime or 1080P non-realtime recording
  • 16 channel synchronous realtime playback, GRID interface & smart search
  • HDMI/VGA/TV simultaneous video output
  • Support 4 SATA HDDs up to 16TB, 1 eSATA, 3 USB2.0
  • 3D intelligent positioning with Dahua PTZ dome camera
  • ONVIF Version 2.3 conformance
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, ideosec, Vivotek and etc.
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • All channel 720P realtime or 1080P non-realtime recording
  • 16 channel synchronous realtime playback, GRID interface & smart search
  • HDMI/VGA/TV simultaneous video output
  • Support 4 SATA HDDs up to 16TB, 1 eSATA, 3 USB2.0

What's in the box:

  • HDCVI DVR
  • Dahua 3 Year Limited Warranty
