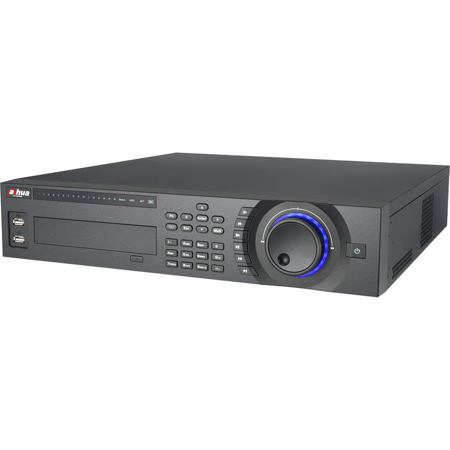

Dahua Super 16 Channel Tribrid 1080P 2U HDCVI DVR, 8 SATA, HDD Not Included
See all dahua items

Dahua Super 16 Channel Tribid 1080P 2U HDCVI DVR, 8 SATA, HDD Not Included

SKU: DHH7816S

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-HCVR78A16S Specifications

  • Main Processor

    Embedded processor

  • Operating System

    Embedded LINUX

  • Video Input

    16 Channel

  • Video HDCVI Standard

    1080P/720P HDCVI Camera

  • Analog

    NTSC

  • IP

    All channels Supports 1080P/720P IP Camera

  • Audio Input

    16 Channel, BNC

  • Output

    1 Channel, BNC

  • Two-way Talk

    1 Channel input, 1 Channel output, BNC

  • Interface

    2 HDMI, 1 VGA, 1 TV

  • Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Display Split

    1 / 4 / 8 / 9 / 16

  • Privacy Masking

    4 rectangular zones (each camera)

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Video/Audio Compression

    H.264/G.711

  • Record Main stream Rate

    1080P/720P/960H/D1/HD1/2CIF/CIF(1-30fps)

  • ExtraStream

    CIF/QCIF(1-30fps)

  • Bit Rate

    48 - 6144Kb/s

  • Recording Mode

    Manual, Schedule (Regular (Continuous), MD, Alarm), Stop

  • Recording Interval

    1-60 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Motion Detection

    Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank

  • Alarm Input

    16 Channel

  • Relay Output

    6 Channel

  • Sync Playback

    1 / 4 / 9 / 16

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/eSATA Device/Internal SATA burner/Network

  • Ethernet

    2RJ-45 port (10/100M/1000M)

  • Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    8 SATA ports (8HDDs or 6HDDs + 1CD/DVD-RW), HDD not included

  • External HDD

    1 eSATA port

  • USB

    4 ports (2 Rear), USB2.0

  • RS232

    1 port, For PC communication & Keyboard

  • RS485

    1 port RS485 for PTZ control

  • Power Supply

    AC 100 - 240 V, 50/60 Hz

  • Power Consumption

    40W (without HDD)

  • Working Environment

    14 Degree F - 131 Degree F (-10 Degree C - +55 Degree C) / 10% - 90%RH / 86 - 106kpa

  • Dimensions (W x D x H)

    2U, 17.32 x 18.11 x 3.50" (440 x 460 x 89mm)

  • Weight

    Without HDD: 14.33 lbs (6.5kg)

  • UPC Code

    816116021880

1 Accessories for Dahua Super 16 Channel Tribid 1080P 2U HDCVI DVR, 8 SATA, HDD Not Included

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Dahua DHI-HCVR78A16S

Dahua DHI-HCVR78A16S Features

  • Tribrid: Each channel Supports HDCVI/Analog/IP Video input
  • 1 HDMI/VGA/TV simultaneous video output, 1 HDMI separate output
  • HCVR78A16S: All channel 1080P realtime recording
  • H.264 dual-stream video compression
  • 4/8 channel synchronous realtime playback, GRID interface & smart search
  • Supports Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Supports 8 SATA HDDs up to 32TB, 1 eSATA, 4 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Tribrid: Each channel Supports HDCVI/Analog/IP Video input
  • 1 HDMI/VGA/TV simultaneous video output, 1 HDMI separate output
  • HCVR78A16S: All channel 1080P realtime recording
  • H.264 dual-stream video compression
  • 4/8 channel synchronous realtime playback, GRID interface & smart search
  • Supports Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.

What's in the box:

  • HDCVI DVR
  • Dahua 3 Year Limited Warranty
