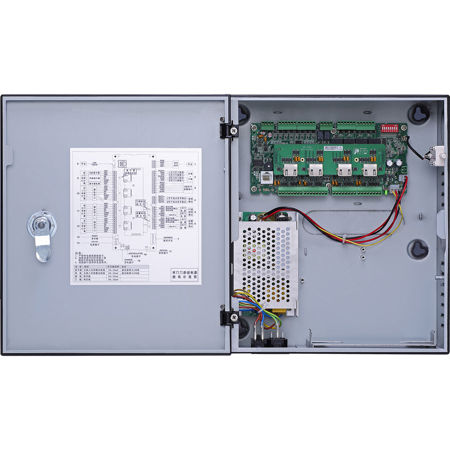

Dahua ASC1204C RJ45 & RS-485 Four-Door Access Controller Includes Power Supply
See all dahua items

Dahua ASC1204C RJ45 & RS-485 Four-Door Access Controller Includes Power Supply Cable & Battery Cable

SKU: DHIASC1204C
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua ASC1204C Specifications

System

System

Jump to...

  • Main Processor

    32-bit ARM Cortex-M3

  • Memory

    16 MB (32 MB external)

Input/Output Ports

Jump to...

  • Inputs

    Nine (9) Normally Open, Supervised Inputs, 0 VDC to 5 VDC nominal:
    Four (4) Door Sensors
    Four (4) Exit Buttons
    One (1) Alarm

  • Outputs

    Five (5) Dry Relays:
    Four (4) Lock Relays Form C, 3 A at 24 VDC maximum
    One (1) Alarm Relay, Switching Signal Type, 1 A at 24 VDC maximum

  • Readers

    Four (4) Reader Inputs
    11 VDC to 13 VDC, current limited
    300 mA, maximum per port

Capacity

Jump to...

  • Card Holders

    100000

  • Events

    150000

Functions

Jump to...

  • Unlock Modes

    Card, Fingerprint, Password, Card + Password, Card or Password, Card + Fingerprint, Fingerprint + Password, and By Period

  • User Management

    General, VIP, Guest, Patrol, Black List, Duress

  • Alarm Function

    Door time-out Alarm
    Intrusion Alarm
    Duress Alarm
    Tamper Alarm

  • Schedule Settings

    Schedule: 128 Groups
    Period: 128 Groups
    Holiday: 128 Groups

Interface

Jump to...

  • Wiegand Reader Data

    24 AWG, 5 conductor stranded cable without shield, 131.23' (40.0m), maximum

  • RS485 Reader Data

    24 AWG, 120 Ohm Impedance, 3 conductor stranded cable without shield, 328.08' (100.0m) maximum.
    Use a separate power supply to extend the RS485 reader data up to 3280.84' (1000.0m), maximum

  • Network Compatibility

    TCP/IP, RJ-45 (10/100 Mbps)

Operations

Jump to...

  • Primary Voltage Input

    100 VAC to 240 VAC, 1.5 A, 47 Hz to 63 Hz

  • Secondary Voltage Input

    9 VDC to 15 VDC, 500 mA

  • Battery Charging Circuit

    13.8 VDC at 1 A
    Use only a 12 VDC, 7000 mAh sealed rechargeable lead acid type battery (includes one 11" battery cable)

  • Operating Temperature

    -22 Degree F to +140 Degree F (-30 Degree C to +60 Degree C)

  • RTC

    Support

Certifications

Jump to...

  • Safety

    UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 EN 60950:2006+A2:2013

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 subpart B
    EN 55022:2010/AC:2011 (Class B)
    EN 55024:2010, EN 50130-4:2011
    EN 61000-6-3:2007/A1:2011
    EN 61000-3-2:2006+A1:2009+A2:2009
    EN 61000-3-3:2013
    IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007
    IEC 61000-4-4:2012, IEC 61000-4-5:2005
    IEC 61000-4-6:2008, IEC 61000-4-8:2009
    IEC 61000-4-11:2004

Physical

Jump to...

  • Dimensions

    11.02 x 12.60 x 4.49" (280.0 x 320.0 x 114.0mm)

  • Weight

    4.41 lb (2.0kg)

About Dahua ASC1204C

Dahua ASC1204C Features

  • Includes vented enclosure and pre-wired power supply
  • Removable terminal blocks support ease of wiring
  • Scalable up to 64 four-door controllers managed by SmartPSS
  • Supports controlled lock down of all connected access doors
  • Easily integrate biometrics to secure sensitive locations
  • Enable anti-passback and multi-door interlock to control traffic in high security applications

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Includes vented enclosure and pre-wired power supply
  • Removable terminal blocks support ease of wiring
  • Scalable up to 64 four-door controllers managed by SmartPSS
  • Supports controlled lock down of all connected access doors
  • Easily integrate biometrics to secure sensitive locations
  • Enable anti-passback and multi-door interlock to control traffic in high security applications

What's in the box:

  • ASC1204C RJ45 & RS-485 Four-Door Access Controller
  • Power Supply Cable
  • Vented Enclosure
  • Battery Cable (11")
  • Dahua 3 Year Limited Warranty
