Dahua DHI-ASR1101A RFID 13.56MHz Reader
See all dahua items

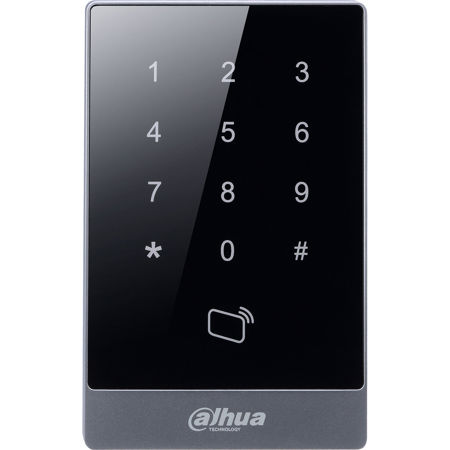

Dahua ASR1101A RFID 13.56MHz Reader

SKU: DHIASR1101A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua ASR1101A Specifications

System

System

Jump to...

  • Main Processor

    8 Bit

Read

Jump to...

  • Read Format

    13.56MHz

  • Read Range

    2.36 to 3.15" (6 to 8cm) (max.)

  • Reading time

    <0.1s

Function

Jump to...

  • Tamper Alarm

    Yes

Interface

Jump to...

  • To Controller

    RS485, Wiegand 26/34

General

Jump to...

  • Keypad

    12Keys(0-9,*,#)

  • Sensitive touch keypad

    Blue backlight

  • Beep Tone

    Buzzer

  • Ingress protection

    IP55

  • Power Supply

    9-15VDC/100mA

  • Working Environment

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Working Humidity

    <=95%

  • Dimensions (W x D x H)

    3.42 x 0.51 x 5.35" (87 x 13 x 136mm)

  • Weight

    0.55 lb (0.25Kg)

Other

Jump to...

  • UPC Code

    816116024201

About Dahua ASR1101A

Dahua ASR1101A Features

  • Wiegand26/34 bits RS-485 protocol
  • 13.56MHz (Mifare)
  • Red and Green LEDs
  • Sensitive touch keypad with blue backlight
  • Watch dog function ensure device free from halting
  • Beep Buzzer and LED indicator
  • Surface mounted installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wiegand26/34 bits RS-485 protocol
  • 13.56MHz (Mifare)
  • Red and Green LEDs
  • Sensitive touch keypad with blue backlight
  • Watch dog function ensure device free from halting
  • Beep Buzzer and LED indicator

What's in the box:

  • ASR1101A RFID 13.56MHz Reader
  • Dahua 3 Year Limited Warranty
