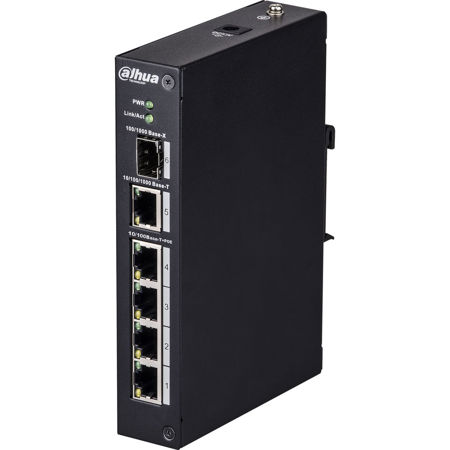

Dahua DH-PFL2106-4ET-96 96W 4-Port Long-Distance Layer 2 ePoE Switch
See all dahua items

Dahua DH-PFL2106-4ET-96 96W 4-Port Long-Distance Layer 2 ePoE Switch

SKU: DHL21064ET96

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dahua DH-PFL2106-4ET-96 Specifications

General

General

Jump to...

  • Device Type

    Switch - 4 ports - unmanaged

  • Enclosure Type

    Desktop

  • Subtype

    Fast Ethernet

  • Ports

    4 x 10/100 (PoE) + 1 x combo Gigabit SFP

  • Power Over Ethernet (PoE)

    High PoE / ePoE

  • PoE Budget

    96 W

  • Performance

    Switching capacity: 6.8 Gbps
    Packet forwarding rate: 3.57 Mpps

  • MAC Address Table Size

    8K entries

  • Features

    Flow control, layer 2 switching, 1Mbit packet buffer, lightning protection

  • Compliant Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at

Expansion/Connectivity

Jump to...

  • Interfaces

    3 x 100Base-TX RJ-45 PoE - 30 W
    1 x 100Base-TX RJ-45 HPoE - 60 W
    1 x 1000Base-T RJ-45
    1 x 1000Base-X SFP

Power

Jump to...

  • Power Device

    External power adapter

  • Voltage Required

    DC 48 - 57 V

Environmental Parameters

Jump to...

  • Min Operating Temperature

    -22 Degree F (-30 Degree C)

  • Max Operating Temperature

    149 Degree F (149 Degree C)

  • Humidity Range Operating

    10 - 90%

Physical

Jump to...

  • Dimensions

    5.9 x 3.9 x 1.2" (15 x 10 x 3cm)

  • Weight

    16.93 oz (480g)

Other

Jump to...

  • UPC Code

    816116026854

About Dahua DH-PFL2106-4ET-96

The DH-PFL2106-4ET-96 is a 4-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE and the PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.

Dahua DH-PFL2106-4ET-96 Features

  • Enhanced Power and Data Transmission Distances with ePoE
  • Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
  • Supports Third-party Cameras with Long Distance PoE Transmission, up to 250 m (820 ft)
  • Layer 2 Network ePoE Switch
  • MAC Auto Study and Aging, 8K MAC Address List Capacity
  • Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
  • Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
  • Designed for Extreme Temperature Environments

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhanced Power and Data Transmission Distances with ePoE
  • Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
  • Supports Third-party Cameras with Long Distance PoE Transmission, up to 250 m (820 ft)
  • Layer 2 Network ePoE Switch
  • MAC Auto Study and Aging, 8K MAC Address List Capacity
  • Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE

What's in the box:

  • DH-PFL2106-4ET-96 96W 4-Port Long-Distance Layer 2 ePoE Switch
  • Dahua 3 Year Limited Warranty
