Dahua LR1002-1EC Single-Port EoC Extender (Receiver)
See all dahua items

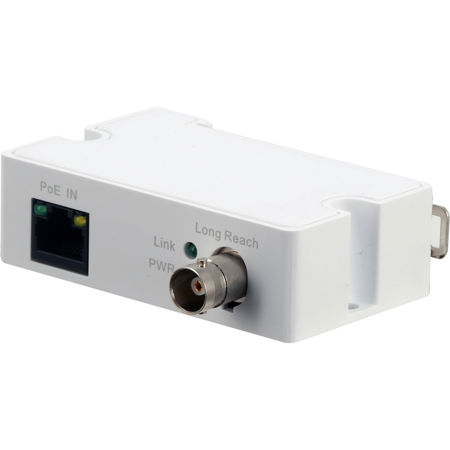

Dahua LR1002-1EC Single-Port EoC Extender (Receiver)

SKU: DHLR10021EC
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua LR1002-1EC Specifications

Electrical

Electrical

Jump to...

  • Power Consumption

    2W

  • Supported IEEE Standards

    802.3, 802.3af, 802.3at, 802.3u, 802.3x

General

Jump to...

  • Bandwidth

    100 Mb/s

  • Input Connector

    1x RJ45 Female

  • Output Connector

    2x BNC Female

  • Number of Channels

    1

  • Maximum Operating Distance

    3280' (1000m)

Environmental

Jump to...

  • Operating Humidity

    5 to 95%

  • Operating Temperature

    -22 to 149 Degree F (-30 to 65 Degree C)

Physical

Jump to...

  • Dimensions (W x D x H)

    3.11 x 2.05 x 0.91" (79 x 52 x 23mm)

  • Weight

    21.16 oz (600g)

Other

Jump to...

  • UPC Code

    819290021653

About Dahua LR1002-1EC

The product is divided into transmitter (LR1002-1ET) and receiver (LR1002-1EC). It is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable. It provides one BNC coaxial port and one RJ45 port. The product is equipped with two transmission modes which are 100Mbps and 10Mbps. It can be modified according to the transmission distance.

Dahua LR1002-1EC Features

  • Supports IEEE802.3, IEEE802.3u standards
  • Supports IEEE802.3af and IEEE802.3at power supply standards
  • Port: 1x RJ45 10/100Mbps, 1x BNC
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports IEEE802.3, IEEE802.3u standards
  • Supports IEEE802.3af and IEEE802.3at power supply standards
  • Port: 1x RJ45 10/100Mbps, 1x BNC
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable

What's in the box:

  • LR1002-1EC Single-Port EoC Extender (Receiver)
  • Dahua 3 Year Limited Warranty
