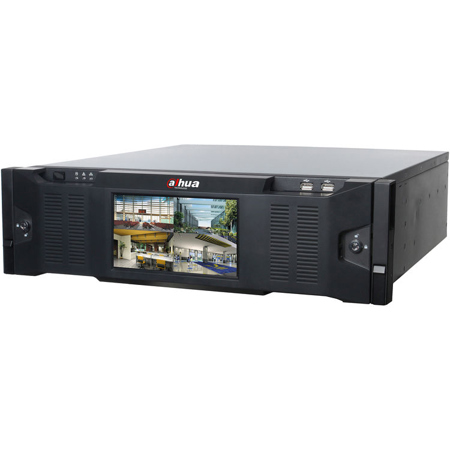

Dahua Super 4K 128 Channel RAID Network Video Recorder, 16 SATA, 4TB HDD
See all dahua items

Dahua Super 4K 128 Channel RAID Network Video Recorder, 16 SATA, 4TB HDD

SKU: DHN161284K4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua DHI-NVR6A16DR-128-4K-4T Specifications

  • Main Processor

    Intel Processors

  • Operating System

    LINUX

  • IP Camera Input

    128 Channel

  • Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

  • Display Interface

    2 HDMI (up to 3840x2160), 1 VGA

  • Resolution

    3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Multi-screen Display

    The 1st screen: 1/4/8/9/16/25/36
    The 2nd screen: 1/4/8/9/16

  • OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  • Compression

    H.265/H.264/MJPEG

  • Recording Resolution

    12MP, 8MP, 6MP, 5MP, 3MP, 1080P, 1.3MP, 720P & etc.

  • Record Rate

    256Mbps

  • Bit Rate

    1 - 20Mbps

  • Record Mode

    Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

  • Record Interval

    1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396(22 x 18), Video Loss & Camera Blank

  • Alarm Input

    16 Channel, low level effective, green terminal interface

  • Relay Output

    8 Channel, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

  • Playback

    128Mbps in Raid 5 mode
    64Mbps in single HDD mode

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Network/Internal SATA burner/eSATA Device

  • Interface

    4 RJ-45 ports (10/100/1000Mbps)

  • Ethernet Port

    4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports

  • Optical Fiber Interface

    2 Giga Optical fiber interface

  • Network Functions

    HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Supports Dahua IP camera, DVR, NVS and etc.)

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    16 SATA III ports, up to 96TB, 4TB HDD included

  • HDD Mode

    Single, Raid 0/1/5/6/10/50/60 (Supports global HDD hot-spare)

  • Front cover

    Supports hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model D&DR)

  • USB

    4 USB ports (3 USB2.0, 1 USB3.0)

  • eSATA

    1 eSATA port

  • SAS

    1 Mini SAS port, for storage expansion

  • RS232

    1 port, For PC communication & Keyboard

  • RS485

    1 port, For PTZ control

  • Power Supply

    AC100V - 240V, 50 - 60Hz , Redundant

  • Power Consumption

    <51W (Without HDD)

  • Working Environment

    -10 Degree C - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Dimension(WxDxH)

    531.9mm x 485mm(with ears) x 133.2mm (20.94" x 19.09" x 5.24")

  • Weight

    17.45kg (without HDD)

  • Installation

    Rack-mounted

  • UPC Code

    816116020487

About Dahua DHI-NVR6A16DR-128-4K-4T

Dahua DHI-NVR6A16DR-128-4K-4T Features

  • Max 128 channel IP cameras connection
  • Max 384Mbps incoming bandwidth
  • Up to 12Mp resolution preview & playback
  • 1 VGA + 2 HDMI
  • Supports 16 hot-swap HDDs
  • Supports RAID 0/1/5/6/10/50/60
  • Supports N+M hot standby
  • Supports iSCSI & Mini SAS to expand storage space
  • Compatible with Dahua SDK and seamless integrated to other platforms
  • ONVIF Version 2.4 conformance
  • Redundant power supply module adopted
  • Front LCD display

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Max 128 channel IP cameras connection
  • Max 384Mbps incoming bandwidth
  • Up to 12Mp resolution preview & playback
  • 1 VGA +2 HDMI
  • Supports 16 hot-swap HDDs
  • Supports RAID 0/1/5/6/10/50/60

What's in the box:

  • 4K NVR
  • Dahua 3 Year Limited Warranty
