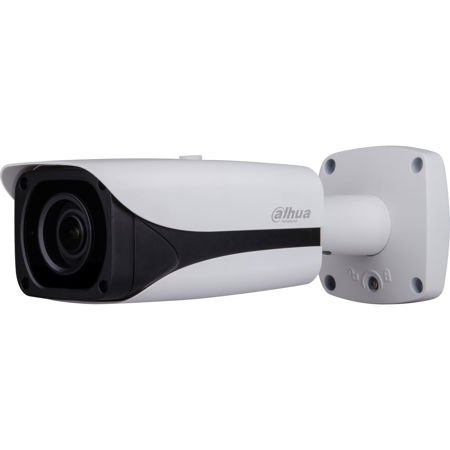

Dahua N28BB7Z Ultra Series 2MP 1080p Outdoor Starlight IR WDR Network Bullet Camera with 4.1-16.4mm F1.53 Motorized Lens, 4x Optical Zoom, IP67, IK10

SKU: DHN28BB7Z

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Dahua N28BB7Z Specifications

Camera
  • Image Sensor

    1/1.9-in. 2 MP STARVIS CMOS

  • Effective Pixels

    1920(H) x 1080(V), 2 MP

  • RAM/ROM

    1024 MB / 128 MB

  • Scanning System

    Progressive

  • Electronic Shutter Speed

    Auto, Manual, 1/3 s to 1/100,000 s

  • Minimum Illumination

    Color: 0.002 lux at F1.53 (1/3 s, 30 IRE)
    Color: 0.01 lux at F1.53 (1/30 s, 30 IRE)
    0 lux at F1.53 (with IR on)

  • S/N Ratio

    More than 50 dB

  • IR Distance

    Up to 50 m (164.04 ft)

  • IR On/Off Control

    Auto, Manual

  • IR LEDs

    Four (4)

  • Lens Type

    Motorized Auto Iris (HALL)

  • Mount Type

    Board-in

  • Focal Length

    4.1 to 16.4 mm

  • Max. Aperture

    F1.53

  • Angle of View

    Horizontal: 80 Degree to 32 Degree
    Vertical: 47 Degree to 18 Degree

  • Optical Zoom

    4x

  • Focus Control

    Motorized Auto-focus

  • Close Focus Distance

    1.64' (0.50m)

  • DORI Distance

    Wide:
    Detect (8 ppf): 187' (57m)
    Observe (19 ppf): 75' (23m)
    Recognize (38 ppf): 36' (11m)
    Identify (76 ppf): 20' (6m)

    Telephoto:
    Detect (8 ppf): 449' (137m)
    Observe (19 ppf): 180' (55m)
    Recognize (38 ppf): 89' (27m)
    Identify (76 ppf): 49' (14m)

Pan/Tilt/Rotation

Jump to...
  • Range

    Pan: 0 Degree to 360 Degree
    Tilt: 0 Degree to 90 Degree
    Rotation:0 Degree to 360 Degree

  • Compression

    Smart H.265+, H.265, Smart H.264+, H.264

  • Streaming Capability

    Three (3) Streams

  • Resolution

    1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)

  • Frame Rate

    Main Stream: 1080p at 60 fps
    Sub Stream: D1 at 60 fps
    Third Stream: 1080p at 60 fps

  • Bit Rate Control

    CBR, VBR

  • Bit Rate

    H.264: 24 Kbps to 10240 Kbps
    H.265: 14 Kbps to 6144 Kbps

  • Day/Night

    Auto (ICR), Color, B/W

  • BLC Mode

    BLC, HLC, True WDR (120 dB), SSA

  • White Balance

    Auto, Natural, Street Lamp, Outdoor, Manual

  • Gain Control

    Auto, Manual

  • Noise Reduction

    3D DNR

  • Motion Detection

    Off, On (4 Zone, Rectangle)

  • Region of Interest

    Off / On (4 Zone)

  • Advanced Features

    Electronic Image Stabilization (EIS), Smart IR, Defog

  • Digital Zoom

    16x

  • Flip

    0 Degree , 90 Degree , 180 Degree , 270 Degree

  • Mirror

    Off, On

  • Privacy Masking

    Off, On (4 Area, Rectangle)

  • Compression

    G.711a, G.711Mu, AAC, G.726

Network

Jump to...
  • Ethernet

    RJ-45 (100/1000 Base-T)

  • Protocol

    IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast / Multicast

  • Max. User Access

    10 Users / 20 Users

  • Edge Storage

    NAS (Network Attached Storage)
    Local PC for instant recording
    Mirco SD card, maximum 128 GB

  • Web Viewer

    IE, Chrome, Firefox, Safari

  • Management Software

    Smart PSS, DSS

  • Mobile Operating Systems

    iOS, Android

Certifications

Jump to...
  • Safety

    UL60950-1

  • Electromagnetic Compatibility

    FCC CFR 47 Part 15 subpart B

Electrical

Jump to...
  • Power Supply

    12 VDC, PoE+ (802.3at, Class 4)

  • Power Consumption

    < 13 W

Enviromental

Jump to...
  • Operating Temperature

    -40 to +140 Degree F (-40 to +60 Degree C) , Less than 95% RH

  • Storage Temperature

    -40 to +140 Degree F (-40 to +60 Degree C) , Less than 95% RH

  • Ingress Protection

    IP67

  • Vandal Resistance

    IK10

Construction

Jump to...
  • Casing

    Metal

  • Dimensions

    10.76 x 3.74 x 3.79" (273.20 x 95 x 96.40mm)

  • Weight

    2.47 lb (1.12kg)

  • UPC Code

    816116026380

About Dahua N28BB7Z

The Dahua 2 MP Ultra Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low-light environments. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Functions

Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.002 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera detects and captures a snapshot of human face in a defined area within a scene, and offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Intelligent Business Analysis
The built-in IVS features people counting and heat map functionality, advanced features that add business intelligence to your security system. Intelligent Analysis tracks and stores daily, weekly, monthly, and yearly people flow through a defined scene and produces a configurable report. The system uses this data to produce a Heat Map, a two-dimensional representation of data that provides an immediate visual summary of activity. People Counting and Heat Maps can identify the most active areas of a retail space providing valuable data analysis for commercial applications.

Smart Scene Adaptive (SSA) Technology
Smart Scene Adaptive (SSA) is an intelligent image technology, developed by Dahua that automatically evaluates and compensates for changes in the luminance of a scene. SSA automatically regulates the exposure parameters to improve image quality in a backlit scene, especially in scenes with traffic lights or headlights.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Environmental
With a built-in heater and a temperature range of -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F), the camera is designed for extreme temperature environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

Dahua N28BB7Z Features

  • 1/1.9-in. 2MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 60 fps Maximum Resolution
  • 4.1 mm to 16.4 mm Motorized Optical Zoom Lens
  • True WDR (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 50 m (164 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System

Key Features

  • 1/1.9-in. 2MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 60 fps Maximum Resolution
  • 4.1 mm to 16.4 mm Motorized Optical Zoom Lens

What's in the box:

  • N28BB7Z Ultra Series 2MP 1080p Outdoor Starlight IR WDR Network Bullet Camera
  • Dahua 5 Year Limited Warranty
