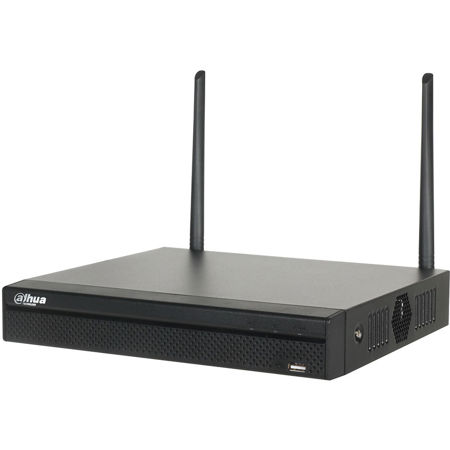

Dahua N41B1W Lite Series 4K Compact 1U H.265 Wireless 4-Channel WiFi Network Video Recorder

SKU: DHN41B1W

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua N41B1W Specifications

System
  • Main Processor

    Dual-core Embedded Processor

  • Operating System

    Embedded LINUX

Audio and Video

Jump to...
  • IP Camera Inputs

    Four (4) Channels

Display

Jump to...
  • Interface

    One (1) HDMI, One (1) VGA

  • Resolution

    HDMI: 3840 x2160, 1920 x1080, 1280 x1024, 1280 x720
    VGA: 1920 x1080, 1280 x1024, 1280 x720

  • Maximum Decoding

    One (1) Channel of 8 MP at 30 fps
    Four (4) Channels of 1080p at 30 fps

  • Multi-screen Display

    1/4

  • OSD

    Camera title, Time, Camera lock, Motion Detection, Recording

Recording

Jump to...
  • Compression

    Smart H.265+, H.265, Smart H.264+, H.264

  • Supported IP Camera Resolution

    8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, CIF

  • Maximum Incoming Bandwidth

    Wired Camera Connection: 80 Mbps
    Wireless Camera Connection: 24 Mbps

  • Bit Rate

    16 Kbps to 20 Mbps per Channel

  • Record Mode

    Manual, Schedule (Regular, Continuous), Motion Detection, Stop

  • Record Interval

    1 to 120 minutes (default: 60 minutes)
    Pre-record: 1 to 30 s
    Post-record: 10 to 300 s

Video Detection and Alarm

Jump to...
  • Trigger Events

    Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

  • Video Detection

    Motion Detection, MD Zones: 396 (22 x 18), and Tampering

Playback and Backup

Jump to...
  • Sync Playback

    1/4

  • Search Mode

    Time /Date, Motion Detection, and Exact Search (accurate to one second)

  • Playback Function

    Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom

  • Backup Modes

    USB Device, Network

Third-party Support

Jump to...
  • Third-party Support

    Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and others

Network

Jump to...
  • Interface

    One (1) RJ-45 (10/100 Mbps) Port

  • Wireless

    IEEE 802.11b/g/n, 2.4 GHz

  • Network Functions

    HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP,SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP,Alarm Server, IP Search(Support for Dahua IP cameras, DVRs, NVS)

  • Maximum User Access

    128 Users

  • Mobile Operating Systems

    IOS, Android

  • Interoperability

    ONVIF 2.4, SDK, CGI

Storage

Jump to...
  • Internal HDD

    One (1) SATA III Port, up to 6 TB capacity

  • HDD Mode

    Single

Auxiliary Interface

Jump to...
  • USB

    Two USB 2.0 Ports (One Front Panel, One Rear Panel)

Electrical

Jump to...
  • Power Supply

    12 VDC, 2 A

  • Power Consumption

    < 6.6 W (without HDD)

Environmental

Jump to...
  • Operating Conditions

    +32 to +104 Degree F (0 to +40 Degree C ), 86 to 106 kpa

  • Storage Conditions

    -4 to +158 Degree F (-20 to +70 Degree C), 0 to 90% RH

Certifications

Jump to...
  • Safety

    UL60950-1

  • Electromagnetic Compatibility (EMC)

    FCC CFR 47 Part 15 Subpart BANSI C63.4-2014 EN55032, EN55024, EN50130-4, EN60950-1

Construction

Jump to...
  • Dimensions (W x D x H)

    Compact 1U
    10.24 x 9.74 x 7.80" (260 x 247.4 x 198.2mm)

  • Weight

    Without HDD: 2.90 lb (1.3kg)

  • UPC Code

    819290025330

1 Accessories for Dahua N41B1W Lite Series 4K Compact 1U H.265 Wireless 4-Channel WiFi Network Video Recorder

  • All Accessories (1)
  • Monitors (1)

About Dahua N41B1W

Dahua's third-generation WiFi Network Video Recorder features an embedded WiFi module that supports Wireless Access Point functionality. The WiFi NVR automatically detects and connects to WiFi-enabled IP cameras without any advanced setup. The WiFi NVR uses two antennae for a strong wireless network signal, and it supports IEEE 802.11 b/g/n (2.4 GHz) operation to ensure the widest possible coverage area.

Designed as a low-cost recording option, the WiFi NVR is an ideal component of a total surveillance solution for a wide-range of applications, including home safety, retail, warehouse, education, and other industries.

The WiFi NVR coupled with Dahua's WiFi Network Cameras creates an instant wireless surveillance system, independent of a third-party VMS system. The NVR also features an open architecture to support multi-user access; and its ONVIF 2.4 compatibility enables interoperability with other IP cameras.

Functions

Wireless Access Point (WAP)
A Wireless Access Point is a device that allows wireless devices to connect to a wired network using WiFi. Wireless Access Points act as a central transmitter and receiver of wireless radio signals. This technology allows the WiFi NVR to expand the WiFi network to cover a greater distance.

4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.

Dahua N41B1W Features

  • Dual-core Embedded Processor
  • Supports IEEE 802.11b/g/n 2.4 GHz
  • Two Antennas for a Strong WiFi Signal
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Maximum 80 Mbps Incoming Bandwidth (Wired Connection)
  • Maximum 24 Mbps Incoming Bandwidth (Wireless Connection)
  • Up to 1 Channel of 8 MP or 4 Channels of 1080p Maximum Decoding

Key Features

  • Dual-core Embedded Processor
  • Supports IEEE 802.11b/g/n 2.4 GHz
  • Two Antennas for a Strong WiFi Signal
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Maximum 80 Mbps Incoming Bandwidth (Wired Connection)
  • Maximum 24 Mbps Incoming Bandwidth (Wireless Connection)

What's in the box:

  • 4-Channel 4K Wi-Fi NVR
  • 2 VDC/2 A Power Adapter
  • Dahua 5 Year Limited Warranty
