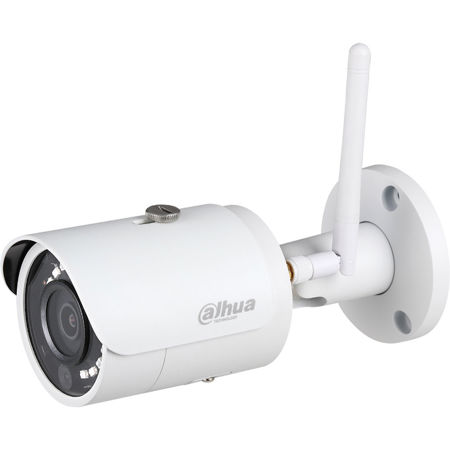

Dahua N41BD12-W Lite Series 4MP 2688x1520 Outdoor IR Wi-Fi Network Mini Bullet Camera with 2.8mm F2.0 Fixed Lens, IP67, H.265+

SKU: DHN41BD12W

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua N41BD12-W Specifications

Camera
  • Image Sensor

    1/3" 4 MP progressive scan CMOS

  • Effective Pixels (H x V)

    2688 x 1520

  • RAM

    512 MB

  • ROM

    32 MB

  • Electronic Shutter Speed

    1/100,000 to 1 sec (auto, manual)

  • Minimum Illumination

    Color: 0.53 lux at f/2.0 (1 sec, 30 IRE)
    B&W: 0 lux at f/2.0 with IR on

  • S/N Ratio

    More than 50 dB

  • IR Range

    Up to 98.04' / 30 m

  • IR Control

    Auto and manual IR on/off control

  • Number of IR LEDs

    18

  • Lens Type

    Fixed

  • Mount Type

    Board-in

  • Focal Length

    2.8mm

  • Maximum Aperture

    f/2.0

  • Field of View

    Horizontal: 106 Degree
    Vertical: 56 Degree
    Diagonal: 127 Degree

  • Focus Control

    Fixed

Adjustments

Jump to...
  • Range

    Horizontal: 0 to 360 Degree
    Vertical: 0 to 90 Degree
    Rotation: 0 to 360 Degree

  • Compression

    Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

  • Streaming Capability

    Two streams

  • Resolutions

    4 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240)

  • Frame Rates

    Main Stream:
    4 MP at 20 fps
    3 MP, 1080p, 1.3 MP, and 720p at 30 fps

    Sub Stream:
    VGA or QVGA at 30 fps

  • Bit Rate Control

    CBR, VBR

  • Bit Rate

    H.265: 9 to 8448 kb/s

  • Day/Night

    Auto IR cut filter, color, B&W

  • Backlight Compensation

    Digital WDR, BLC, HLC

  • White Balance

    Auto, natural, street lamp, outdoor, manual

  • Gain Control

    Auto, manual

  • Noise Reduction

    3D-DNR

  • Motion Detection

    4 zones, rectangular (off, on)

  • Region of Interest

    4 zones (off, on)

  • Smart IR

    Supported

  • Digital Zoom

    16x

  • Flip

    0, 90, 180, and 270 Degree

  • Mirror

    Off, on

  • Privacy Masking

    4 areas, rectangular (off, on)

Network

Jump to...
  • Ethernet

    RJ45, 10/100M

  • Wi-Fi Connectivity

    2.4 GHz, IEEE 802.11a/b/g/n/ac

  • Protocols

    HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP

  • Interoperability

    ONVIF, PSIA, CGI

  • Streaming Method

    Unicast and multicast

  • Maximum User Access

    10 / 20 users

  • Edge Storage

    NAS, local PC for instant recording, and microSD card slot (maximum 128 GB, available separately)

  • Web Viewer

    Internet Explorer, Chrome, Firefox, Safari

  • Management Software

    Smart PSS, DSS

  • Mobile OS Support

    iOS, Android

General

Jump to...
  • Power Supply

    12 VDC, 1 A

  • Power Consumption

    <6.5 W

  • Operating Conditions

    14 to 122 Degree F (-10 to 50 Degree C)
    Less than 95% RH

  • Storage Conditions

    14 to 122 Degree F (-10 to 50 Degree C)
    Less than 95% RH

  • IP Rating

    IP67

  • Casing Material

    Metal and plastic

  • Certifications

    Safety: UL 60950
    Electromagnetic Compatibility (EMC): FCC CFR 47 Part 15 Subpart B, 2AATL-8112MET

  • Dimensions

    2.76 x 6.49" (70 x 164.9mm)

  • Weight

    0.84 lb (0.38kg)

About Dahua N41BD12-W

The Dahua N41BD12-W camera offers high-resolution video and Wi-Fi connectivity in a compact and accessible package. The camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30 m (98 ft).

Image Flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90 Degree increments for better video optimization.

Protection
The camera allows for +/-10% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning, and its IP67 ingress protection make it the choice for installation in even the most unforgiving environments.

Environmental
The camera operate in extreme temperature environments, rated for use in temperatures from -10 Degree C to +50 Degree C (14 Degree F to +122 Degree F) with 95% humidity.

Dahua N41BD12-W Features

  • 1/3-in. 4 MP Progressive-scan CMOS Sensor
  • 2.4 GHz Wi-Fi (IEEE802.11a/b/g/n/ac)
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Dual-stream Encoding
  • 4 MP at 20 fps
  • 2.8 mm Fixed Lens
  • True Day/Night (ICR)
  • Maximum IR Distance 30 m (98 ft)
  • IP67 Ingress Protection

Key Features

  • 1/3-in. 4 MP Progressive-scan CMOS Sensor
  • 2.4 GHz Wi-Fi (IEEE802.11a/b/g/n/ac)
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Dual-stream Encoding
  • 4 MP at 20 fps
  • 2.8 mm Fixed Lens

What's in the box:

  • N41BD12-W Lite Series 4MP 2688x1520 Outdoor IR Wi-Fi Network Mini Bullet Camera
  • Dahua 5 Year Limited Warranty
