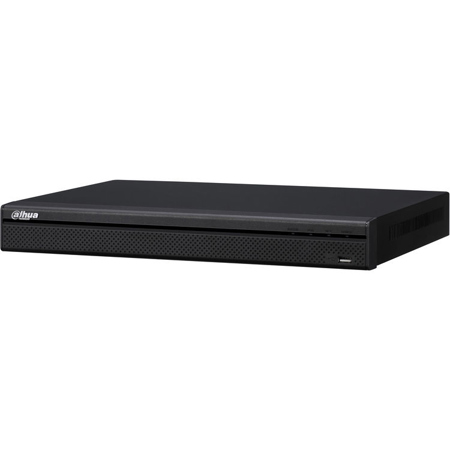

Dahua Lite 16 Channel 1U 16 PoE NVR, 2 SATA, HDD Not Included

SKU: DHN421616P

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua DHI-NVR42A16-16P Specifications

  • Main Processor

    Dual-core embedded processor

  • Operating System

    Embedded LINUX

  • Display Interface

    1 HDMI, 1 VGA

  • Display Resolution

    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Display Split

    1/4/8/9/16

  • OSD

    Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording

  • Trigger Events

    Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

  • Video Detection

    Motion Detection, MD Zones: 396 (22 x 18),
    Video Loss and Camera Blank

  • Alarm Input

    4 Channel, Low Level Effective, Green Terminal Interface

  • Relay Output

    2 Channel, NO/NC Programmable, Green Terminal Interface

  • Tracking Trigger Event

    Targeting, Zoom, Tracking, Recording, Snapshot, Alarm

  • Sync Playback

    1/4/8/16

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Network/Internal SATA burner

  • Internal HDD

    2 SATA ports, HDD not Included

  • HDD Mode

    Single

  • eSATA

    N/A

  • Front Cover

    N/A

  • USB

    2 USB Ports (1 Rear USB 2.0 , 1 Front USB 3.0 )

  • SAS

    N/A

  • RS232

    1 Port, for PC Communication and Keyboard

  • RS485

    N/A

  • Third-party Support

    Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

  • IP Camera Input

    16 Channel

  • Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

  • Compression

    Smart H.264+ / MJPEG

  • Recording Resolution

    5MP (2560 x 1920) /3MP (2048 x 1536) / 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480)

  • Record Rate

    200Mbps

  • Bit Rate

    48 - 8192kbps per channel

  • Record Mode

    Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop

  • Record Interval

    1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Network Interface

    1 RJ-45 port (10/100/1000Mbps)

  • PoE

    16 ports (IEEE802.3at/af)

  • Network Functions

    HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS)

  • Optical Fiber Interface

    N/A

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android

  • Interoperability

    ONVIF 2.4, CGI

  • Power Supply

    Single, AC 100 - 240V, 47/63Hz

  • Power Consumption

    NVR: <30W (Without HDD)
    PoE: Max 25.5W for single port, 130W in total

  • Operating Conditions

    -10 Degree C - +55 Degree C (+14 Degree F - +131 Degree F), 0 - 90% RH, 86 - 106kpa

  • Storage Conditions

    -20 Degree C - +70 Degree C (-4 Degree F - +158 Degree F), 0 - 90% RH

  • Dimension(WxDxH)

    375mm x 331mm x 53mm (14.8" x 13.0" x 2.1")

  • Net Weight

    2.5kg (5.5 lb) (without HDD)

  • Installation

    Rack Mount

  • Certifications

    SEFD1410127-A (FCC)
    E234884-A22-UL (UL)

  • UPC Code

    856920006925

1 Accessories for Dahua Lite 16 Channel 1U 16 PoE NVR, 2 SATA, HDD Not Included

  • All Accessories (1)
  • Monitors (1)

About Dahua DHI-NVR42A16-16P

Dahua's Lite Series 16 Channel NVR is one of the NVRs which have the most reasonable price and best quality for IP video surveillance applications. The NVR provides up to 5MP resolution. It supports 16 channels of IP camera inputs, 16 local live-view channels, and 16 playback channels. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back-up storage.

Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a videomanagement system (VMS). Its open architecture supports multiuser access and is compatible with ONVIF 2.4, enabling interoperability when combined with IP cameras.

4MP/5MP Resolution
The NVR supports 4MP HD resolution (2560 x 1440) and 5MP HD resolution (2560 x 1920) for recording, live viewing and playback.

Intelligent Video System (IVS)
Working with built-in intelligent video analytics IP cameras, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

Plug & Play
The Smart Add function benefits users with basic IP video surveillance knowledge as the NVR automatically finds your devices making it as easy as using an analog system. Note: the NVR and cameras must be on the same router.

Smart H.264+
Delivering high quality video without straining the network, Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing a savings of up to 70% of bandwidth and storage when compared with standard H.264.

Dahua DHI-NVR42A16-16P Features

  • Dual-core Embedded Processor
  • Up to 16 IP Camera Inputs
  • Smart H.264+ / MJPEG Dual Codec Decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • 16 Channel Synchronous Realtime Playback
  • 2 SATA HDDs, Up to 12TB
  • IPC UPnP, 16 PoE Ports
  • 3D Intelligent Positioning with Dahua PTZ Cameras

Key Features

  • Dual-core Embedded Processor
  • Up to 16 IP Camera Inputs
  • Smart H.264+ / MJPEG Dual Codec Decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • 16 Channel Synchronous Realtime Playback

What's in the box:

  • NVR
  • Dahua 3 Year Limited Warranty
