1/3" 4 MP Progressive-scan CMOS
2688(H) x 1520(V)
128 MB / 128 MB
Progressive
Auto, Manual; 1/3 s to 1/100000 s
Color: 0.008 lux at F1.6
0 lux at F1.6 with IR on
Distance up to 98.43' (30m)
Auto, Manual
Two (2)
Fixed-focal
Fixed Aperture
M12
2.8mm
F1.6
Horizontal: 102.0 Degree
Vertical: 55.0 Degree
Diagonal: 121.1 Degree
2.95' (0.90m)
Lens: 2.8mm:
Detect (8 ppf): 183.73' (56m)
Observe (19 ppf): 73.49' (22.40m)
Recognize (38 ppf): 36.75' (11.20m)
Identify (76 ppf): 18.37' (5.60m)
Pan: 0 Degree to 360 Degree
Tilt: 0 Degree to 78 Degree
Rotation: 0 Degree to 360 Degree
Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG
Two (2) Streams
2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Main Stream: 2688 x 1520 at 20 fps or 2560 x 1440 at 30 fps
Sub Stream: D1 (704 x 480) at 30 fps
CBR/VBR
H.264: 32 K to 6144 Kbps
H.265: 12 K to 6144 Kbps
Auto (ICR), Color, B/W
BLC, HLC, True WDR (120 dB)
Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Auto, Gain Priority, Shutter Priority, Manual
3D DNR
Off, On (4 Zones, Rectangle)
Off, On (4 Zones)
Yes
16x
0 Degree , 90 Degree , 180 Degree , 270 Degree
Off, On
Off, On (4 Areas, Rectangle)
RJ-45 (10/100 Base-T)
HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec
Unicast, Multicast
20
Network Attached Storage (NAS)
FTP, SFTP
Micro SD Card slot (maximum 256GB)
IE, Chrome, Firefox
Smart PSS, DSS, DMSS
IOS, Android
G.711A, G.711Mu, G.726, AAC
Built-in Microphone
EN 60950-1
FCC CFR 47 Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
12 VDC +/- 30%, or PoE (IEEE802.3af Class 0)
< 6.6 W
-40 Degree F to +140 Degree F (-40 Degree C to +60 Degree C), Less than 95% RH
-40 Degree F to +140 Degree F (-40 Degree C to +60 Degree C)
IP67
Metal
4.80 x 3.90" (121.90 x 99.10mm)
17.6 oz (498.9g)

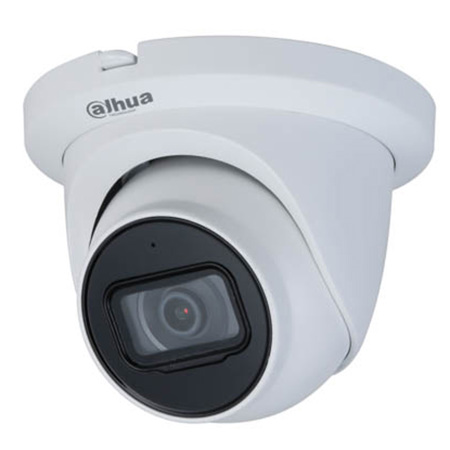

The Dahua 4 MP Lite Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Functions
Starlight Technology
For challenging low-light applications, Dahua's Basic Starlight Technology offers best-in-class light sensitivity, capturing details in low light down to 0.008 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations and intrusion detection. A camera with IVS quickly and accurately responds to monitoring events in a specific area and offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.
Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high-performance in extreme low-light environments up to 30 m (98.43 ft).
ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as -40 Degree F (-40 Degree C) without the need for an internal heater. The lack of a heater reduces the camera's power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.
Environmental
Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
