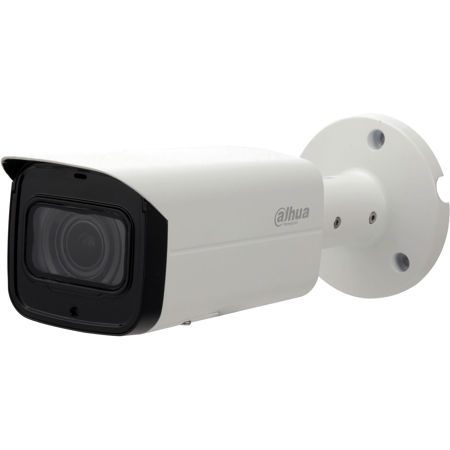

Dahua N52BF3Z Pro Series 5MP 1080p Outdoor WDR Starlight IR Vari-Focal Network Bullet Camera with 2.7-13.5mm F1.6 Motorized Lens

SKU: DHN52BF3Z

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dahua N52BF3Z Specifications

Camera
  • Sensor

    5 MP 1/2.7" CMOS

  • Focal Length

    2.7 to 13.5mm

  • Maximum Aperture

    f/1.6

  • Zoom

    Optical: 5x
    Digital: 16x

  • Lens Field of View

    Horizontal: 95 to 27 Degree
    Vertical: 70 to 20 Degree

  • IR Cut Filter

    Mechanical

  • Day/Night

    Yes

  • Minimum Illumination

    Color: 0.008 Lux
    B&W: 0 Lux

  • Shutter Speed

    1/100000 to 3 Seconds

  • Streaming Resolution

    2592 x 1944 at 20 fps (10.24 Mb/s H.264)
    1304 x 1296 at 30 fps (10.24 Mb/s H.264)

  • Supported Video Compression

    H.264, H.264+, H.265, H.265+, MJPEG

  • Multi-View Streaming

    2 Streams

  • Automatic Gain Control

    Yes

Networking

Jump to...
  • Supported Protocols

    ARP, Bonjour, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP

System Integration

Jump to...
  • Analytics

    Tampering, Storage Error, Network Error, Tripwire, Intrusion

  • Event Trigger

    Yes

  • Event Action

    Recording, Notification, Alarm

System Requirements

Jump to...
  • Mobile Operating Systems

    iOS, Android

Enviromental

Jump to...
  • Operating Temperature

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Storage Temperature

    -22 to 140 Degree F (-30 to 60 Degree C)

  • Operating Humidity

    0 to 95%

  • IP Rating

    IP67

General

Jump to...
  • Memory

    512 MB RAM / 32 MB Flash

  • Recording Media

    microSD (up to 128 GB)

  • Pan/Tilt

    Manual Pan: 360 Degree
    Manual Tilt: 90 Degree

  • I/O Connections

    1x RJ45

  • IR Illuminators

    4 x 850 nm

  • IR Range

    197' (60.05m)

  • Video Management Software

    Smart PSS, DSS

  • External Storage Options

    Local PC, NAS

  • Power Source

    DC, PoE 802.3af (15 W)

  • Power Consumption

    12.6 W

  • Dimensions (H x W x L)

    9.6 x 3.1 x 3.0" (244.1 x 79 x 75.9mm)

  • Weight

    1.76 lb (0.8kg)

  • UPC Code

    819290021271

About Dahua N52BF3Z

The Dahua 5 MP Pro Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Starlight Technology
For challenging low-light applications, Dahua's Basic Starlight Technology offers best-in-class light sensitivity, capturing details in low light down to 0.008 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Wide Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations and intrusion detection. A camera with IVS quickly and accurately responds to monitoring events in a specific area and offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Smart IR Technology
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high-performance in extreme low-light environments up to 30 m (98 ft).

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30 Degree C to +60 Degree C (-22 Degree F to +140 Degree F) with 95% humidity. The camera allows for +/-10% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Dahua N52BF3Z Features

  • 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
  • Dual Stream Encoding with Smart H.265+ and H.264 Dual Codecs
  • 5 MP at 15 fps or 3 MP at 30 fps, Maximum Resolution
  • Starlight Technology for Low Light Sensitivity
  • 2.7 mm to 13.5 mm Motorized Zoom Lens
  • True WDR (120 dB) and Day/Night (ICR)
  • Maximum IR LED Length 60 m (197 ft) with Smart IR
  • Intelligent Video System
  • IP67 Ingress Protection
  • PoE Support

Key Features

  • 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
  • Dual Stream Encoding with Smart H.265+ and H.264 Dual Codecs
  • 5 MP at 15 fps or 3 MP at 30 fps, Maximum Resolution
  • Starlight Technology for Low Light Sensitivity
  • 2.7 mm to 13.5 mm Motorized Zoom Lens
  • True WDR (120 dB) and Day/Night (ICR)

What's in the box:

  • N52BF3Z Pro Series 5MP 1080p Outdoor WDR Starlight IR Vari-Focal Network Bullet Camera
  • Dahua 5 Year Limited Warranty
