Quad-core embedded processor
Embedded LINUX
2 HDMI (1 HDMI up to 3840 x 2160, Different Source ), 1 VGA
3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
1st Screen: 1 / 4 / 8 / 9 / 16 / 25 / 36
2nd Screen: 1 / 4 / 8 / 9 / 16
Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Motion Detection, MD Zones: 396 (22 18),
Video Loss and Camera Blank
16 Channel, Low Level Effective, Green Terminal Interface
6 Channel, NO/NC Programmable, Green Terminal Interface
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm
1 / 4 / 8 / 16 / 25 / 36
Time/Date, Alarm, MD & Exact search (accurate to second)
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
USB Device/Network/Internal SATA burner/eSATA Device
8 SATA III Ports, HDD not Included
Single, Raid 0 / 1 / 5 / 6 / 10
1 eSATA port
N/A
2 Ports (1 Rear USB 3.0, 1 Front USB 2.0)
N/A
1 Port, for PC Communication and Keyboard
1 Port, for PTZ Control
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
32 Channel
1 Channel Input, 1 Channel Output, RCA
H.265 / H.264 / MJPEG / MPEG4
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D1
320Mbps
16kbps - 20Mbps for per Channel
Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec
2 RJ-45 ports (10/100/1000Mbps)
2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS), P2P
N/A
128 Users
iPhone, iPad, Android
ONVIF 2.4, CGI Conformant
Single, AC 100-240V, 50/60 Hz
NVR: 16.7W (Without HDD)
-10 Degree C - +55 Degree C (+14 Degree F - +131 Degree F), 86 - 106kpa
-20 Degree C - +70 Degree C (-4 Degree F - +158 Degree F), 0 - 90% RH
2U, 440mm x 455.1mm x 94.9mm (17.3" x 17.9" x 3.7")
6.55kg (14.4 lb) (without HDD)
9.5kg (20.94 lb)
Rack Mount (rack mount ears included)
VFHKEM1607001085IT
E234884-A108-UL
816116020203

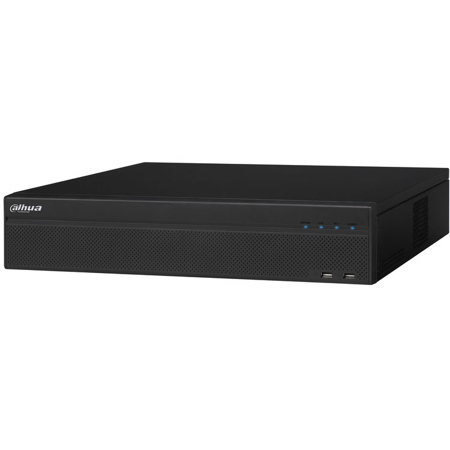

Dahua's Pro Series 32 Channel network video recorder offers excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage.
Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multiuser access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
RAID 0/1/5/6/10
Offering a balance between storage performance, storage capacity, and data integrity, the NVR features RAID 0/1/5/6/10 for faster and safer recording.
Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.
Heat Map
The NVR's Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.
Smart Tracking
The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
