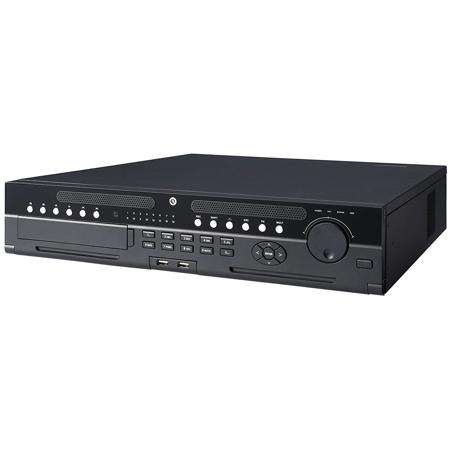

Dahua Super 4K 64 Channel Raid Intel NVR, 8 SATA, 6TB HDD
See all dahua items

Dahua Super 4K 64 Channel Raid Intel NVR, 8 SATA, 6TB HDD

SKU: DHN68644K6

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Dahua DHI-NVR6A08-64-4K-6T Specifications

  • Main Processor

    Intel Processors

  • Operating System

    LINUX

  • IP Camera Input

    64 channel

  • Two-way Talk

    1 Channel Input, 1 Channel Output, RCA

  • Display Interface

    2 HDMI (up to 3840x2160), 1 VGA

  • Display Resolution

    3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

  • Multi-screen Display

    The 1st screen: 1 / 4 / 8 / 9 / 16 / 25 / 36
    The 2nd screen: 1 / 4 / 8 / 9 / 16

  • OSD

    Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording

  • Compression

    H.264 / MJPEG

  • Recording Resolution

    12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

  • Record Rate

    256Mbps

  • Bit Rate

    1 - 20Mbps

  • Record Mode

    Manual, Schedule (Regular (Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

  • Record Interval

    1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec

  • Trigger Events

    Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

  • Video Detection

    Motion Detection, MD Zones: 396 (22 18),
    Video Loss and Camera Blank

  • Alarm Input

    16 channel, Low Level Effective, Green Terminal Interface

  • Relay Output

    8 channel , Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

  • Playback

    128Mbps in Raid 5 mode
    64Mbps in single HDD mode

  • Search Mode

    Time/Date, Alarm, MD & Exact search (accurate to second)

  • Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

  • Backup Mode

    USB Device/Network/Internal SATA burner/eSATA Device

  • Network Interface

    2 RJ-45 ports (10/100/1000Mbps)

  • Ethernet Port

    2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports

  • Network Functions

    HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS and etc.)

  • Max. User Access

    128 users

  • Smart Phone

    iPhone, iPad, Android, Windows Phone

  • Internal HDD

    8 SATA III Ports, with 6TB

  • HDD Mode

    Single, Raid 0 / 1 / 5 / 6 / 10 / 50 / 60 (Support global HDD hot-spare)

  • USB

    4 USB Ports (3 USB 2.0, 1 USB 3.0)

  • eSATA

    1 eSATA port

  • RS232

    1 Port, for PC Communication and Keyboard

  • RS485

    1 Port, for PTZ Control

  • Power Supply

    AC110V-240V, 50-60Hz

  • Power Consumption

    <40W (Without HDD)

  • Working Environment

    -10 Degree C - +55 Degree C / 10% - 90%RH / 86 - 106kpa

  • Dimension(WxDxH)

    486mm(with ears) x 454.9mm x 91mm (19.13" x 17.91" x 3.58")

  • Weight

    9kg (without HDD)

  • Installation

    19" Rack-Mounted

  • UPC Code

    816116020432

About Dahua DHI-NVR6A08-64-4K-6T

Dahua DHI-NVR6A08-64-4K-6T Features

  • Max 64 channel IP cameras connection
  • Max 384Mbps incoming bandwidth
  • Up to 12MP Resolution Preview & Playback
  • 1VGA+2HDMI
  • Support RAID 0/1/5/6/10/50/60
  • Support N+Mhot standby
  • 8 SATA III ports, up to 48TB
  • Support iSCSI to expand storage space
  • Compatible with Dahua SDK and seamless integrated to other platforms
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,Dynacolor, Honeywell, Panasonic,Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Max 64 channel IP cameras connection
  • Max 384Mbps incoming bandwidth
  • Up to 12MP Resolution Preview & Playback
  • 1VGA+2HDMI
  • Support RAID 0/1/5/6/10/50/60
  • Support N+Mhot standby

What's in the box:

  • NVR
  • Dahua 3 Year Limited Warranty
