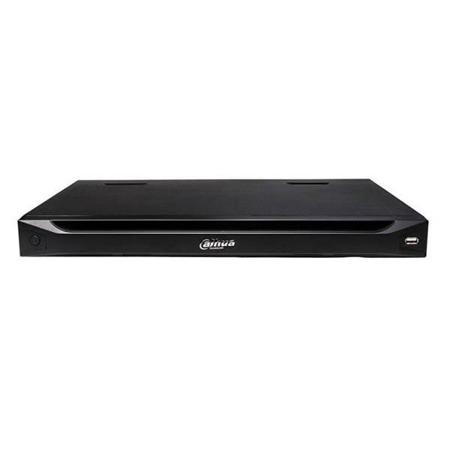

Dahua NVD0405DH-4K 4-Channel Ultra HD Network Video Decoder
See all dahua items

Dahua NVD0405DH-4K 4-Channel Ultra HD Network Video Decoder

SKU: DHNVD405DH4K

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dahua NVD0405DH-4K Specifications

System

System

Jump to...

  • Processor

    Intel x86 processor

  • Operating System

    LINUX

Performance

Jump to...

  • Video Format

    H.265/H.264/MPEG4/ MJPEG

  • Audio Formats

    PCM/G.711

  • Decoding Capacity Separately

    Port 1: 1CH@12MP/1CH@4K/; 4CH@1080P/; 9CH@720P/16CH@D1

    Port 2: 1CH@12MP/1CH@4K/; 4CH@1080P/; 9CH@720P/16CH@D1

    Port 3: 1CH@12MP/1CH@4K/; 4CH@1080P/; 9CH@720P/16CH@D1

    Port 4: 1CH@12MP/1CH@4K/; 4CH@1080P/; 9CH@720P/ 16CH@D1

  • Total Video Decoding

    4CH@12MP/4CH@4K/16CH@1080P/36CH@720P/64CH@D1

  • Decoding Resolution

    12MP/8MP/6MP/5MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF

  • Video Frame Rate

    PAL:1-25fps ,NTSC:1-30fps

  • Video Output

    4ch@VGA, 4ch@HDMI, 4ch@BNC

  • Video Input

    1ch@HDMI

  • Audio Output

    HDMI, 4 BNC

  • Audio Input

    1ch@HDMI

  • Bi-directional Talk

    1 pair, BNC in / BNC out (2Vrms, 10K ohms)

  • Alarm Input

    4ch

  • Alarm Output

    4ch relay out (30VDC 1A, 125VAC, 0.5A)

  • Communication Interface

    1 RJ45 network port (10M/100M/1000M); 1 RS232; RS485

General

Jump to...

  • Power Supply

    DC12V, 3.3A

  • Power Consumption

    <=20W

  • Working Temperature

    14 to 131 Degree F (-10 to +55 Degree C)

  • Working Humidity

    10% - 95%, 86Kpa - 106Kpa

  • Dimensions (W x D x H)

    17.3 x 11.8 x 1.66' (440 x 300 x 42.1mm)
    Rack Size: 1 RU

  • Weight

    7.16 lb (3.25Kg)

Other

Jump to...

  • UPC Code

    816116022818

About Dahua NVD0405DH-4K

Dahua NVD0405DH-4K Features

  • H.265/H.264/MPEG4 video decoding
  • 4ch@12M/4ch@4K/16ch@1080P/64ch@D1 decoding ability
  • 1ch HDMI input, 4ch HDMI/VGA/BNC output, HDMI support Ultra HD 4K output
  • Support up to 4 video-wall display units, support configuration of 1 x1,2 x1,2 x2
  • Support audio, alarm, bi-directional talk, RS485

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • H.265/H.264/MPEG4 video decoding
  • 4ch@12M/4ch@4K/16ch@1080P/64ch@D1 decoding ability
  • 1ch HDMI input, 4ch HDMI/VGA/BNC output, HDMI support Ultra HD 4K output
  • Support up to 4 video-wall display units, support configuration of 1 x1,2 x1,2 x2
  • Support audio, alarm, bi-directional talk, RS485

What's in the box:

  • NVD0405DH-4K 4 Channel Ultra HD Network Video Decoder
  • Dahua 3 Year Limited Warranty
